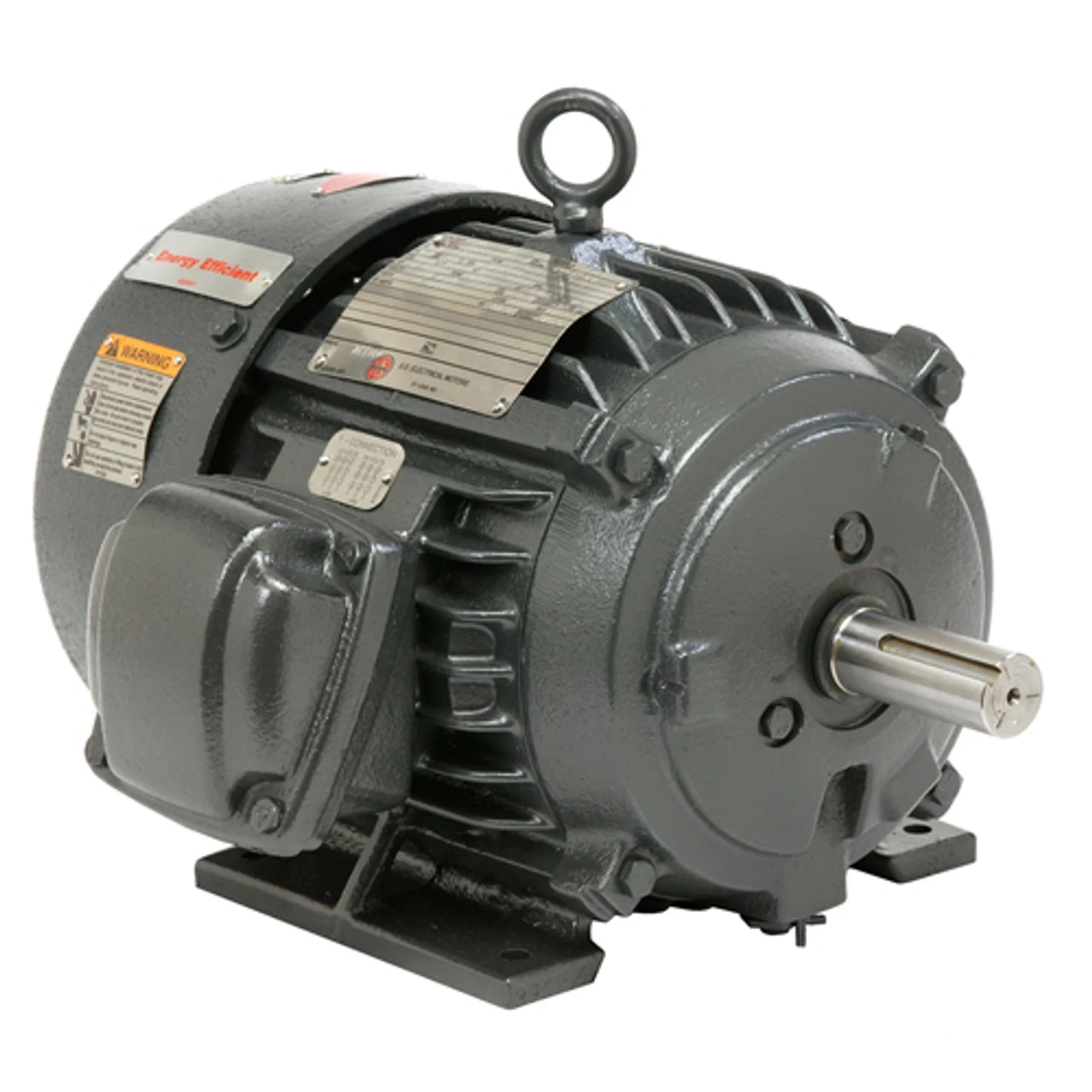

YC30P2B Nidec 30 Hp 1800 RPM 286T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor
Original price was: $354.00.$99.99Current price is: $99.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 30 hp 1800 RPM, 69.0/34.0 amps 230/460 Volts 60 Hz Three Phase Motor

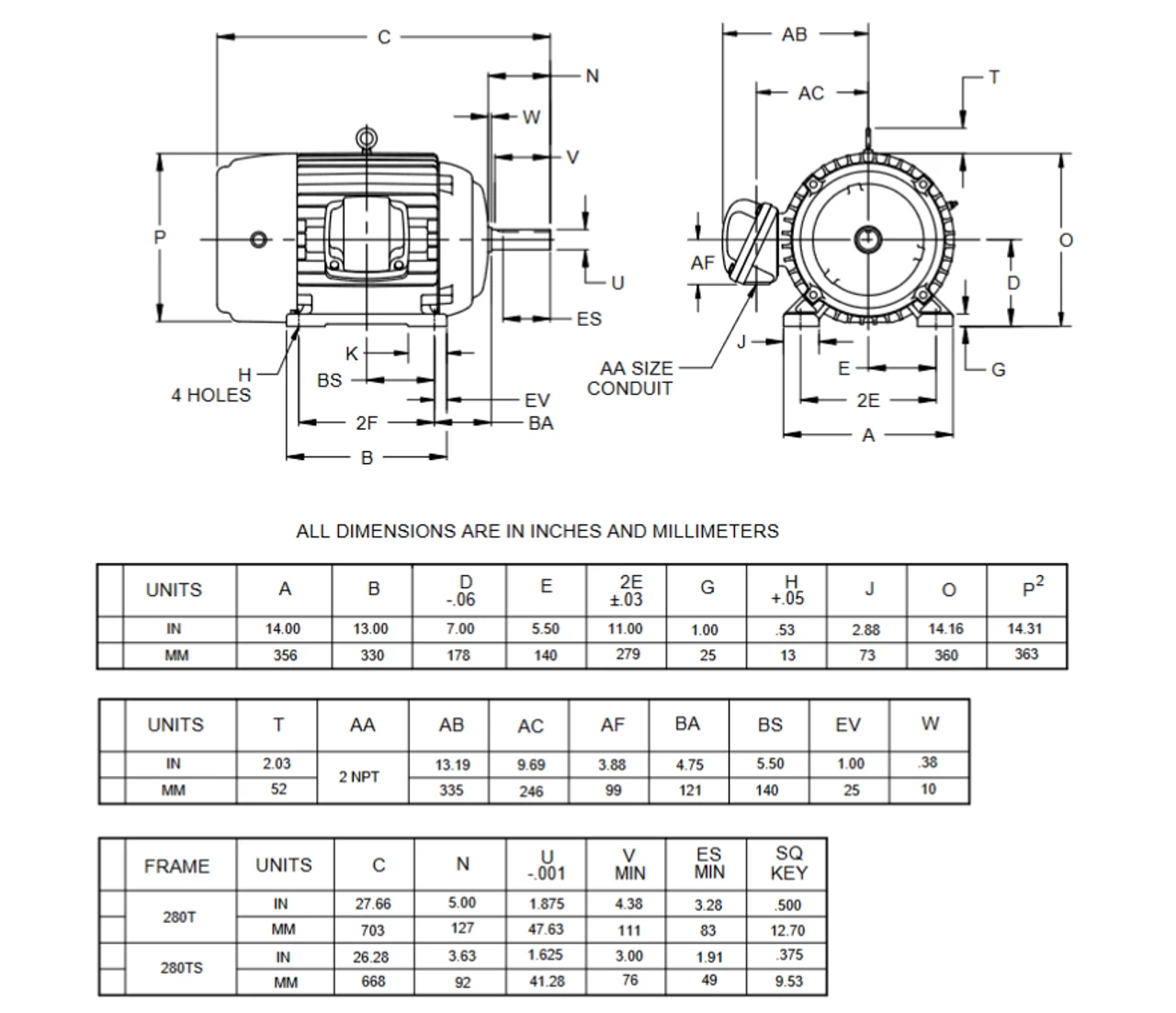

- NEMA 286T Cast Iron frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose, Corrosion resistant, Division 1 hazardous location motor for class 1 group D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. FE81
