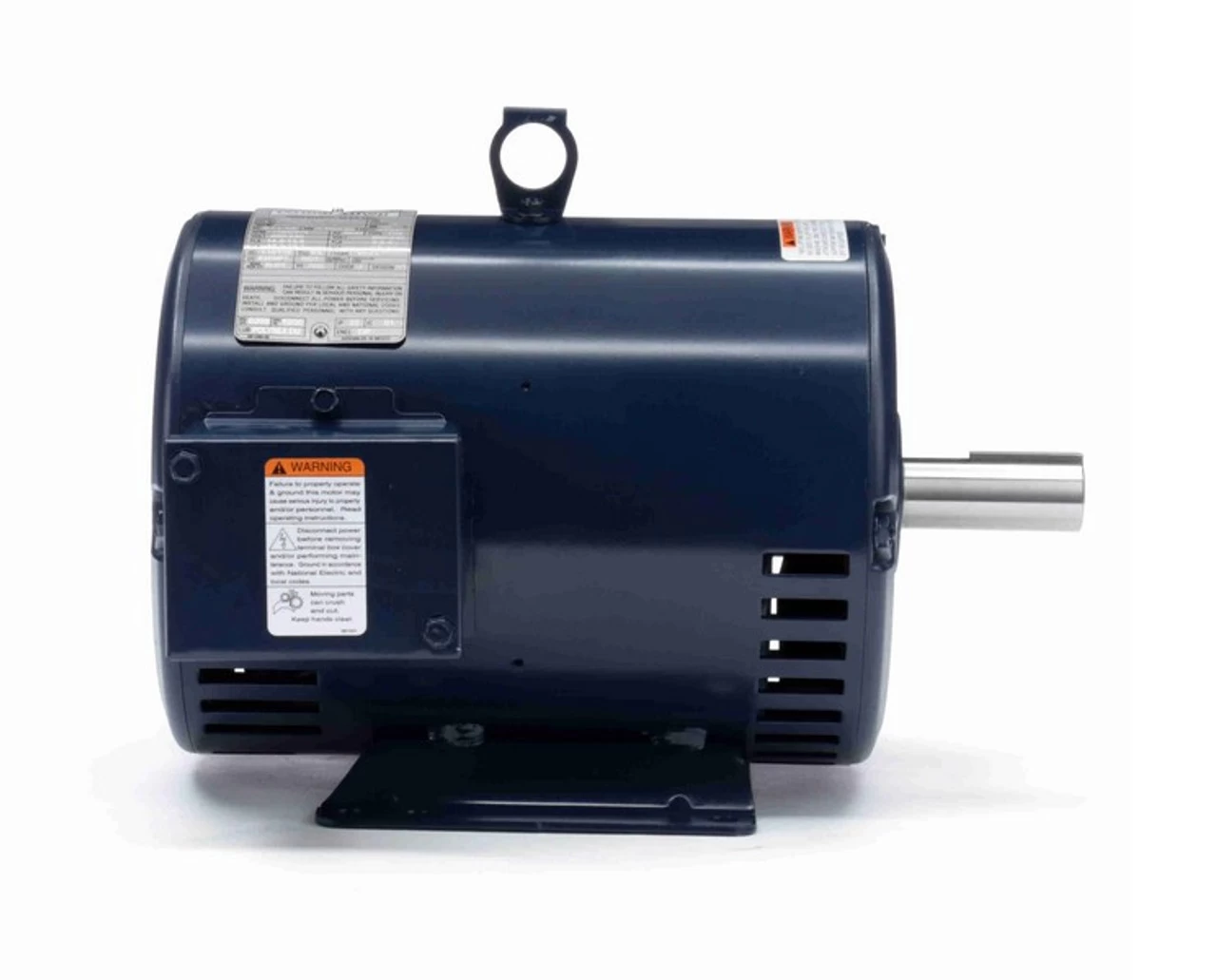

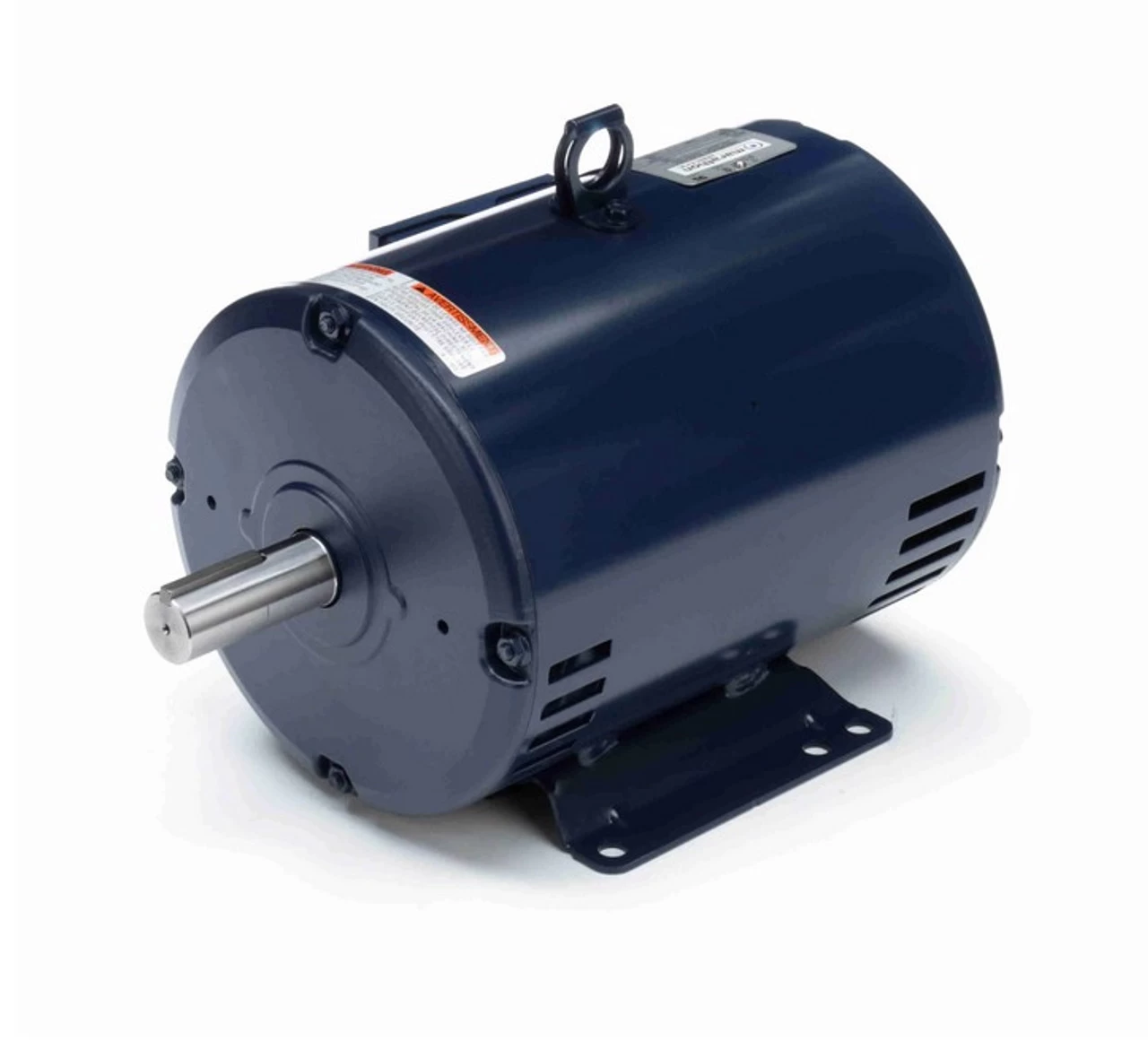

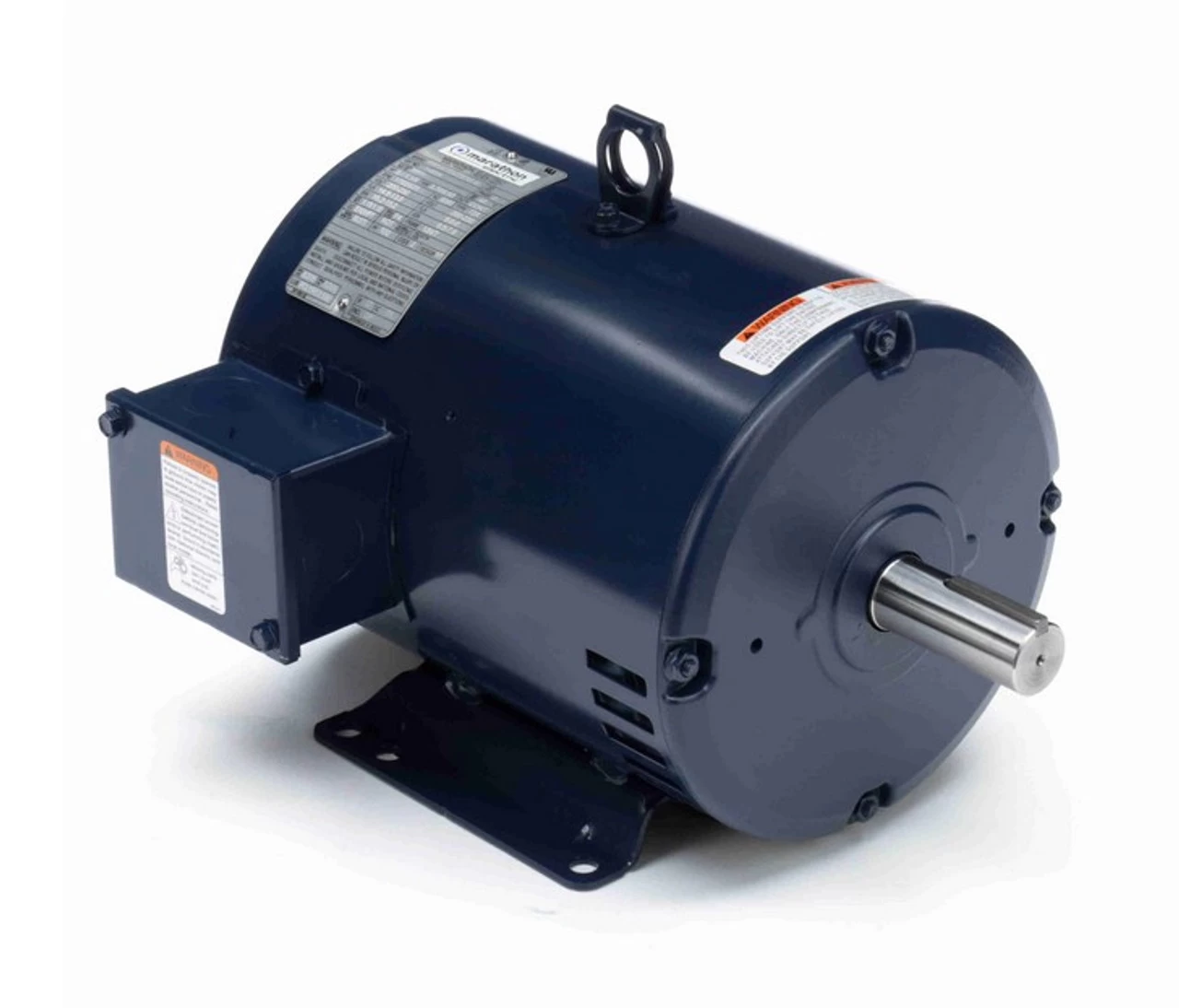

Y486A Marathon 5 Hp (2 Speed) 200-230V 1800/900 RPM ODP 184T Frame 3-Phase Variable Torque Motor

• 5 hp 1800/900 RPM, 14.5-13.8 amps, 200-230 Volts 60 Hz, 3-Phase

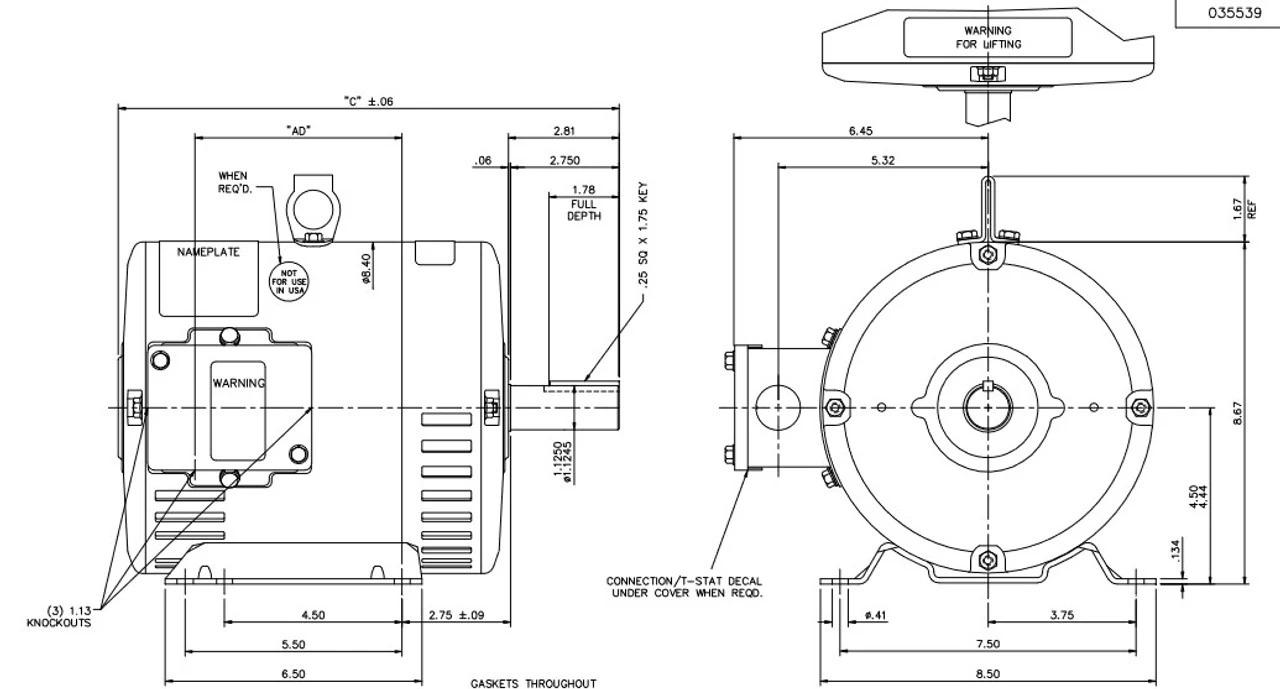

• NEMA 184T Frame, Shaft 2 3/4″ x 1 1/8″ Diameter, 2 speed
• Service Factor = 1.15, Thermal Protection = None
• Rigid Base, Reversible rotation, Ball Bearings, Class F insulation
• 1 Year Manufacture Warranty

For use on blowers and pumps having variable running loads. Shaft should be horizontal. ODP = Open Drip Proof. 184TTDW7287
