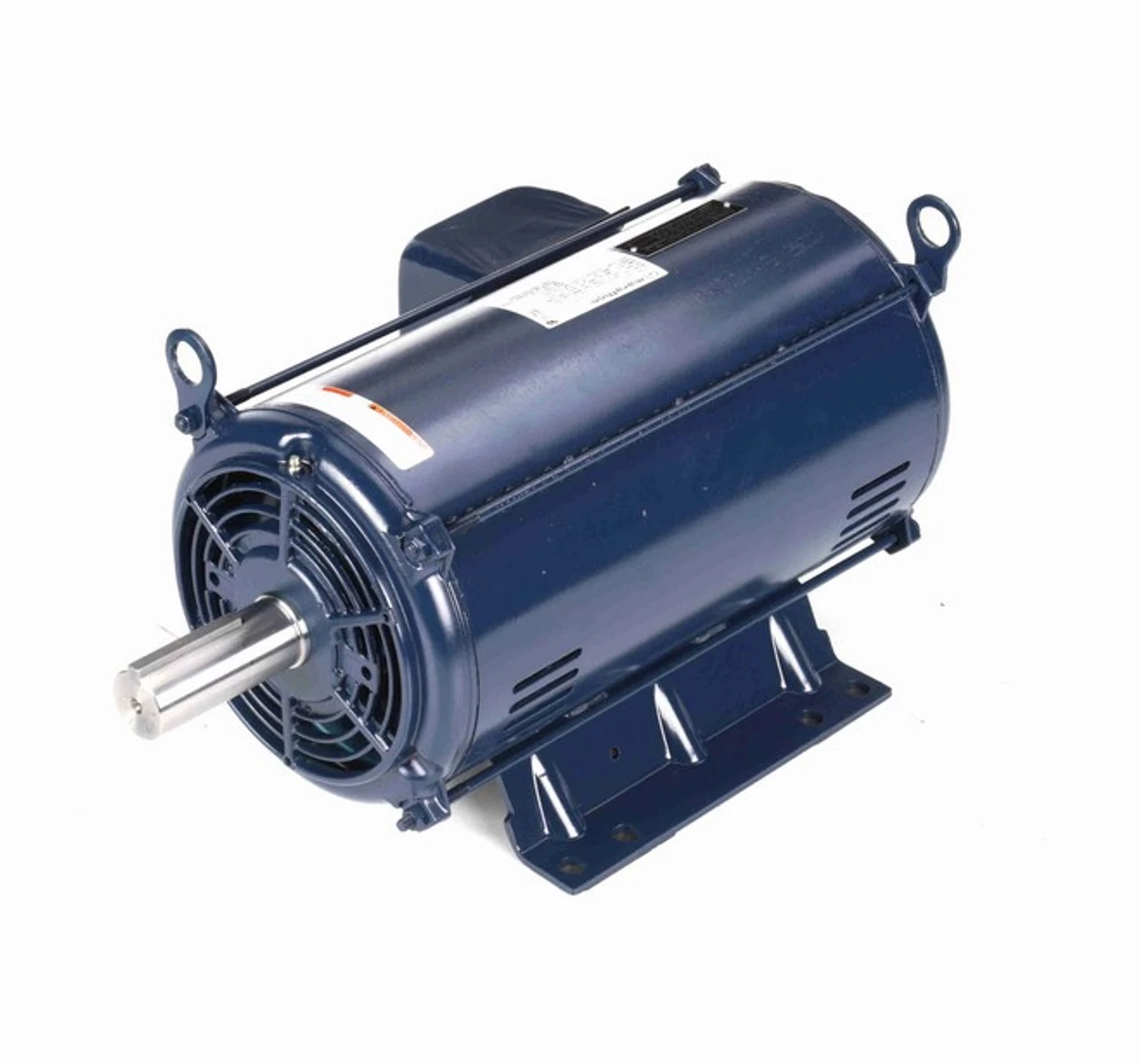

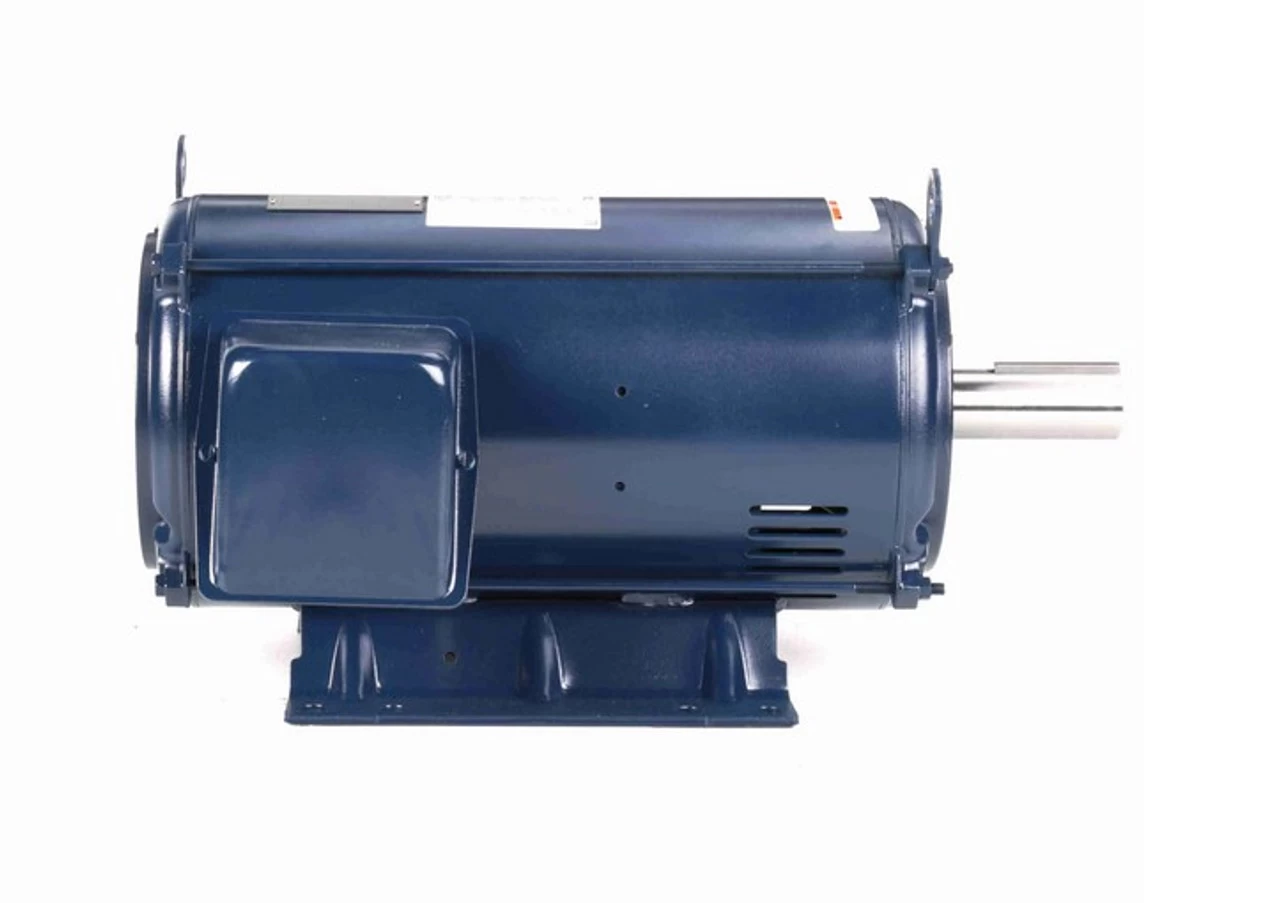

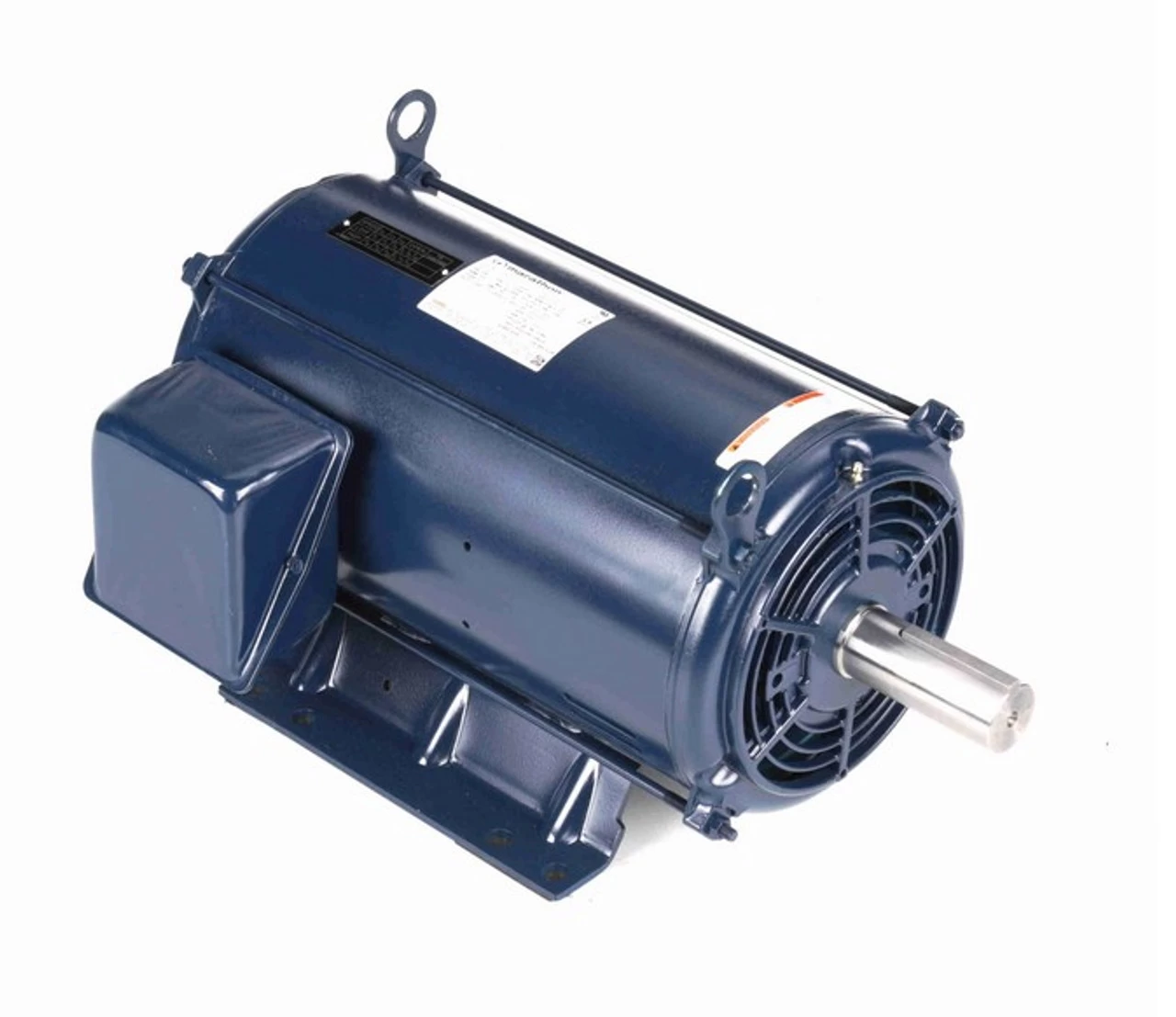

Y458 Marathon 10 Hp (2 Speed) 460V 1800/1200 RPM ODP 256T Frame 3-Phase Variable Torque Motor

• 10 hp 1800/1200 RPM, 12.0, 6.5 amps, 460 Volts 60 Hz, 3-Phase, 2 Winding

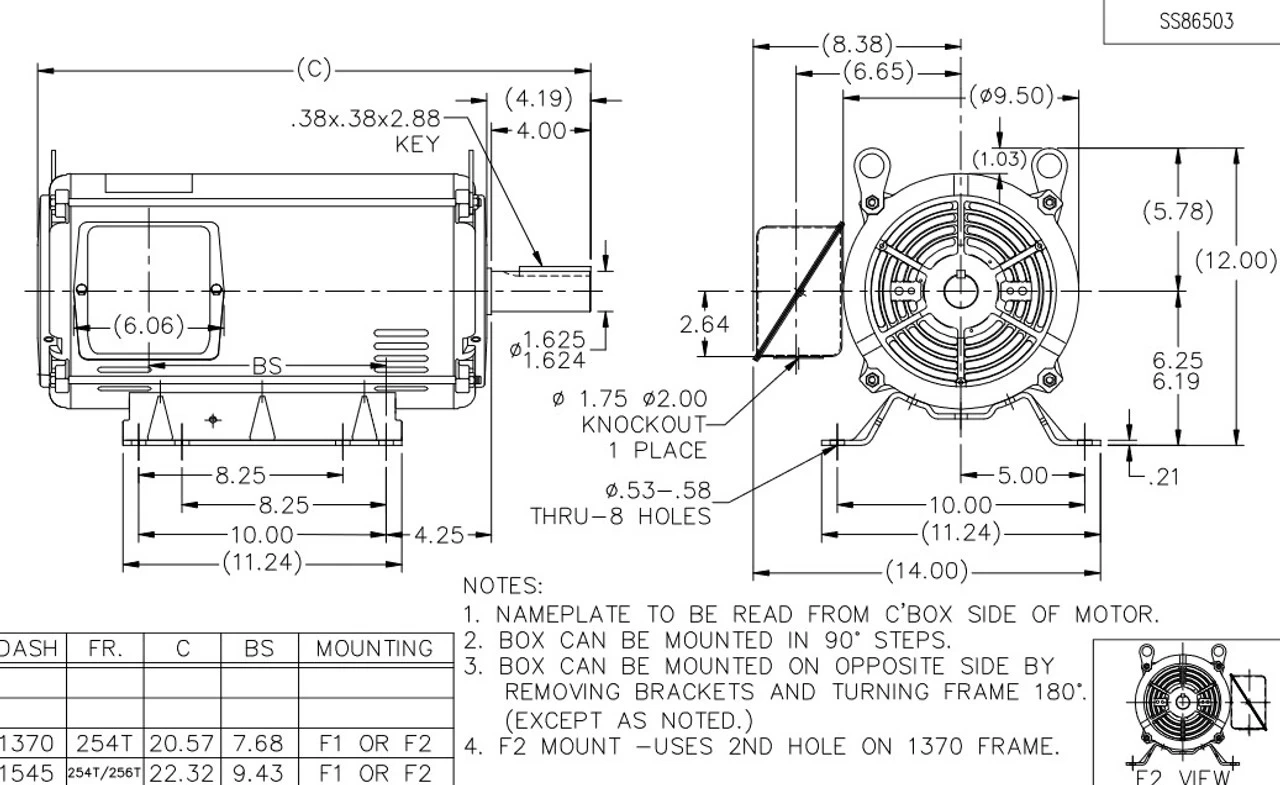

• NEMA 256T Frame, Shaft 4″ x 1 5/8″ Diameter, 2 speed
• Service Factor = 1.15, Thermal Protection = None
• Rigid Base, Reversible rotation, Ball Bearings, Class F insulation
• 1 Year Manufacture Warranty

For use on blowers and pumps having variable running loads. Shaft should be horizontal. ODP = Open Drip Proof. 256TTDX7264
