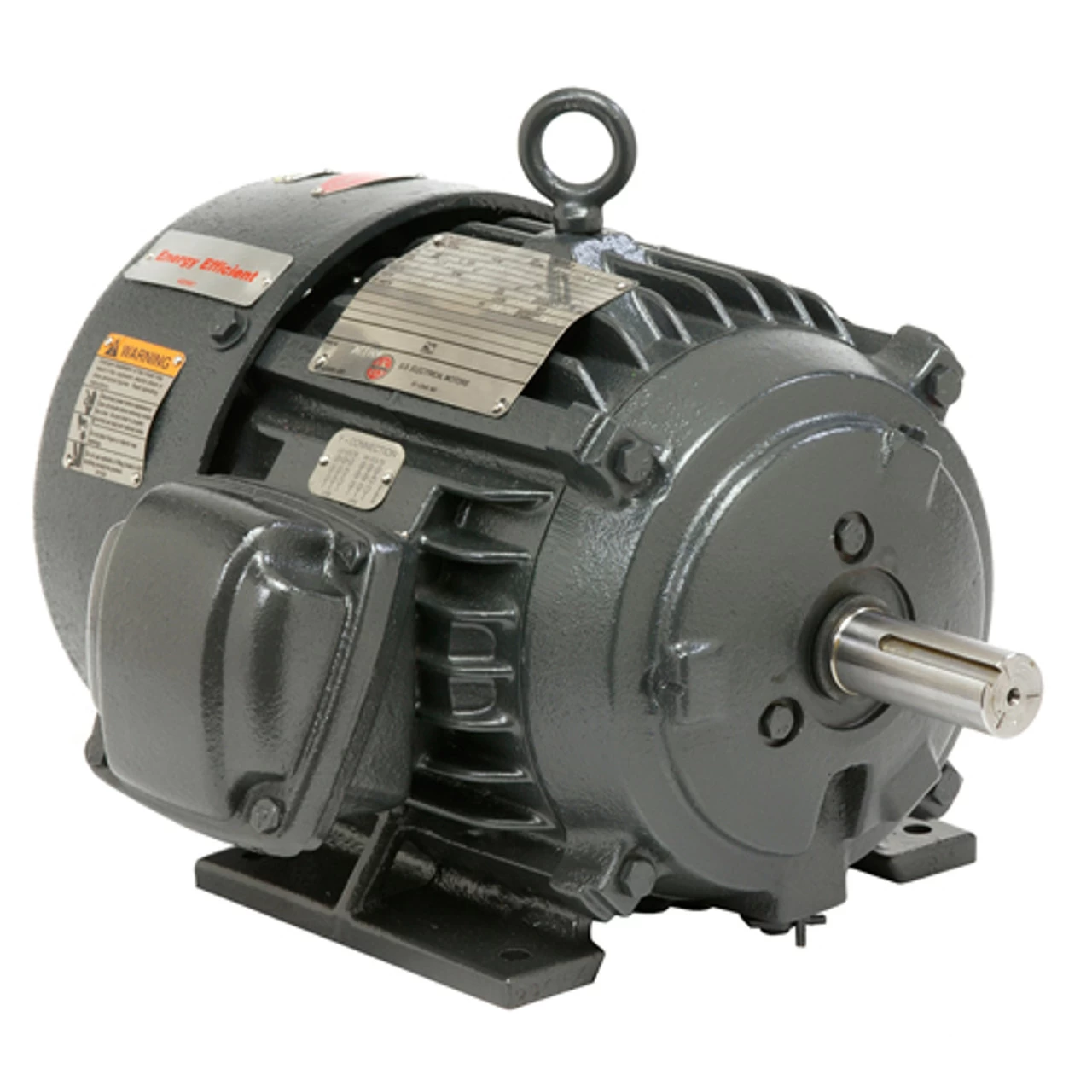

XS2PA2AH Nidec 2 Hp 1800 RPM 56H Frame (Rigid Base) 208-230/460V TEFC 3-Phase Electric Motor
Original price was: $382.00.$99.99Current price is: $99.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 2 hp 1800 RPM, 6.7-6.4/3.2 amps 208-230/460 Volts 50/60 Hz Three Phase Motor

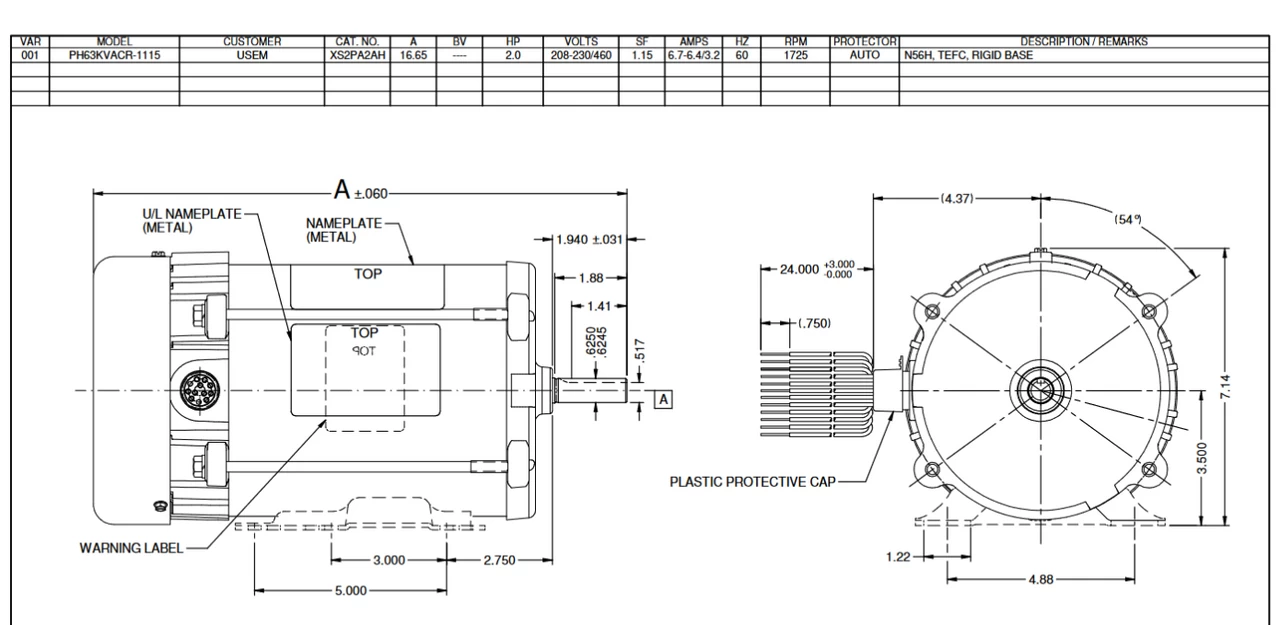

- NEMA 56H Rolled Steel frame Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.15, Overload protection = Auto
- Rigid Base Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose Division 1 hazardous location motor for class 1 group CD and class 2 group EFG. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. PH63ACR1115015B
