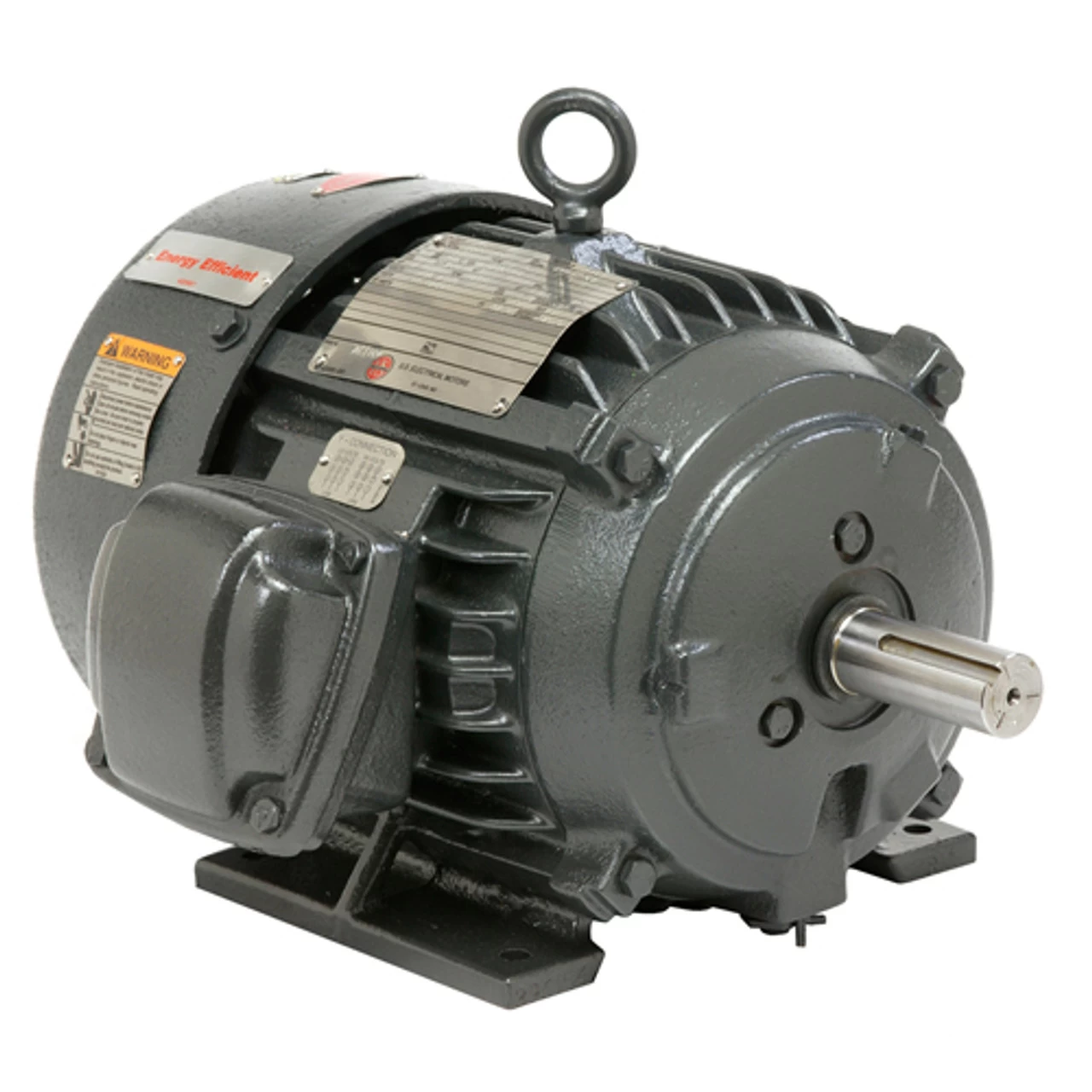

X25P1BS Nidec 25 Hp 3600 RPM 284TS Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor
Original price was: $328.00.$97.99Current price is: $97.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 25 hp 3600 RPM, 57.0/28.7 amps 230/460 Volts 60 Hz Three Phase Motor

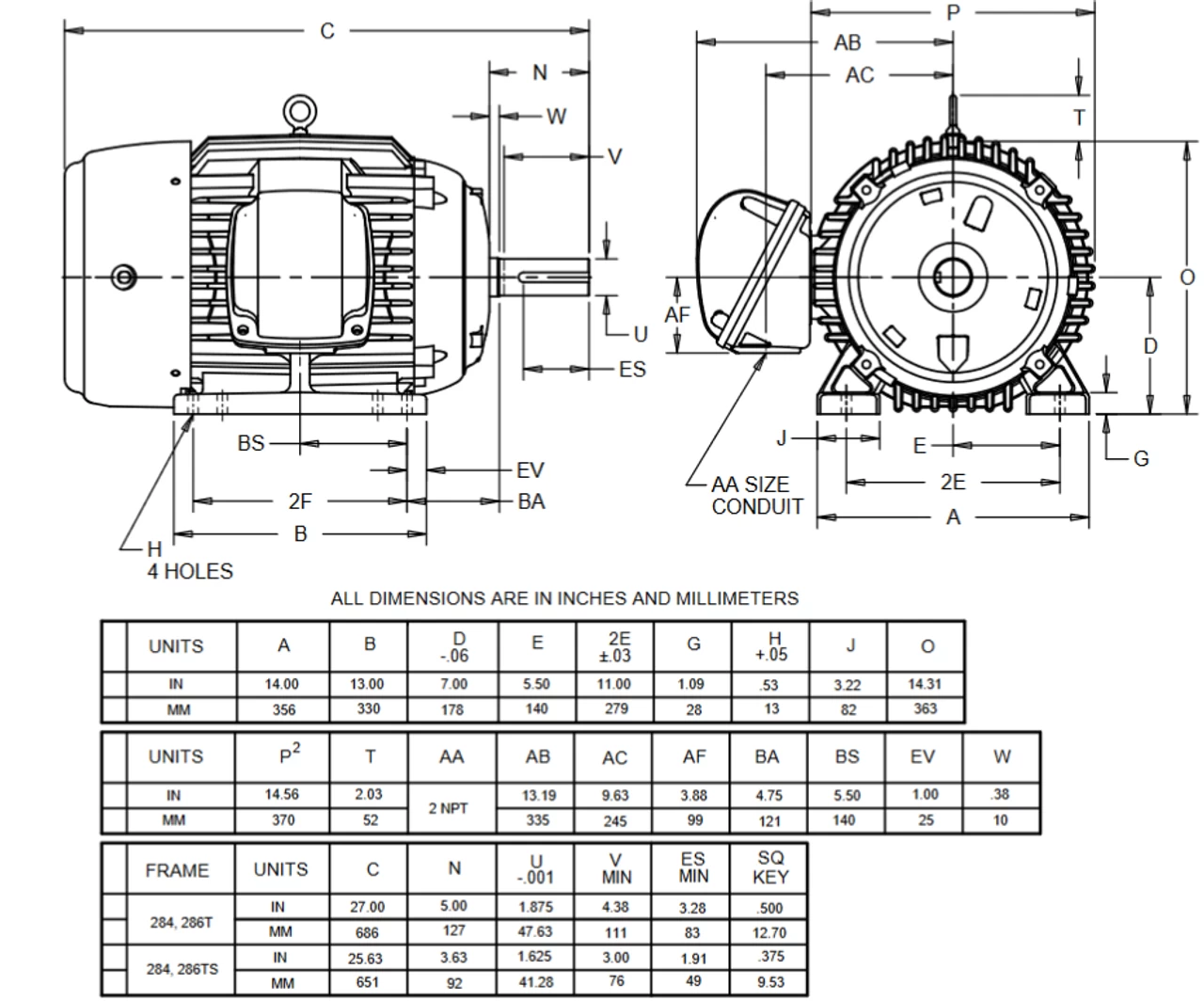

- NEMA 284TS Cast Iron frame Keyed Shaft 1 5/8″ Diameter x 3 1/4″
- Service Factor: 1.0, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose Division 1 hazardous location motor for class 1 group CD and class 2 group FG. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. CS02
