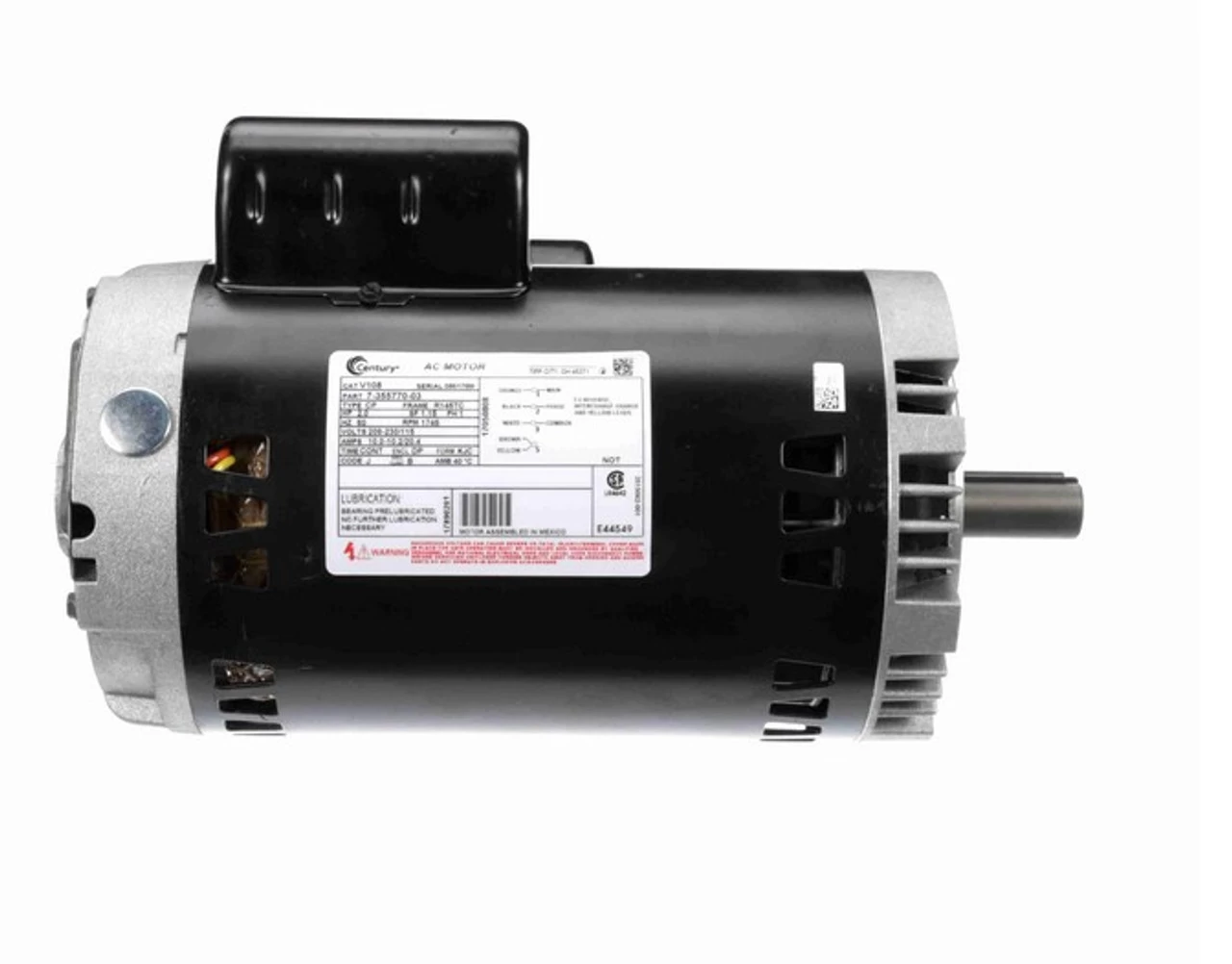

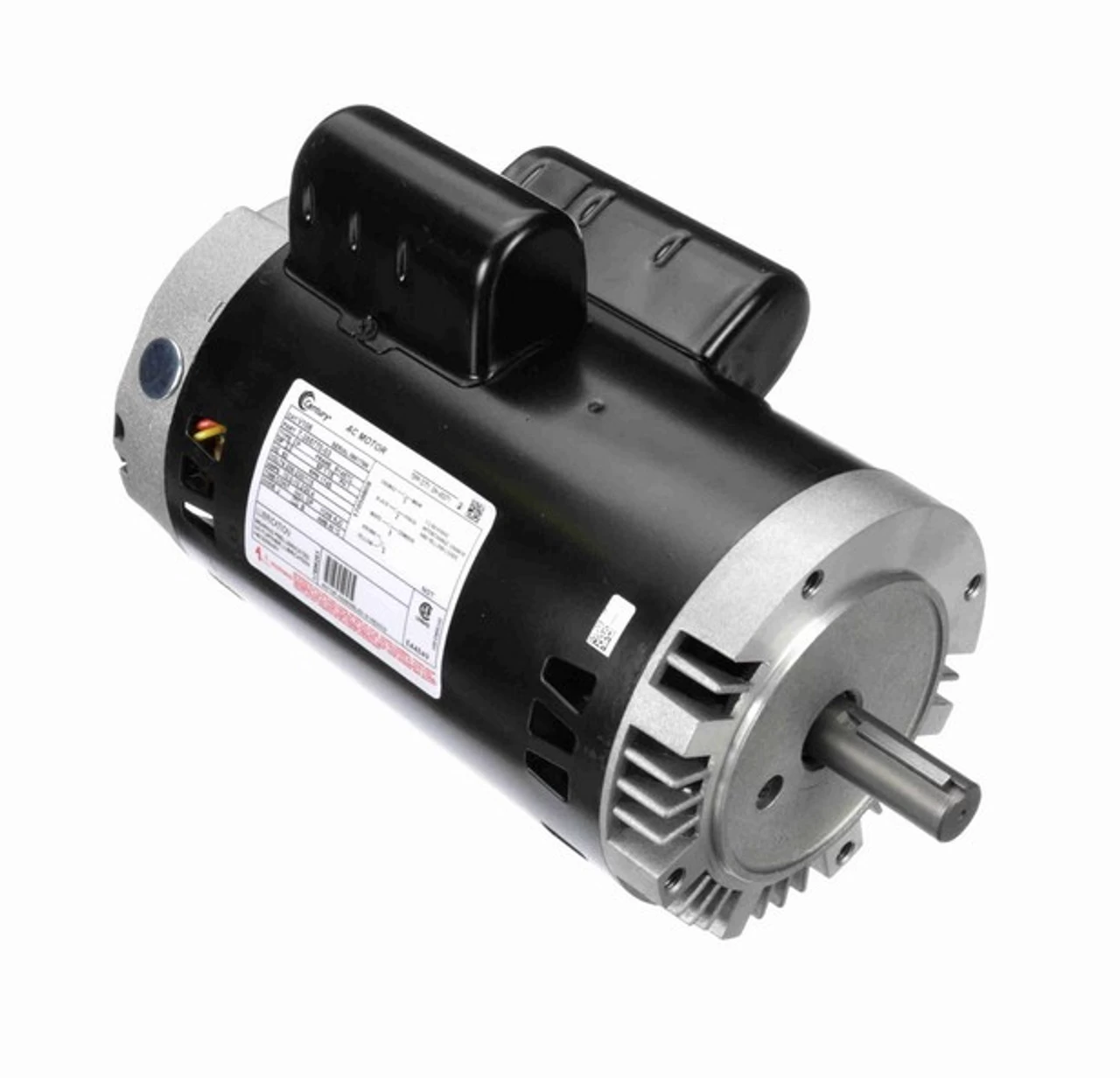

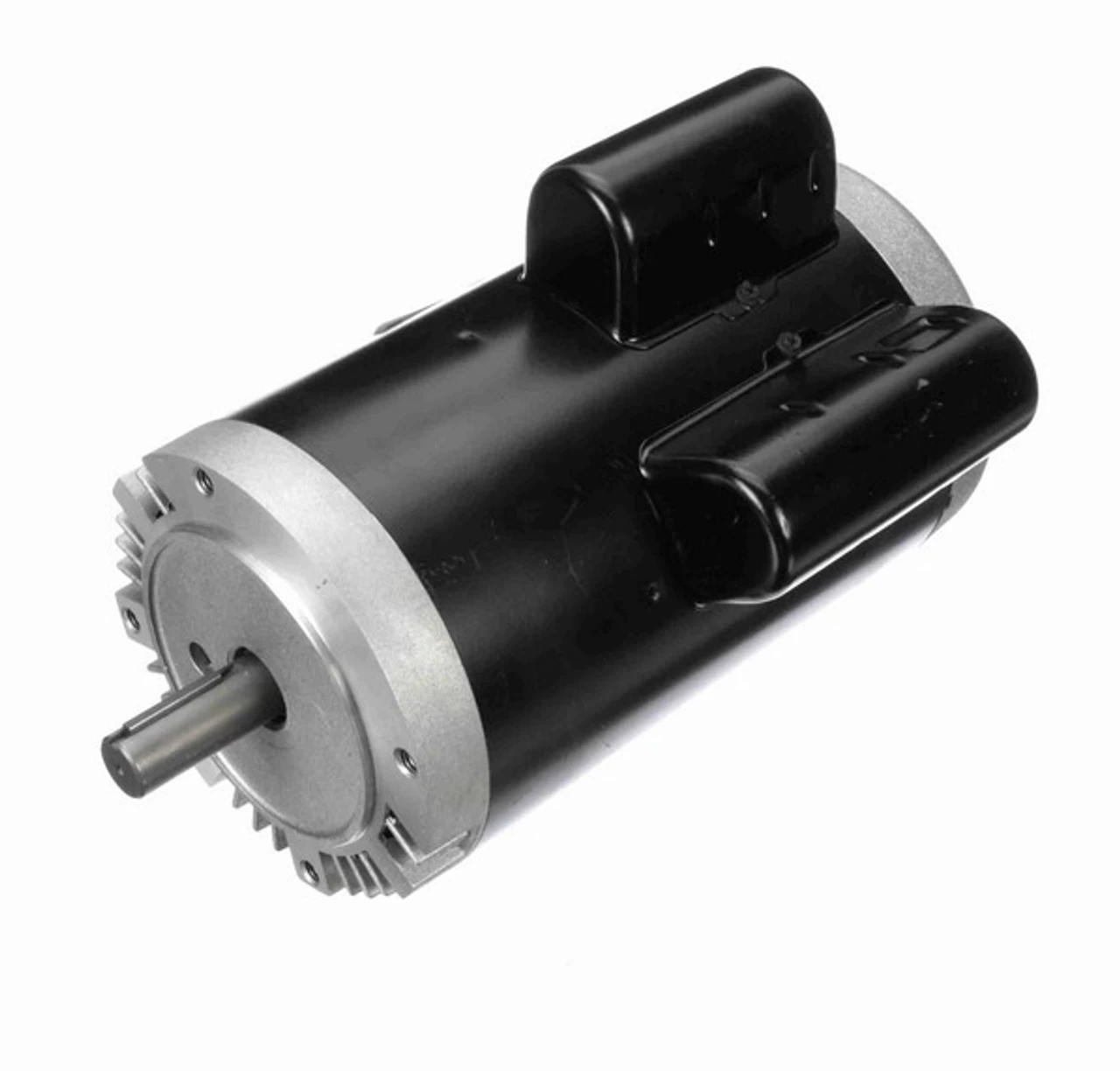

V108 Century 2 Hp 1800 RPM 145TC Frame ODP (no Base) 115/208-230V Motor

• 2 hp 1800 RPM, 20.4/10.2-10.0 amps 115/208-230 Volts 60hz. Capacitor Start – Induction Run Motor

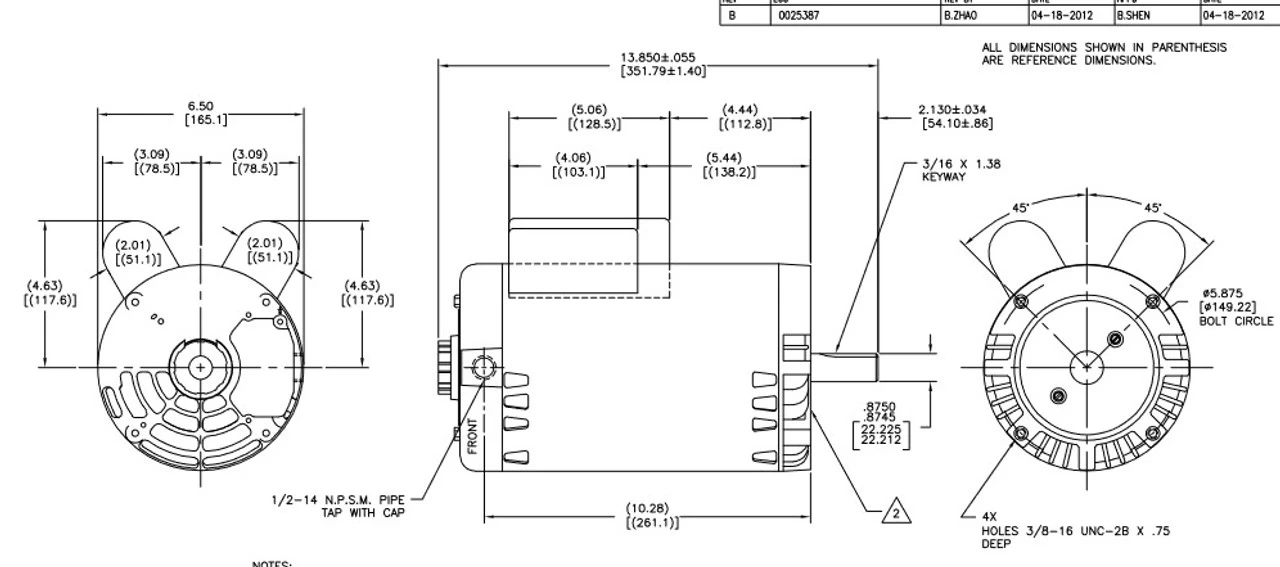

• NEMA 145TC Rolled Steel frame, C-face, Keyed Shaft 7/8″ Diameter x 2 1/4″
• Service Factor: 1.15, Overload protection = Auto
• Rigid Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof

Replaces Leeson C145K17DC4L, 120073.00
