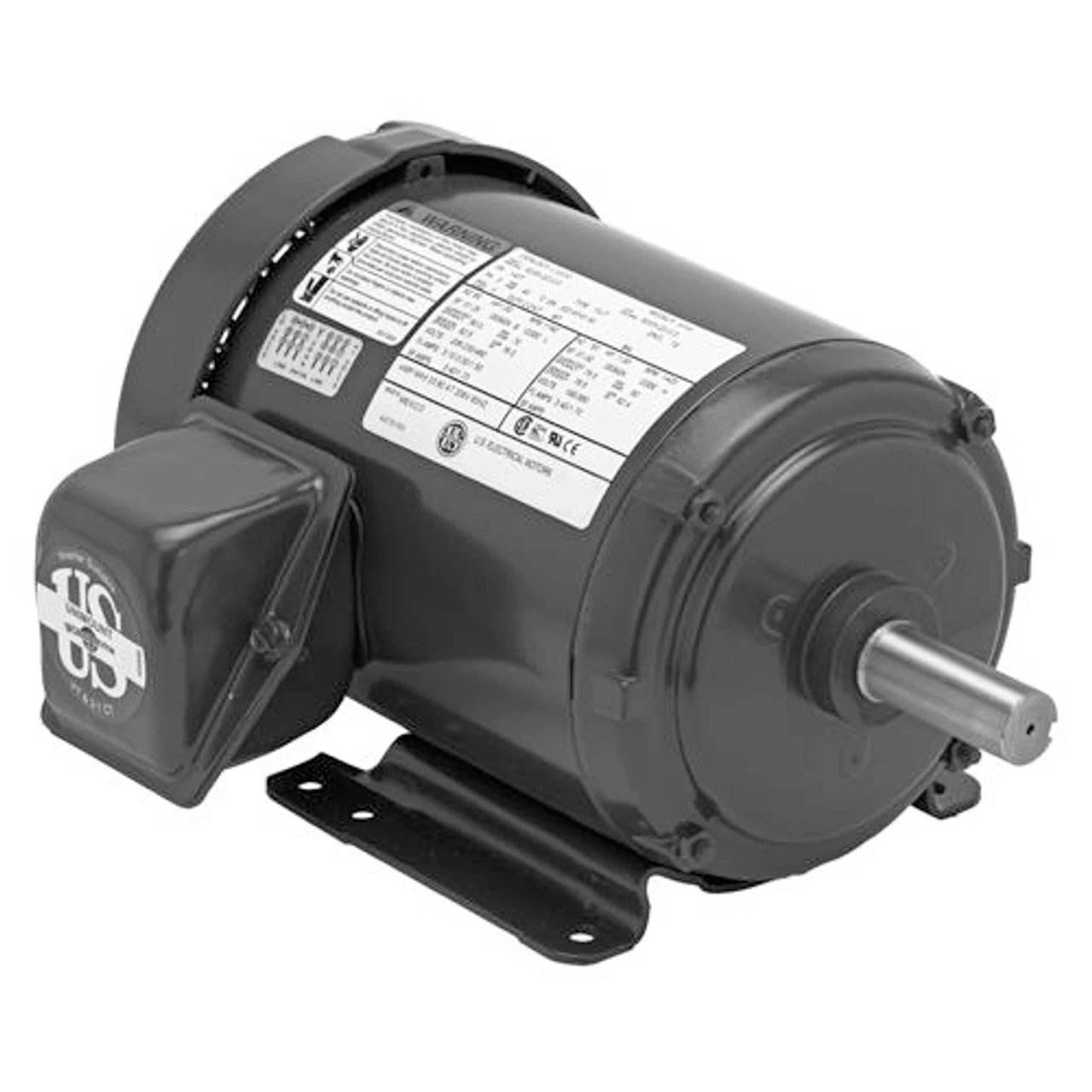

U32P1H Nidec 1 1/2 Hp 3600 RPM 143T Frame 200V TEFC 3-Phase Electric Motor
Original price was: $376.10.$98.99Current price is: $98.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1 1/2 hp 3600 RPM, 4.4 amps 200 Volts 50/60 Hz Three Phase Motor

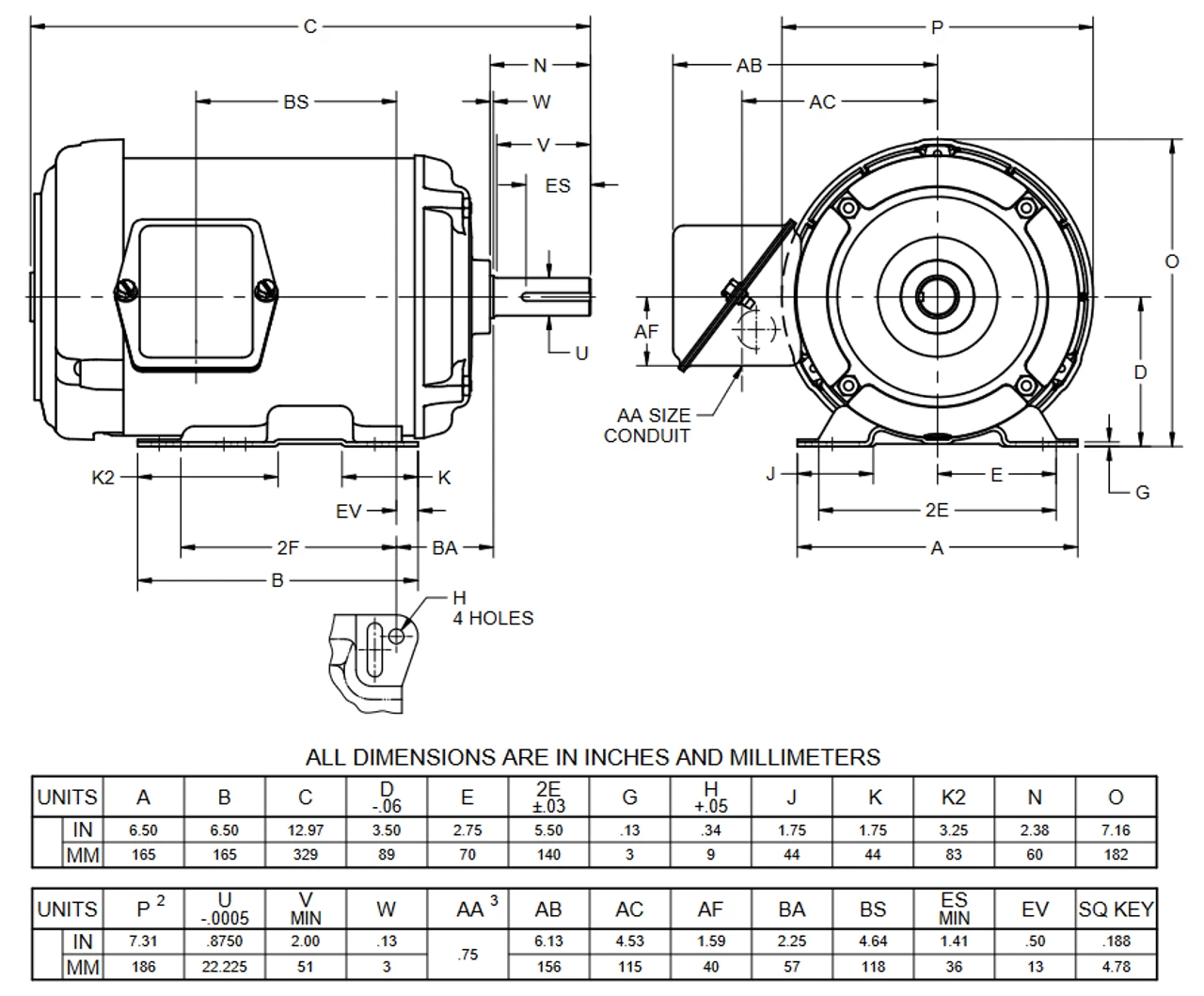

- NEMA 143T frame Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. FD71
Be the first to review “U32P1H Nidec 1 1/2 Hp 3600 RPM 143T Frame 200V TEFC 3-Phase Electric Motor”
