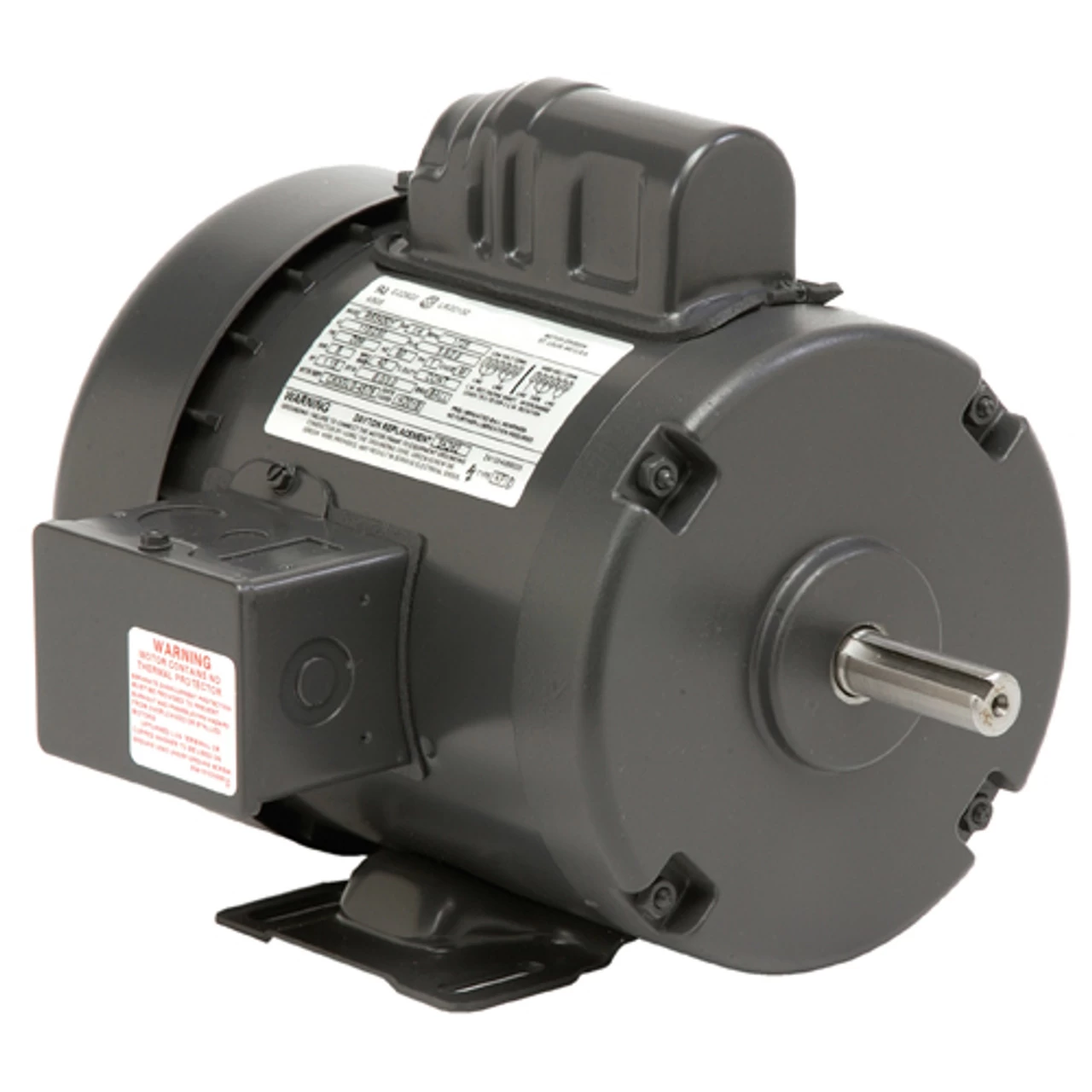

T34C2J Nidec 3/4 Hp 1800 RPM 115/208-230V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start Motor
Original price was: $394.00.$97.99Current price is: $97.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 3/4 hp 1800 RPM, 11.4/5.7-5.7 amps 115/208-230V Volts 60 Hz Capacitor Start Motor
- NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.15 Overload protection = None
- Rigid Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty
For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C063JDH5292015B
