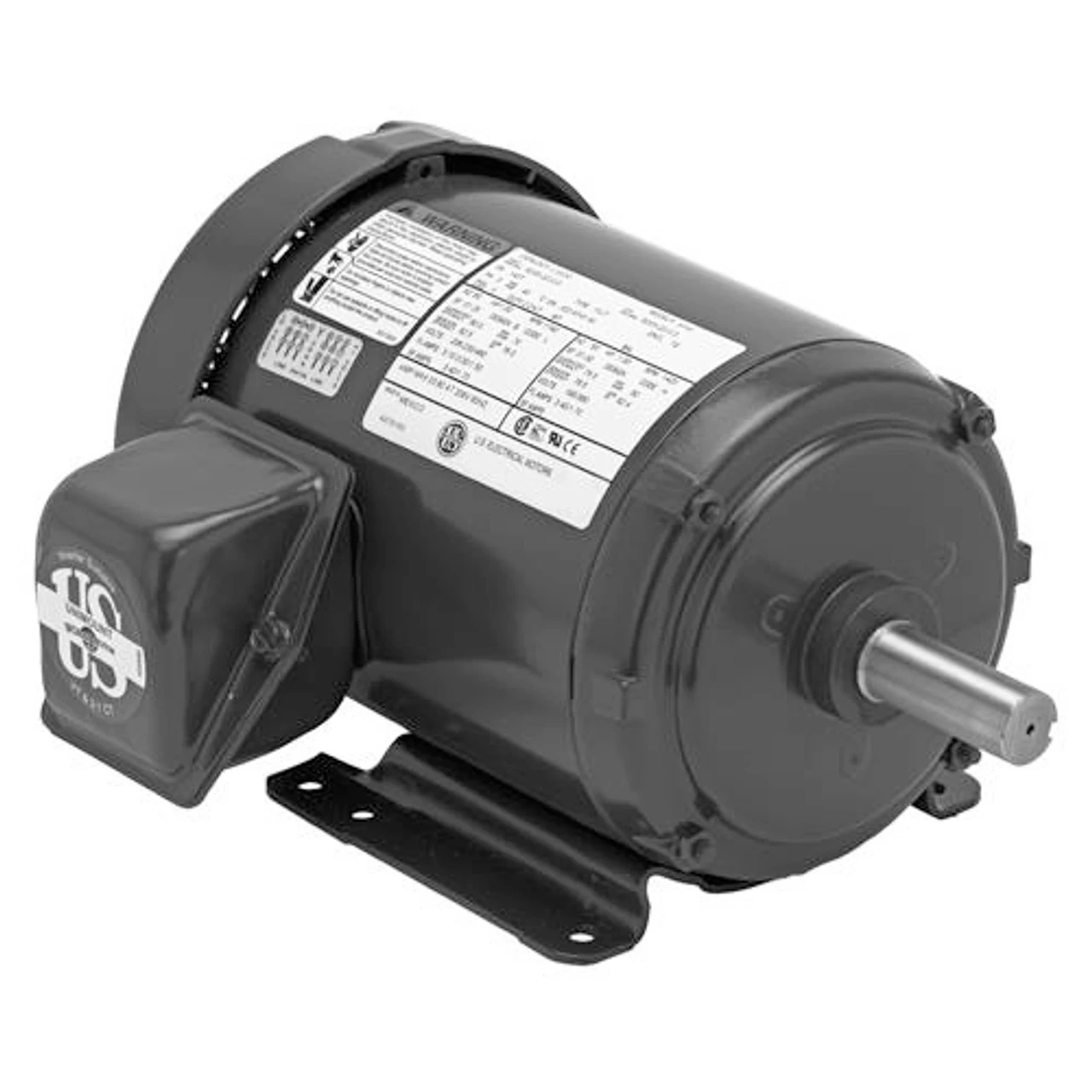

T32P1AH Nidec 1 1/2 Hp 3600 RPM 56H Frame 208-230/460V TEFC 3-Phase Electric Motor
Original price was: $337.60.$97.99Current price is: $97.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1 1/2 hp 3600 RPM, 4.9-5.0/2.5 amps 208-230/460 Volts 50/60 Hz Three Phase Motor

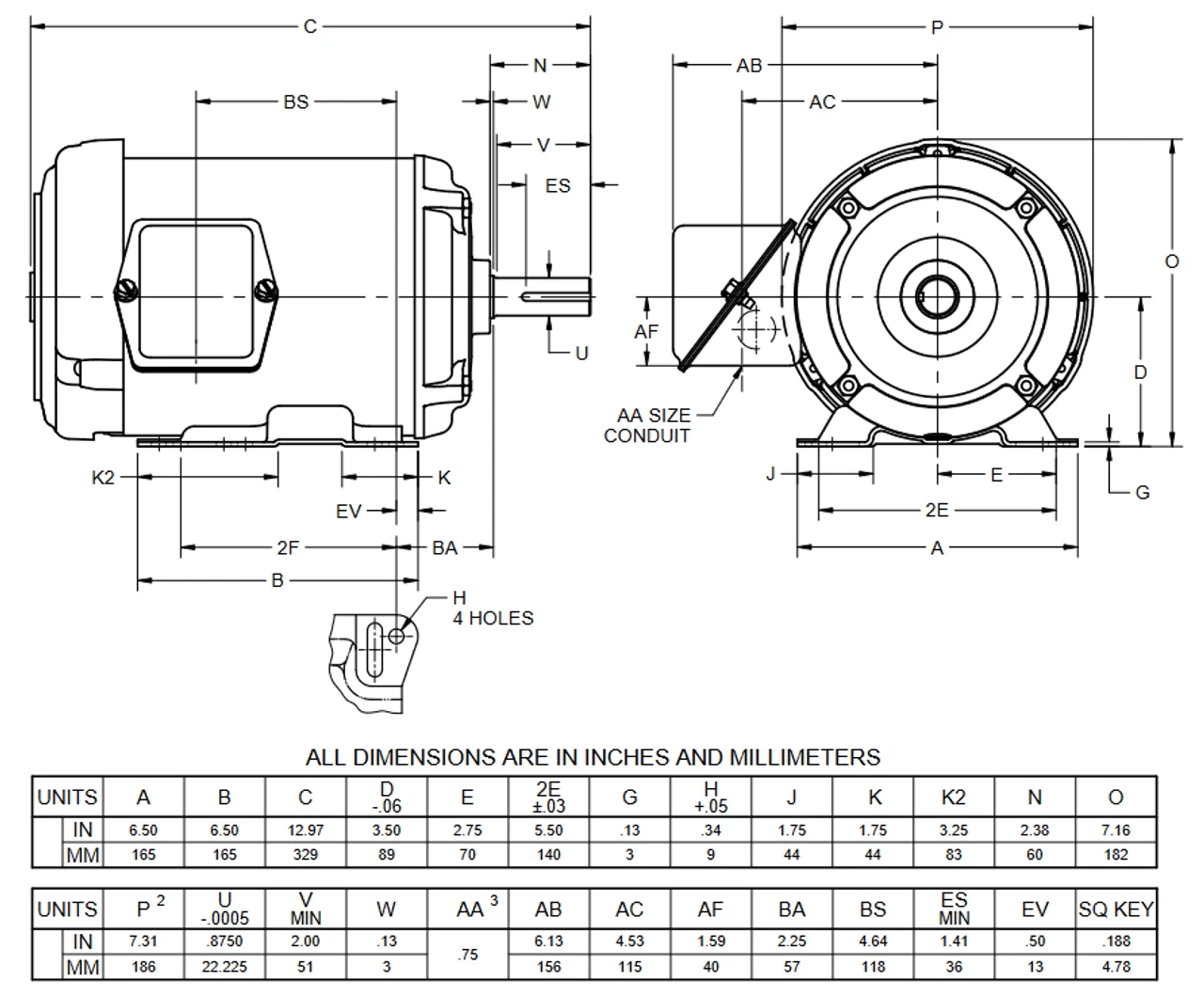

- NEMA 56H frame Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. P063GAC1453015B
