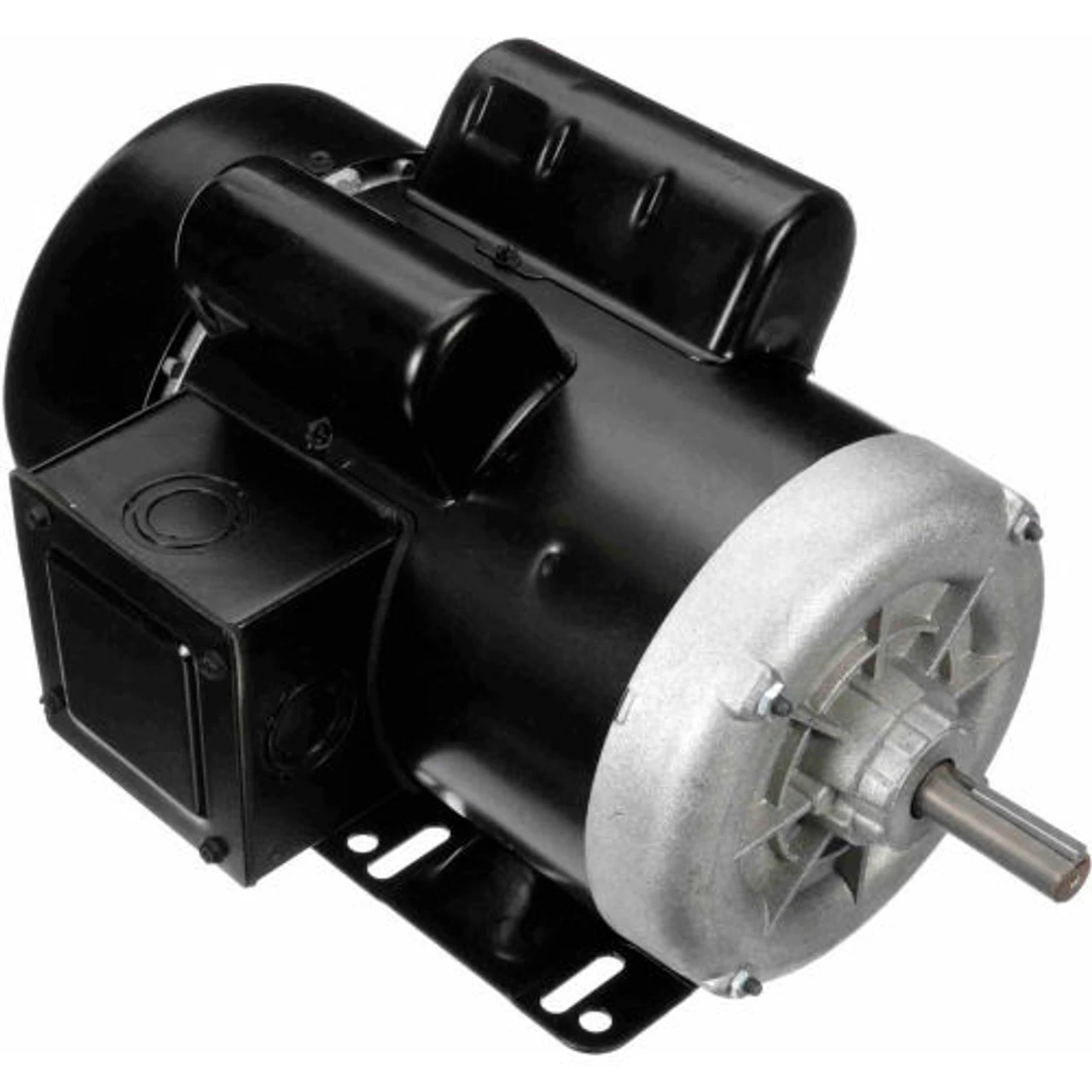

T32CA2J14 Nidec 1 1/2 Hp 1800 RPM 115/208-230V 145T Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor
Original price was: $364.00.$97.99Current price is: $97.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1 1/2 hp 1800 RPM, 14.4/8.0-7.2 amps 115/208-230V Volts 60 Hz Capacitor Start/Run Motor
- NEMA 145T Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.15 Overload protection = None
- Rigid Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty
For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T063DBD1617015B
