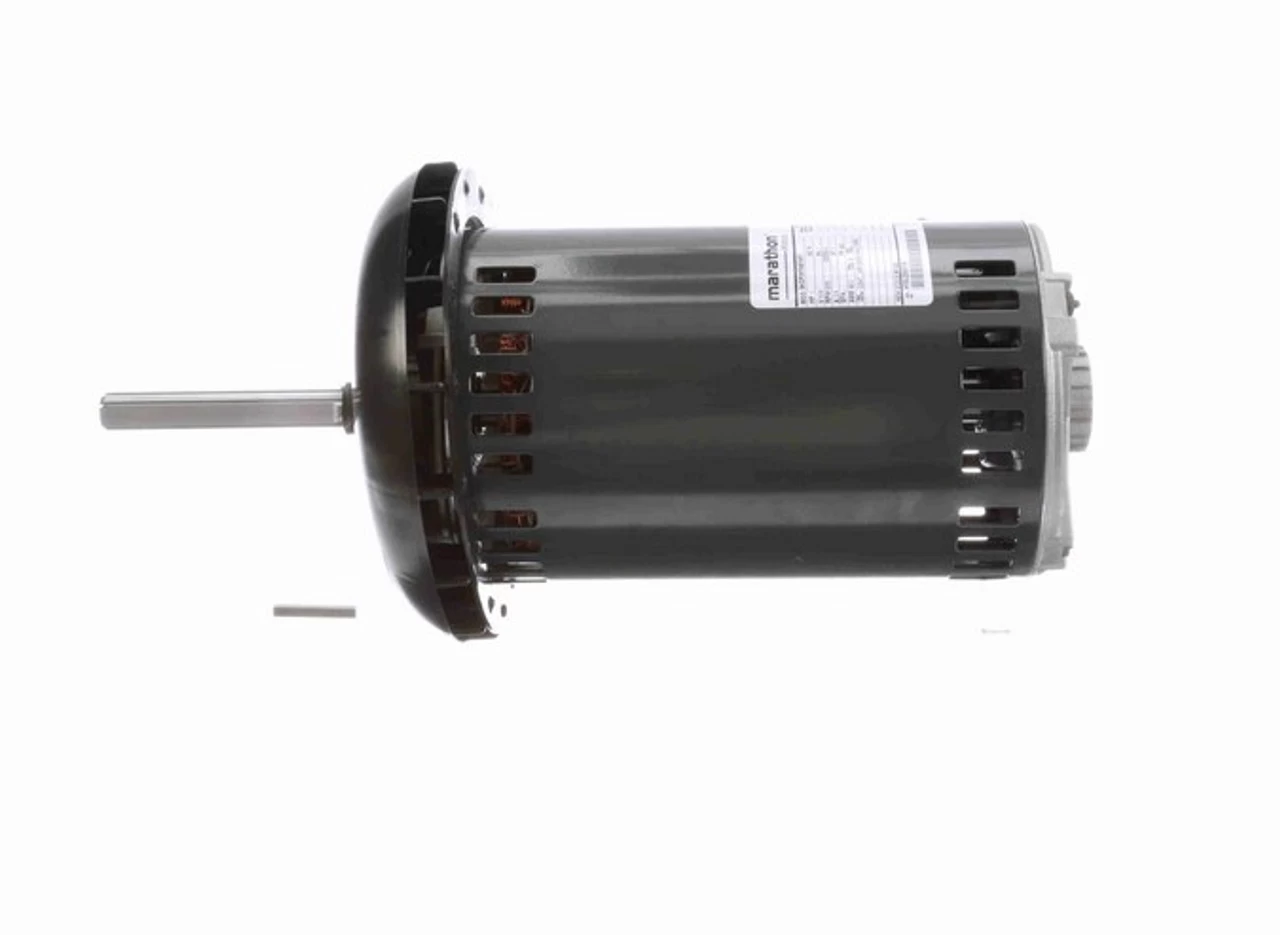

P198 Marathon 1 1/2 Hp 575V 1075 RPM OPAO 48Z Frame Canopy Condenser Fan Motor

• 1 1/2 hp 1075 RPM, 3.5 amps, 575 Volts 60 Hz, Permanent Split Capacitor (PSC)

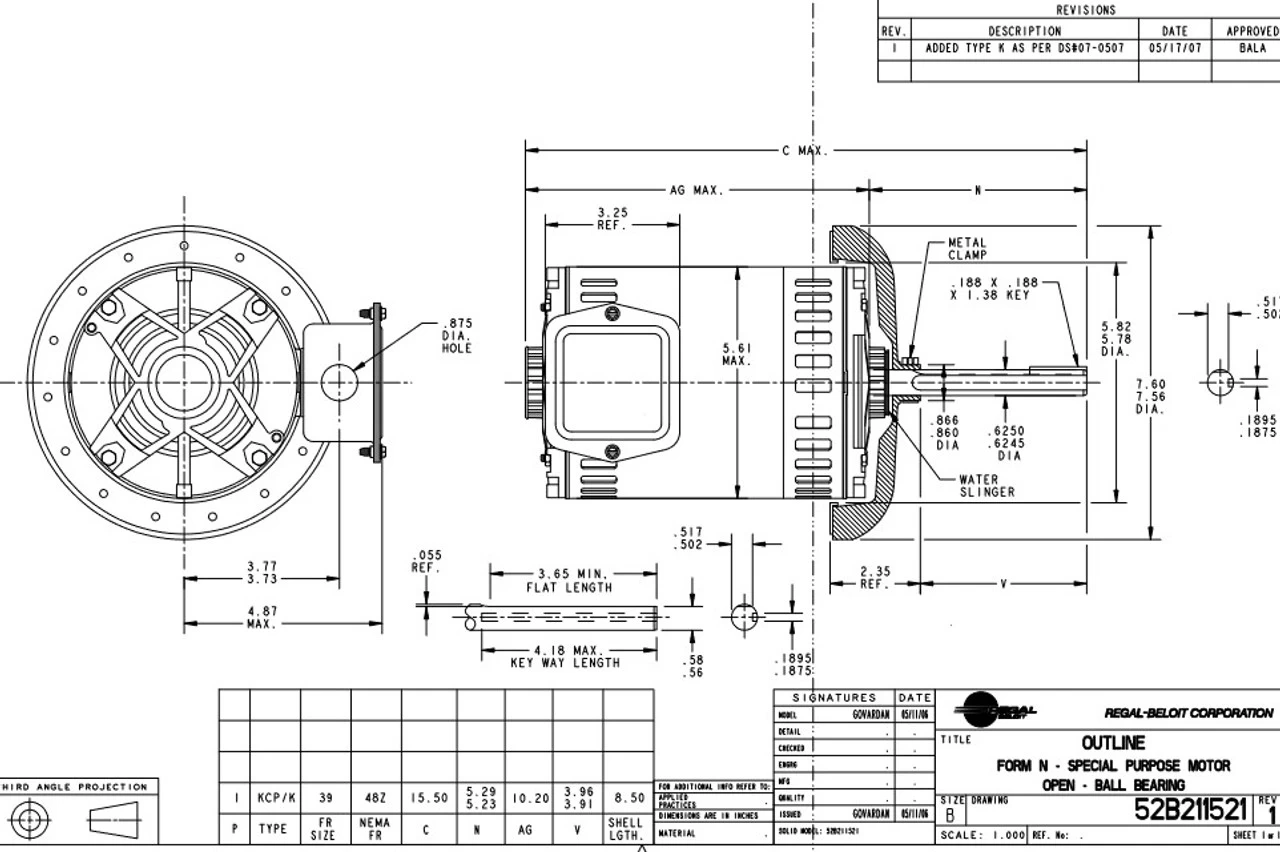

• NEMA 48Z Frame Keyed Shaft 5/8″ Diameter x 5-1/4″
• Service Factor = 1.0, Thermal Protection = Automatic
• No Base, Reversible, Ball Bearings, Class B insulation
• 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air Over so motor must be in air-stream. 5KCP39UNB764T
