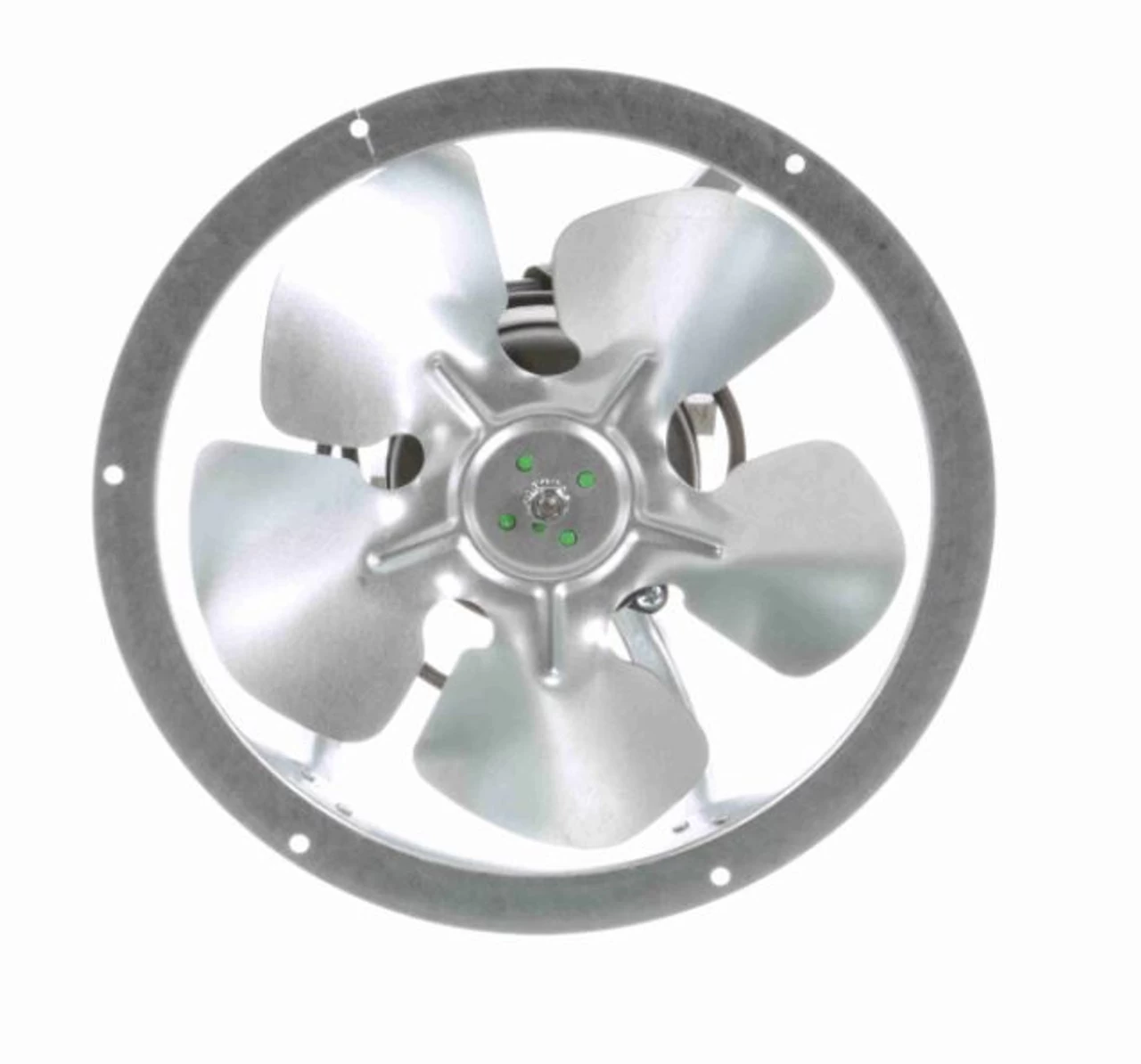

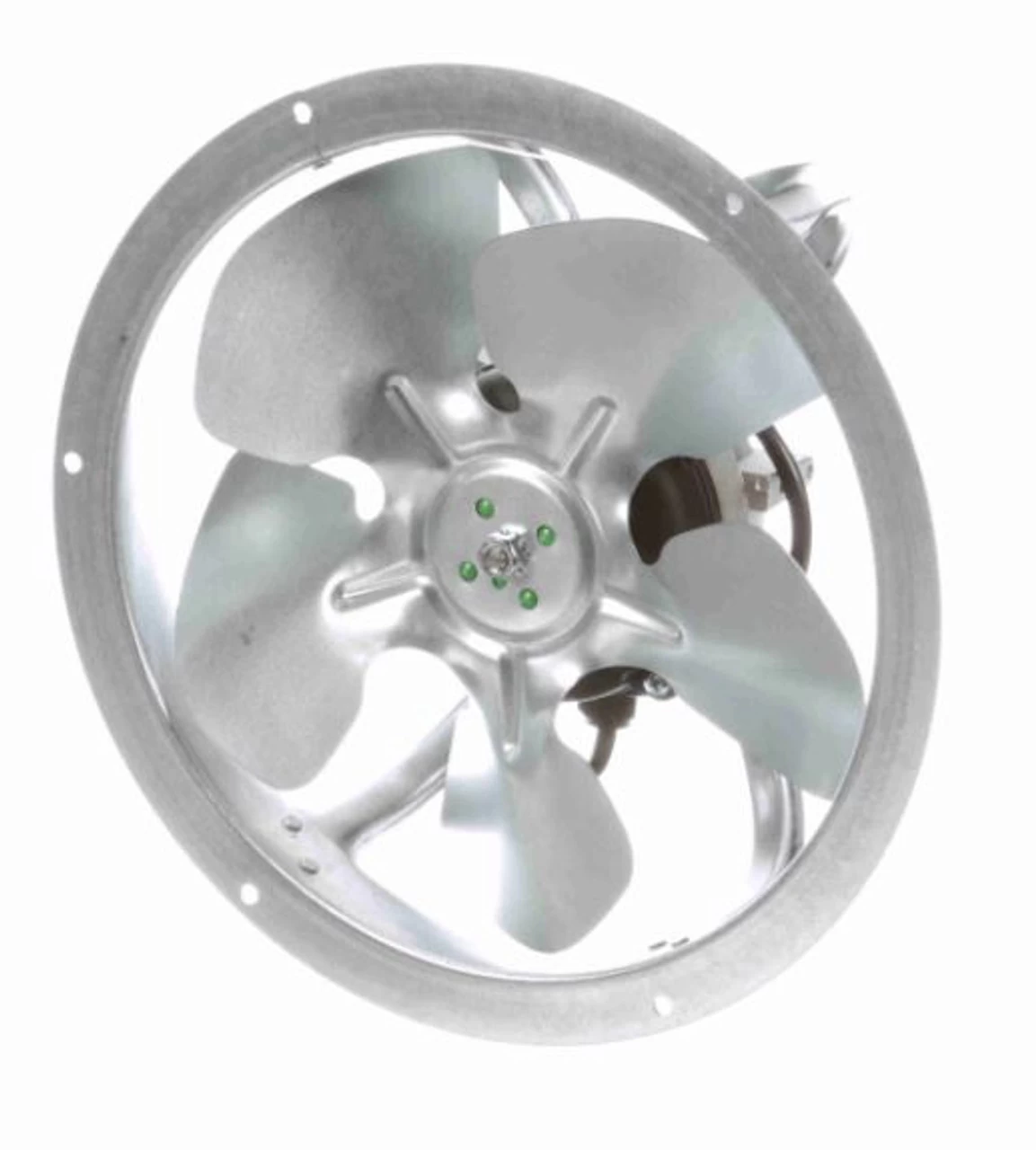

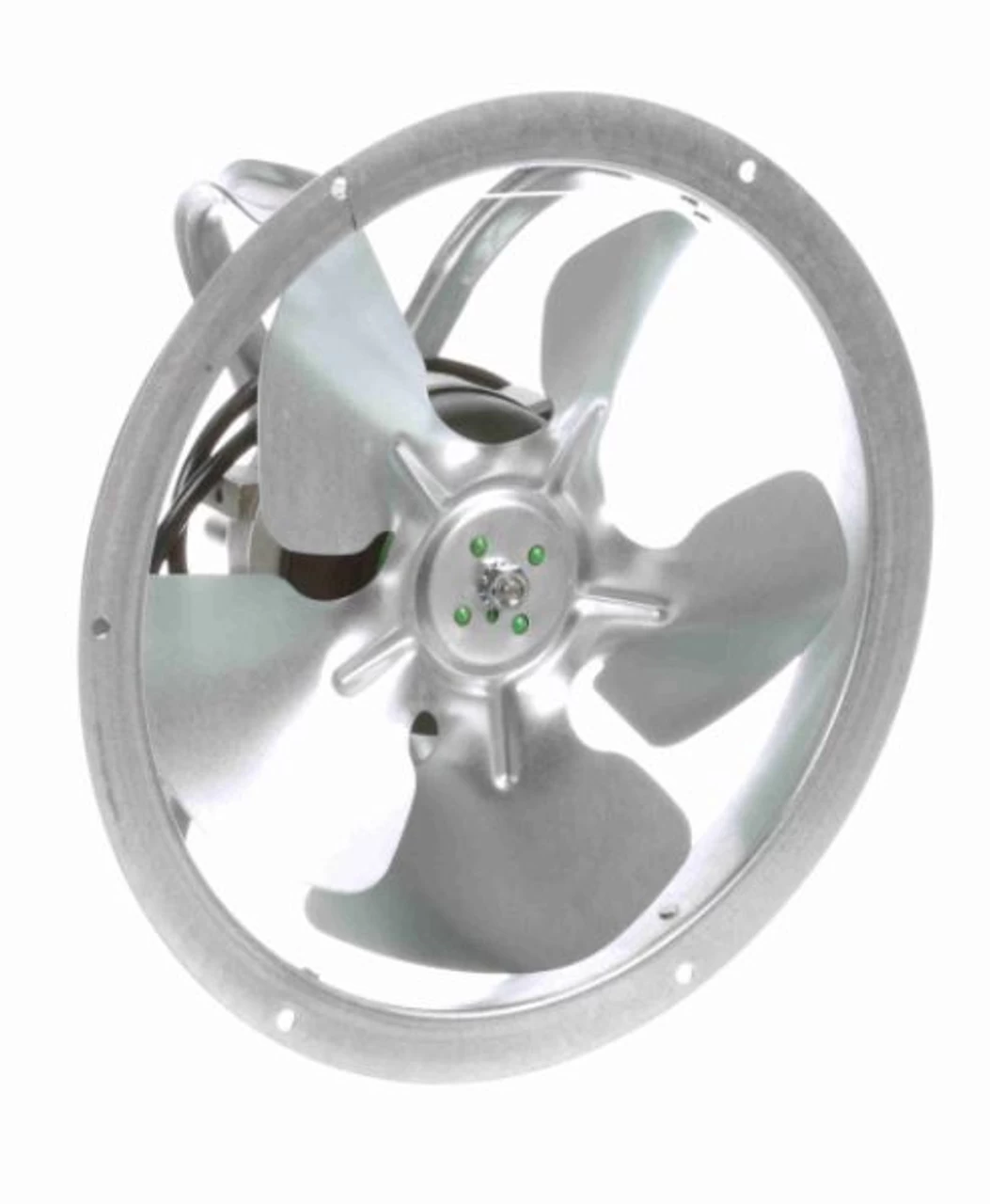

Morrill Motors MD5469, 4-20 Watt, 115-230V ECM Evaporator Fan Assembly

MORRILL MOTORS KRYO FORTRESS FAN PACK
DUAL VOLTAGE, DROP-IN REPLACEMENT

• 4-20 Watts, 1550 RPM, 90-240 Volts, .55-.20 amps
• 355 CFM – 8.25″ Fan Blade
• 115-230 VAC (Automatic) – Allowable voltage range 90-240 VAC
• CWLE Rotation, Ball Bearings
• Totally Enclosed Air-Over – IP66/IP67 Protection

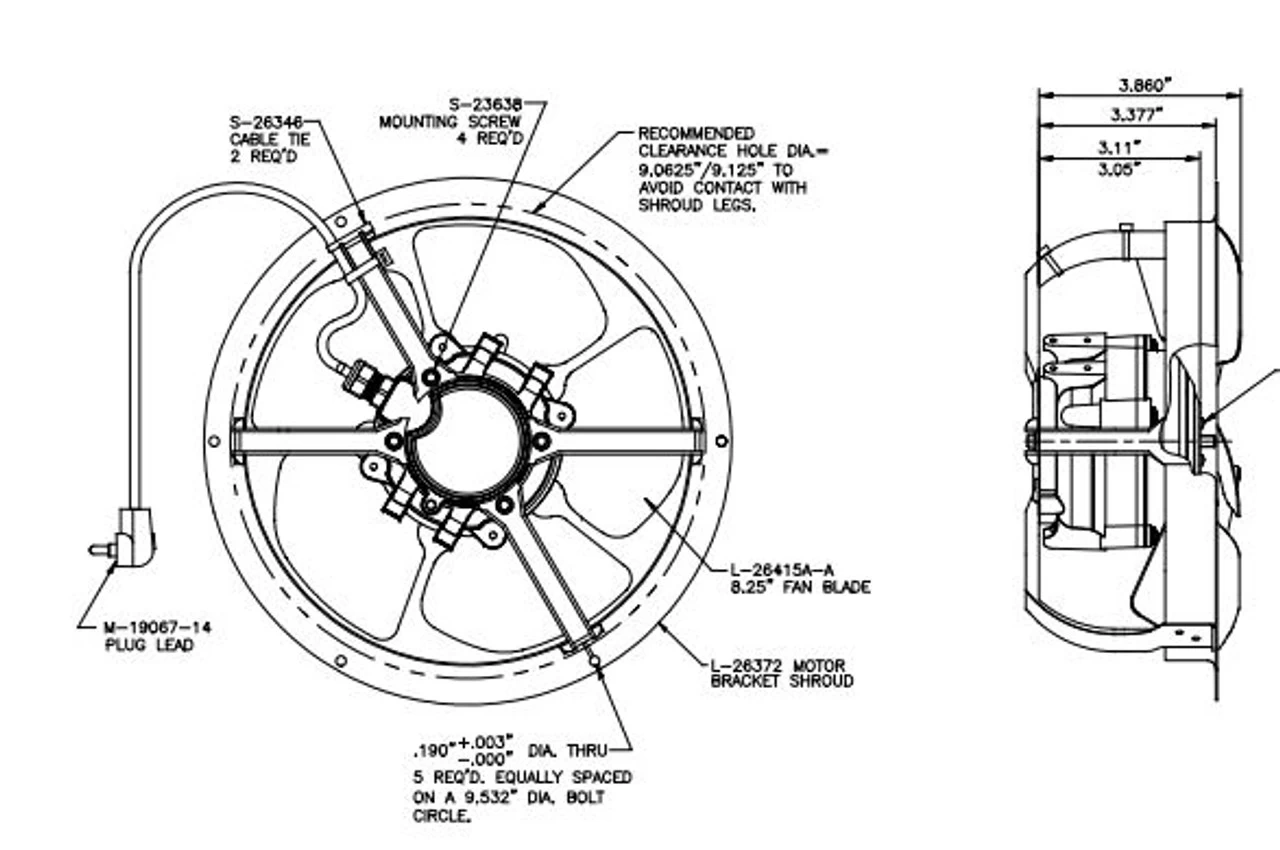

• Mounting Bracket 9.532″ Diameter Bolt Circle
• Electronic Thermal Protection
• Ball Bearings, All Angle Mount
• Can operate in temperatures between -40 to 55 Degrees C
• Frame Material Aluminum
• 2 Prong Right Angle Plug

Arktic SSC unit bearing motors are used in evaporators and condensers of commercial refrigerators and can be used in other applications demanding high efficiency.
Utilizing ECM technology with efficiencies reaching up to 68%, Arktic SSC motors are designed for 83,720 hours of continuous operation.
Application: Refrigeration, condenser and Evaporator Fans, Walk In Coolers, and Freezers. UL Recognized
Includes Fan Blade, Mounting Bracket, and Moisture Shield.

Morrill Motor MD5469, Replaces 5R024, 5R033 Fan Packs
