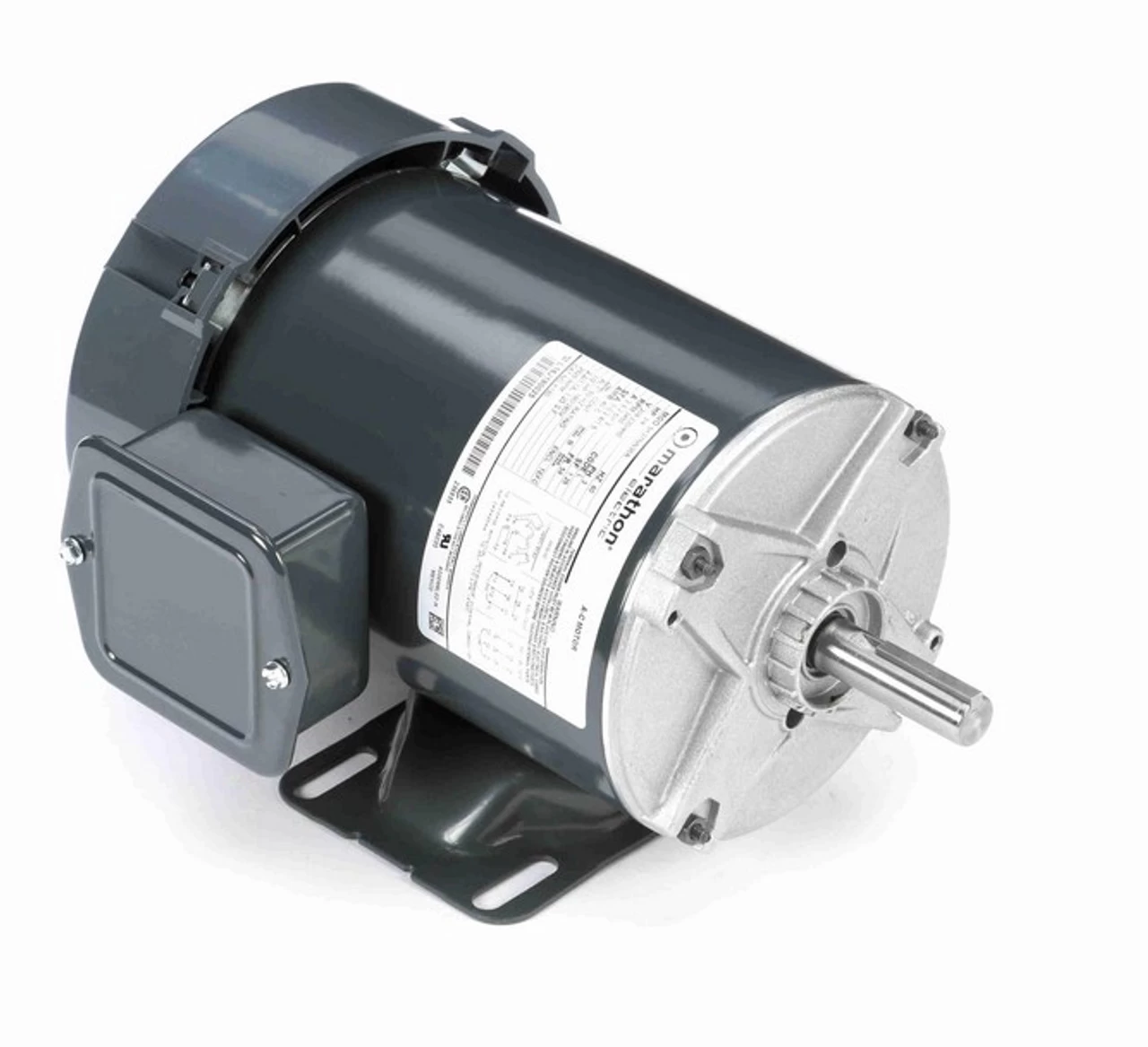

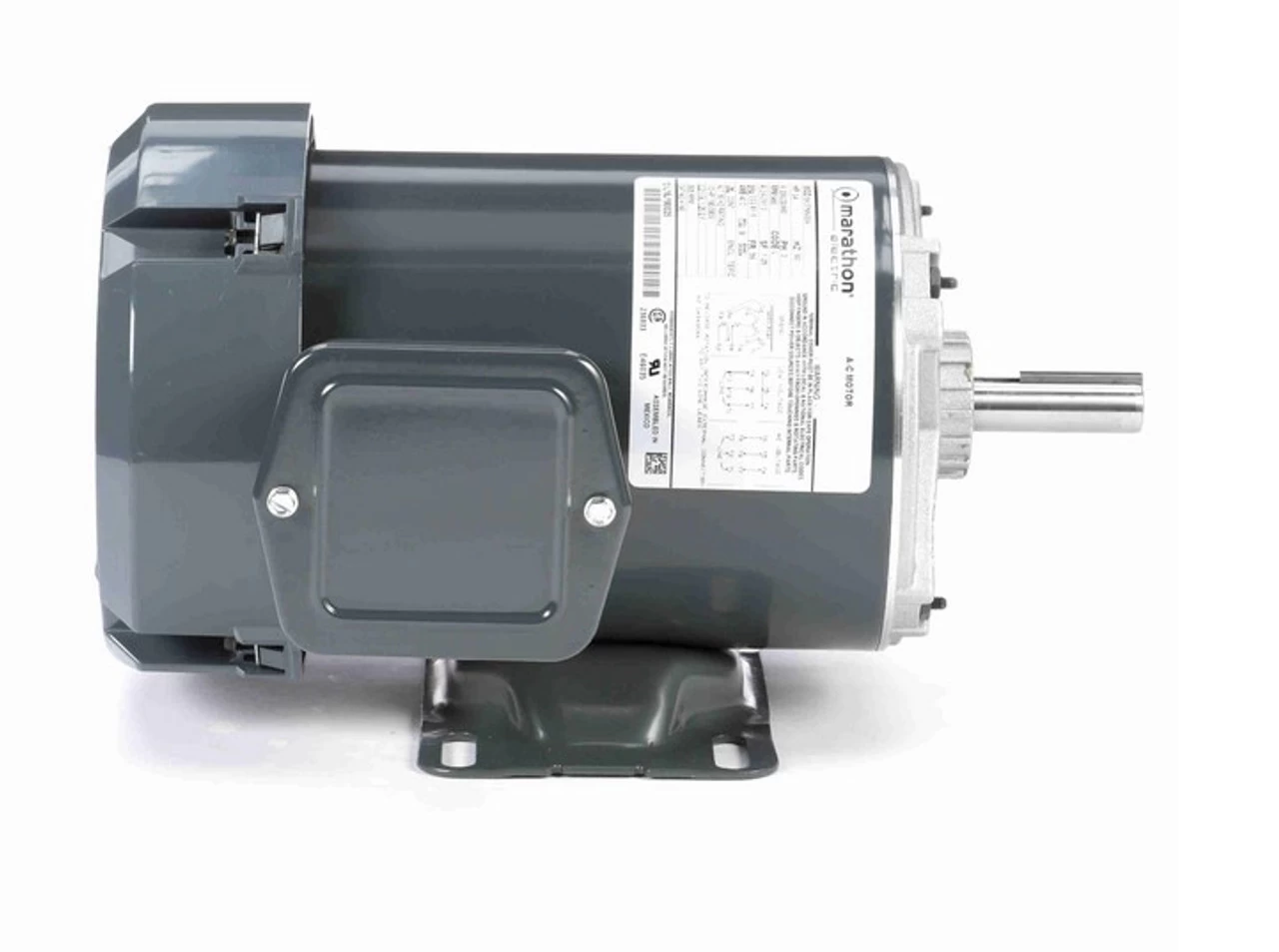

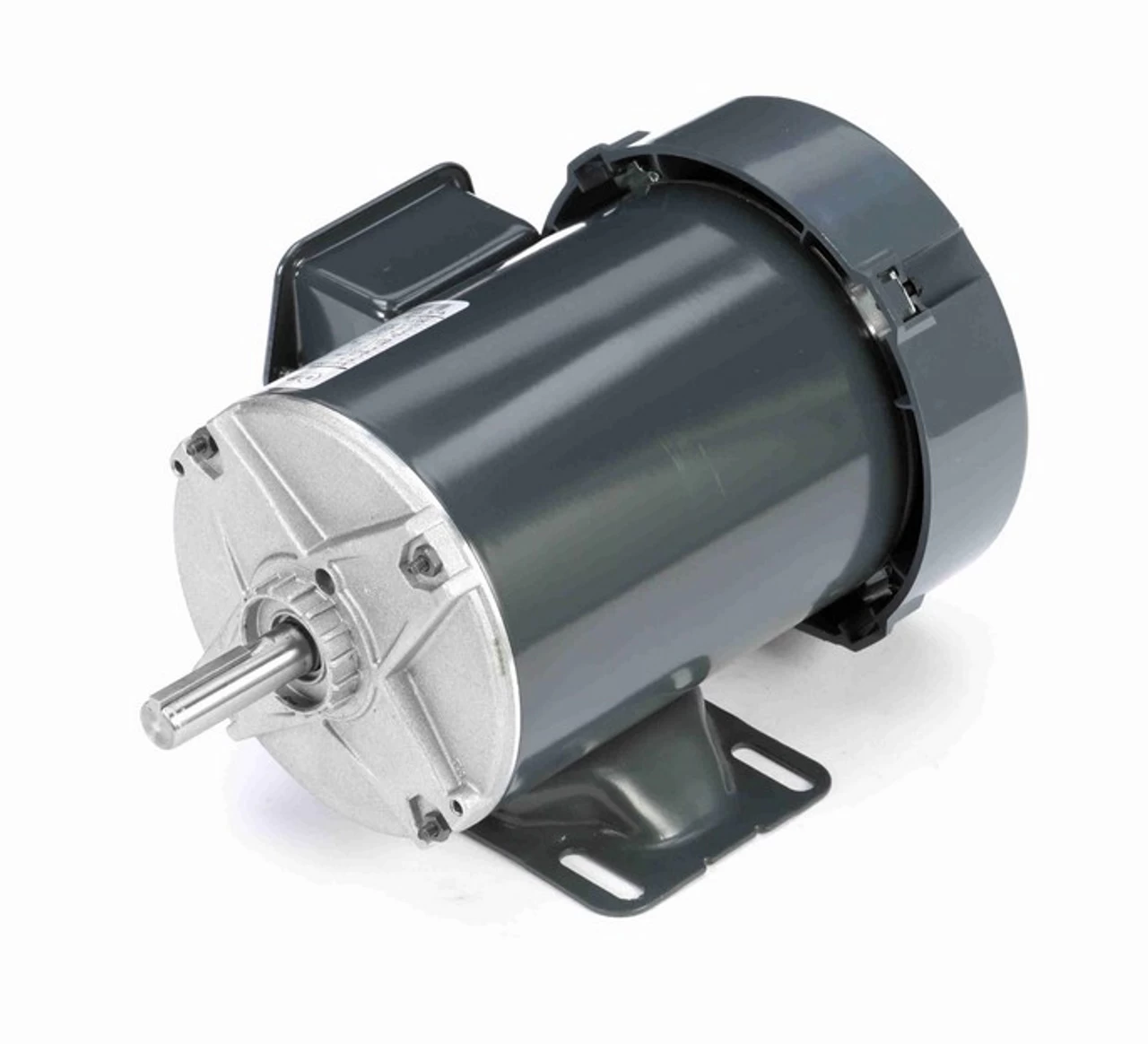

K160 Marathon 3/4 Hp 208-230/460V 3600 RPM 3-Phase 56 Frame TEFC (rigid Base) Motor

• 3/4 hp 3600 RPM, 2.6-2.5/1.3 amps 208-230/460 Volts 60hz. Three Phase
• NEMA 56 frame, Keyed Shaft 5/8″ Diameter x 1 7/8″
• Service Factor: 1.25, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled

Marathon Model:5K37NN30
Replaces Leeson C6T34FB2E, 110313.00
