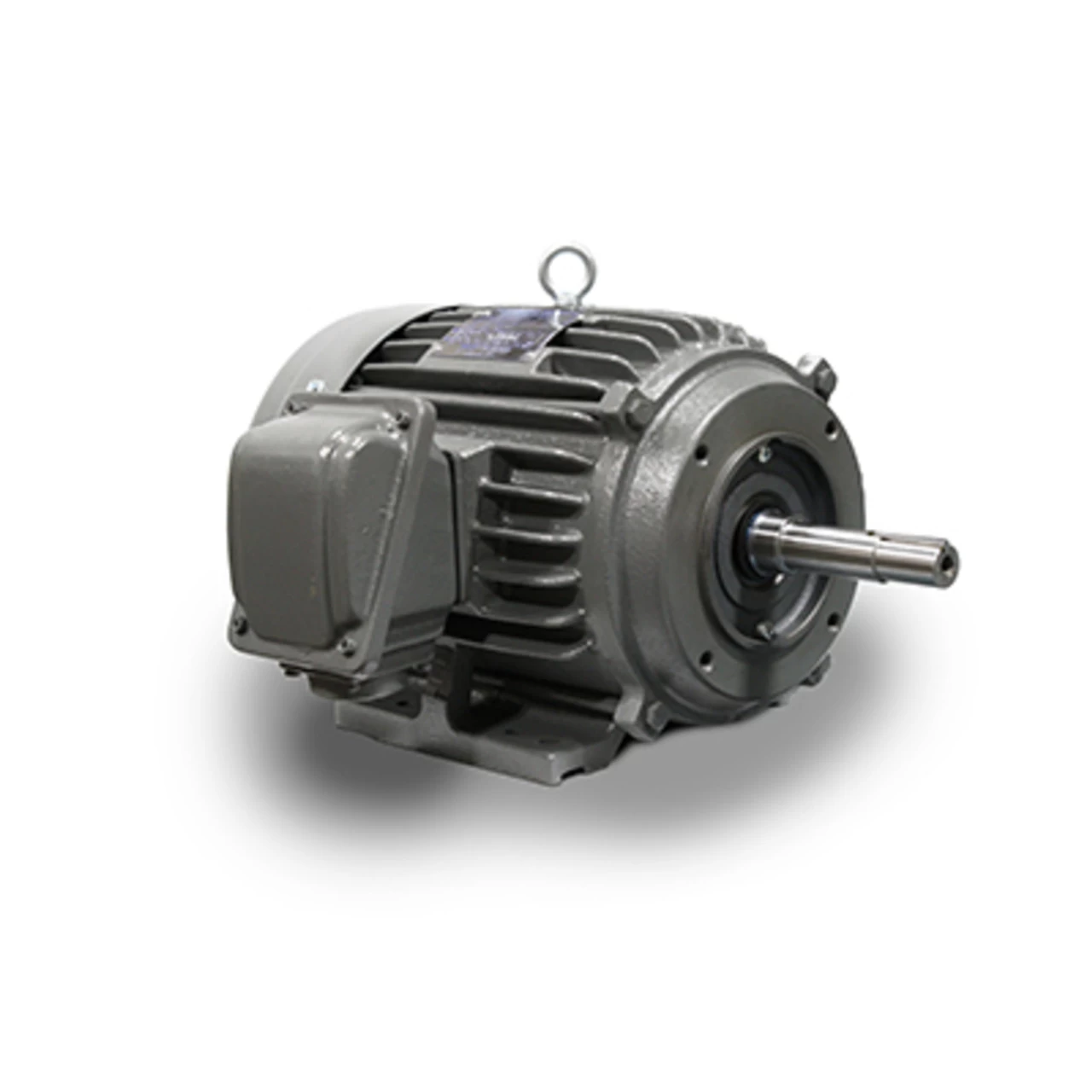

JMP0402 TECO Westinghouse 40 Hp 3600 RPM 324JM Cast Iron Frame 230/460V TEFC Close-Coupled 3-Phase Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 40 hp 3600 RPM, 88.4/44.2 amps 230/460 Volts 60hz. Three Phase
• NEMA 324JM Frame, Special Shaft

• Cast Iron Frame, Enclosure: Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
