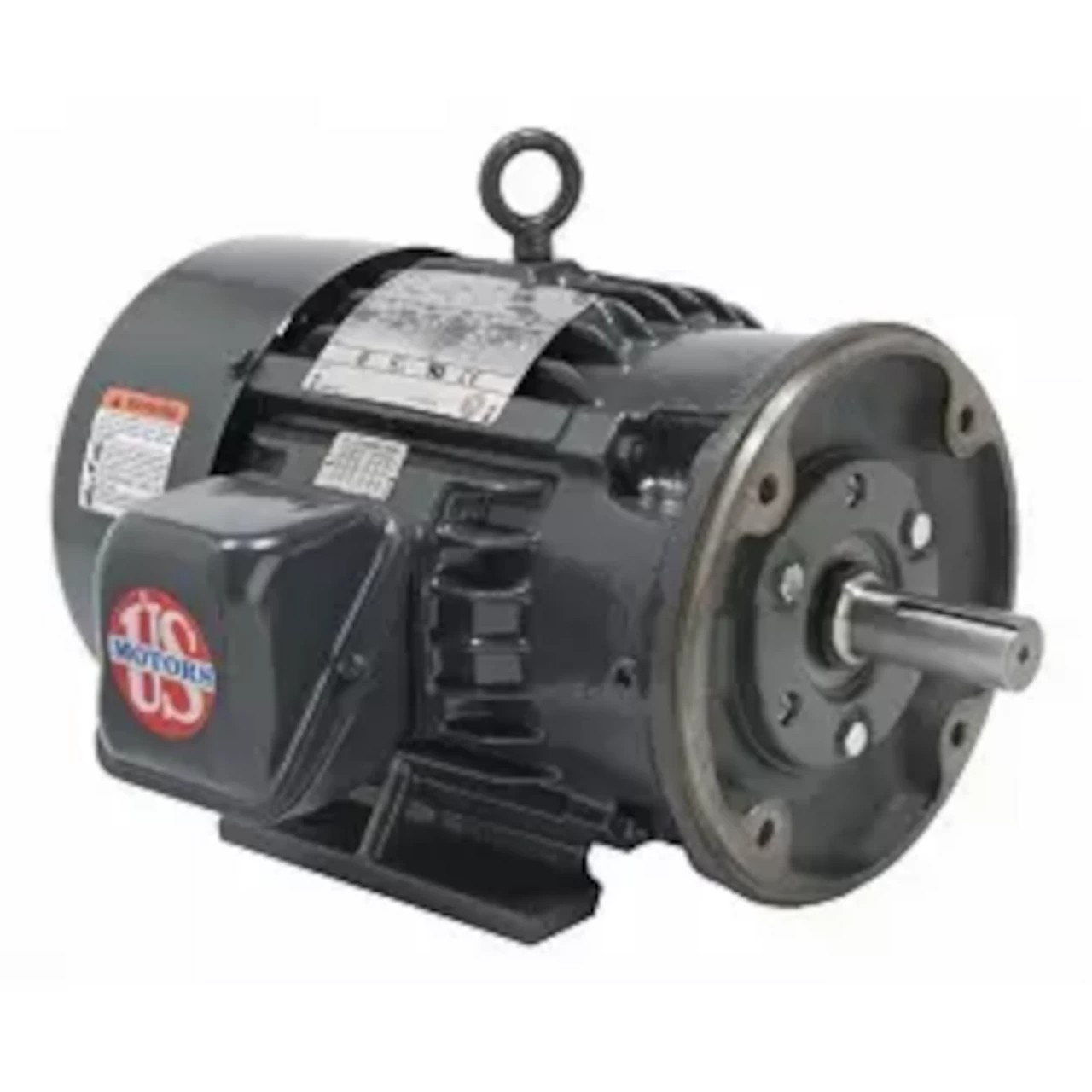

HD2V2BC Nidec 2 Hp 1800 RPM 145TC (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor
Original price was: $320.00.$96.99Current price is: $96.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 2 hp 1800 RPM, 5.3/2.7 amps 230/460 Volts 60 Hz Three Phase Motor

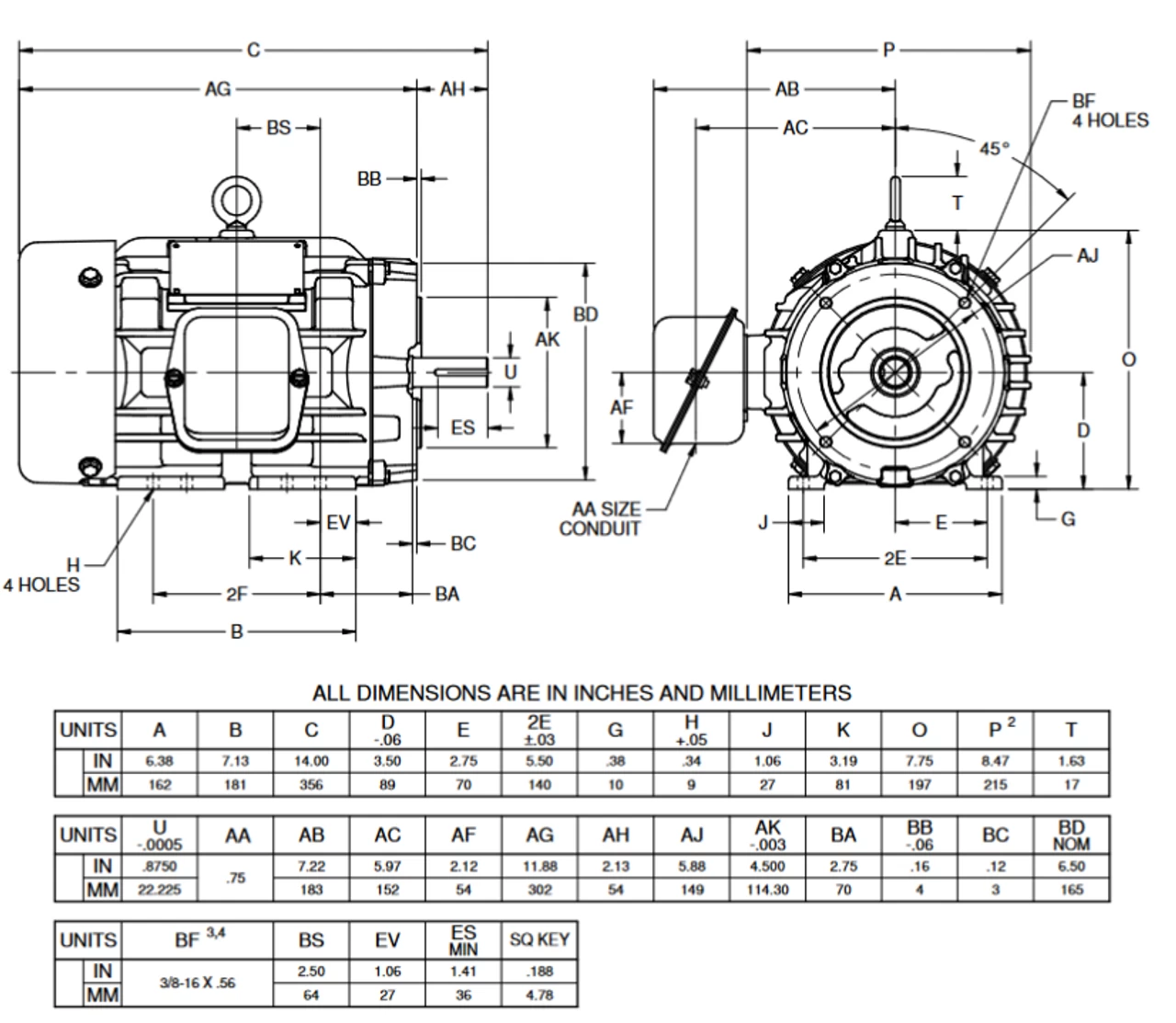

- NEMA 145TC Cast Iron Frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Speed controllable C-Face motor for material handling, cranes and machine tools in hostile environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. GG61
