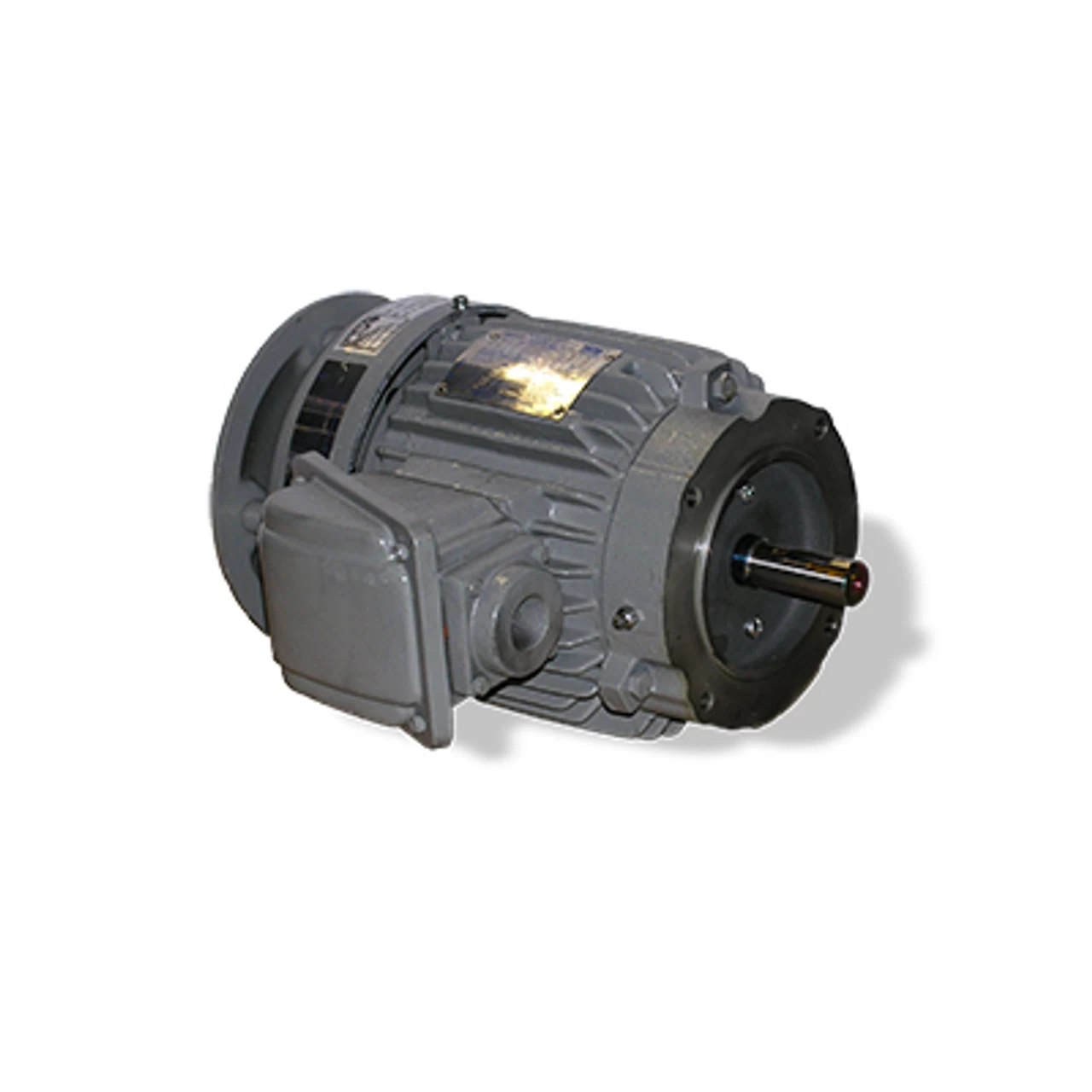

HBV0306C TECO-Westinghouse 30 Hp 1200 RPM 326TC Vertical 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 30 hp 1200 RPM, 37.5 amps 460 Volts 60Hz. Three Phase

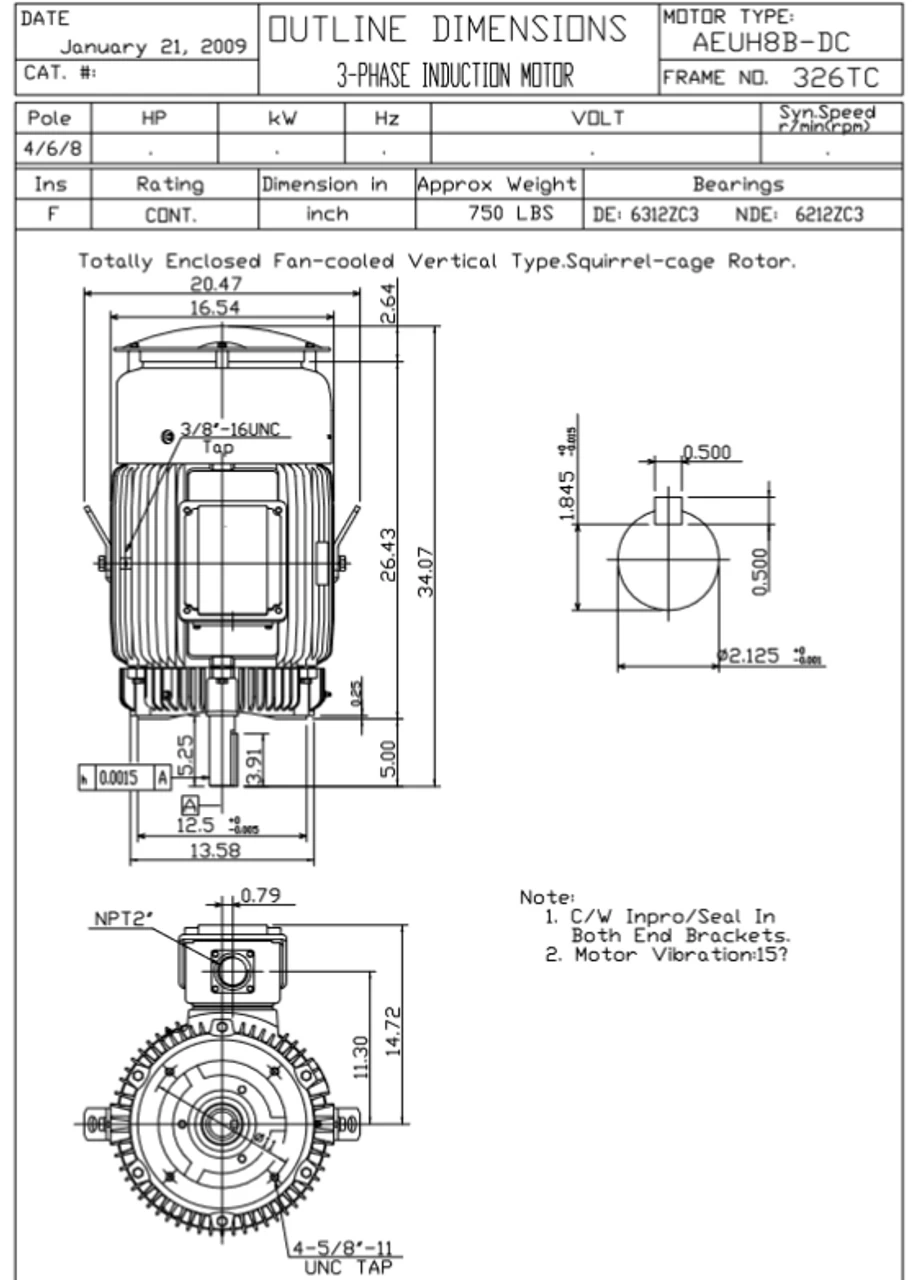

• NEMA 326TC Frame, 5 x 2 1/8″ Dia. Keyed Shaft

• Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15, Thermal Overload Protection: None
• No Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty


For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D
