HB0758 TECO-Westinghouse 75 Hp 900 RPM 444T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

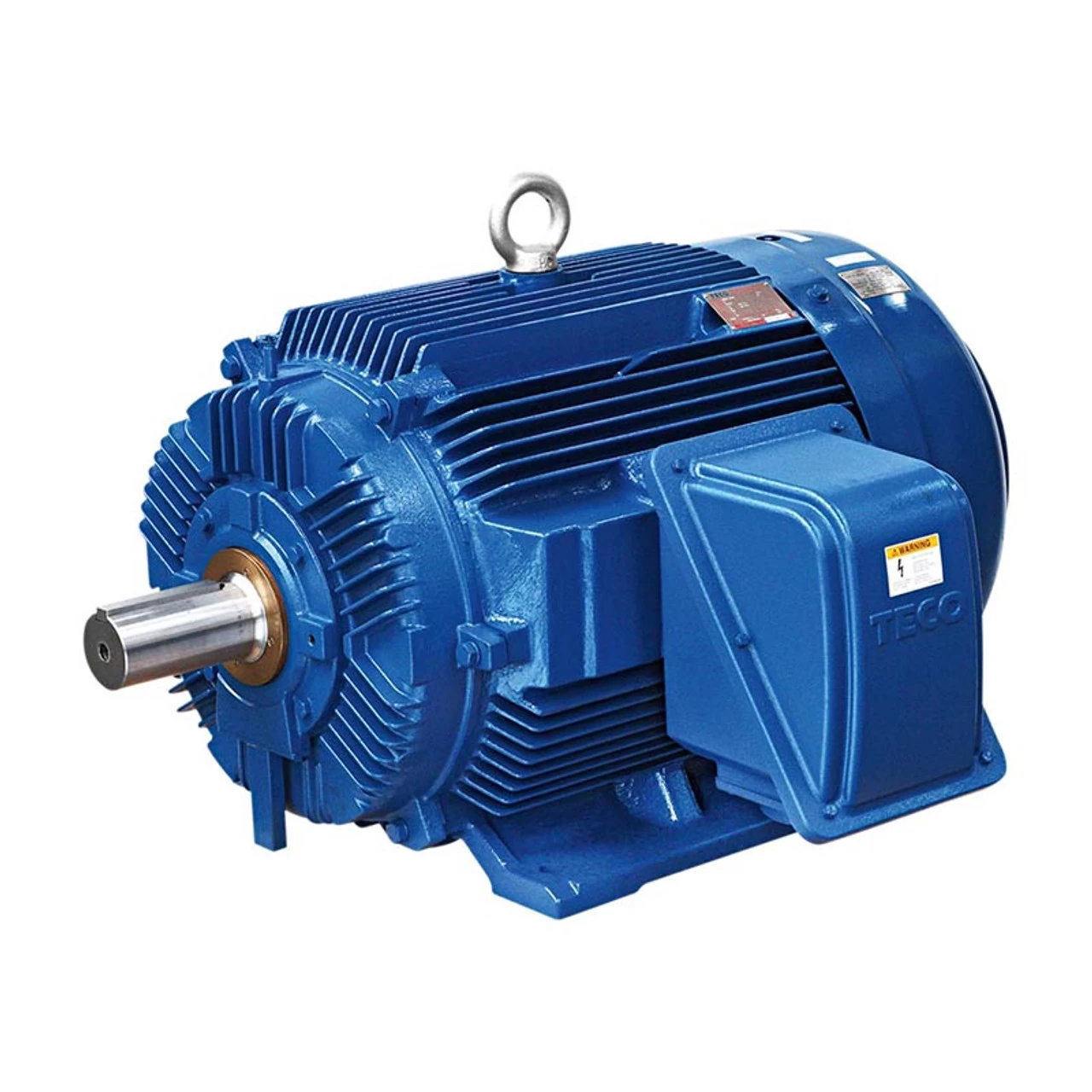

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 75 hp 900 RPM, 95.0 amps 460 Volts 60 Hz Three Phase
• NEMA 405T Frame, 8 1/2 x 3 3/8″ Dia. Keyed Shaft

• Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty


Part of the E2-E841 family of motors. For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D
