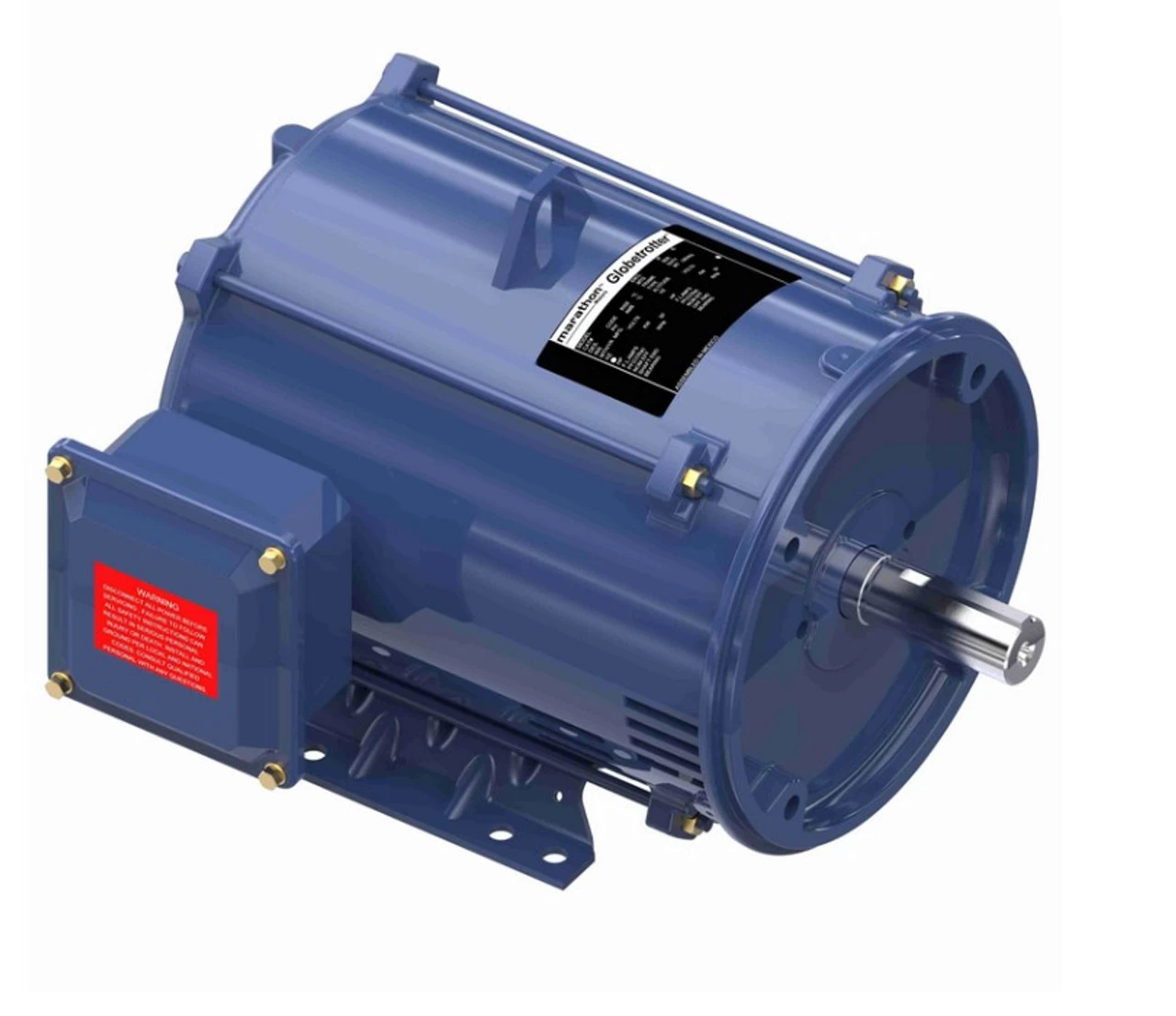

GT0210 Marathon 3 Hp 208-230/460V 1800 RPM ODP 182TC Frame 3-Phase Motor

• 3 hp 1800 RPM, 8.6-8.0/4.0 amps, 208-230/460 Volts 60 Hz, 3-Phase
• NEMA 182TC Frame Keyed Shaft 2 3/4″ x 1 1/8″ Diameter, 1 speed
• Service Factor = 1.15, Thermal Protection = None
• Rigid Base, Reversible, Ball Bearings, Class F insulation
• 1 Year Manufacture Warranty

General purpose motor with a C-face mount. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. ODP = Open Drip Proof GT0210
