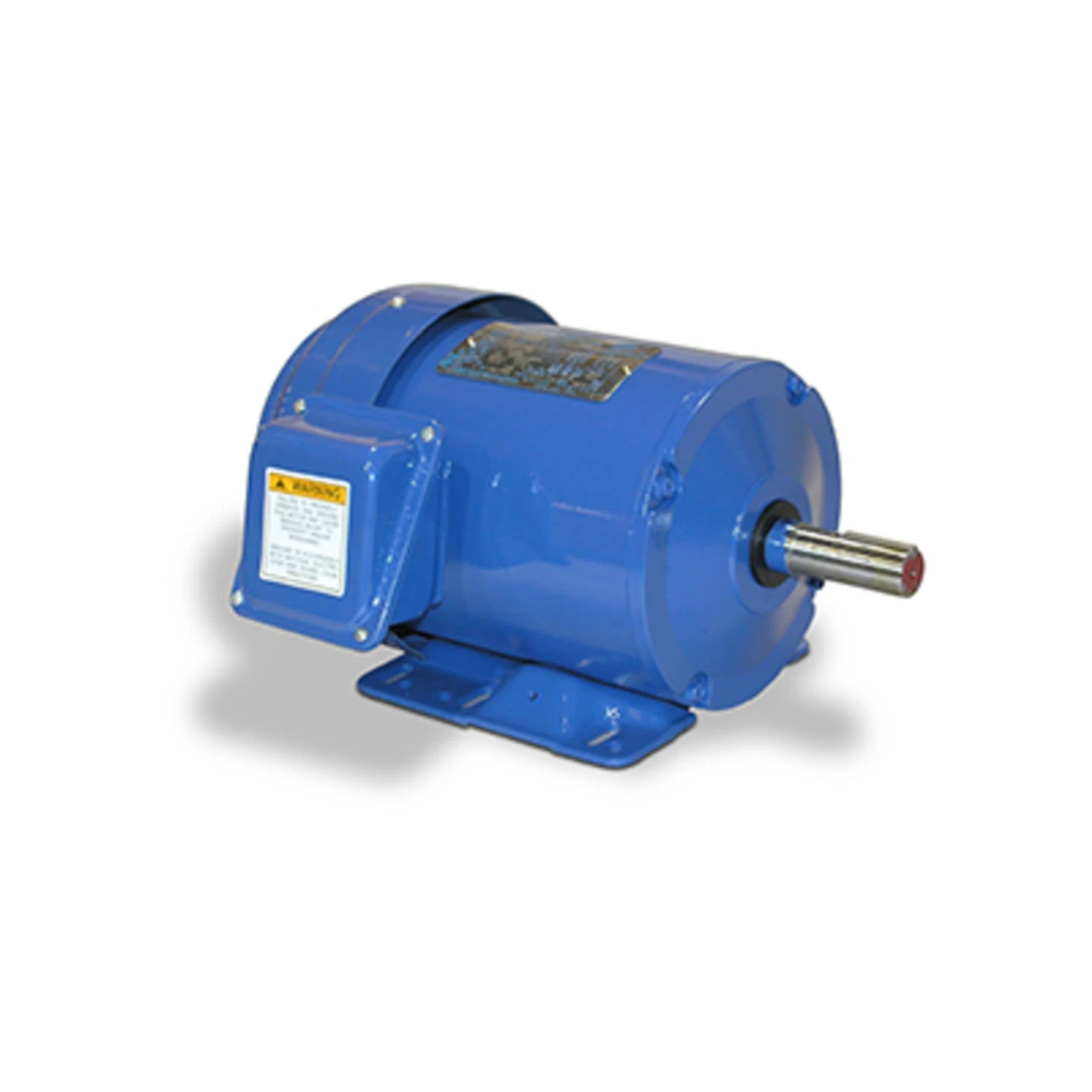

GP0022G TECO Westinghouse SGR 2 Hp 3600 RPM 143/145TC Frame 230/460V TEFC 3-Phase Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 2 hp 3600 RPM, 4.92/2.46 amps 230/460 Volts 60 Hz. Three Phase
• NEMA 143/145TC Frame, Keyed Shaft 7/8″ Diameter x 2 1/4″

• Rolled Steel Frame, Enclosure: Totally Enclosed Fan Cooled (IP44)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty

Motor comes with Shaft Grounding Rings (SGR) to protect bearings from excessive currents. Applications: Fans & Blowers, Pumps, Compressors, Mixers, Conveyors, HVAC Equipment
