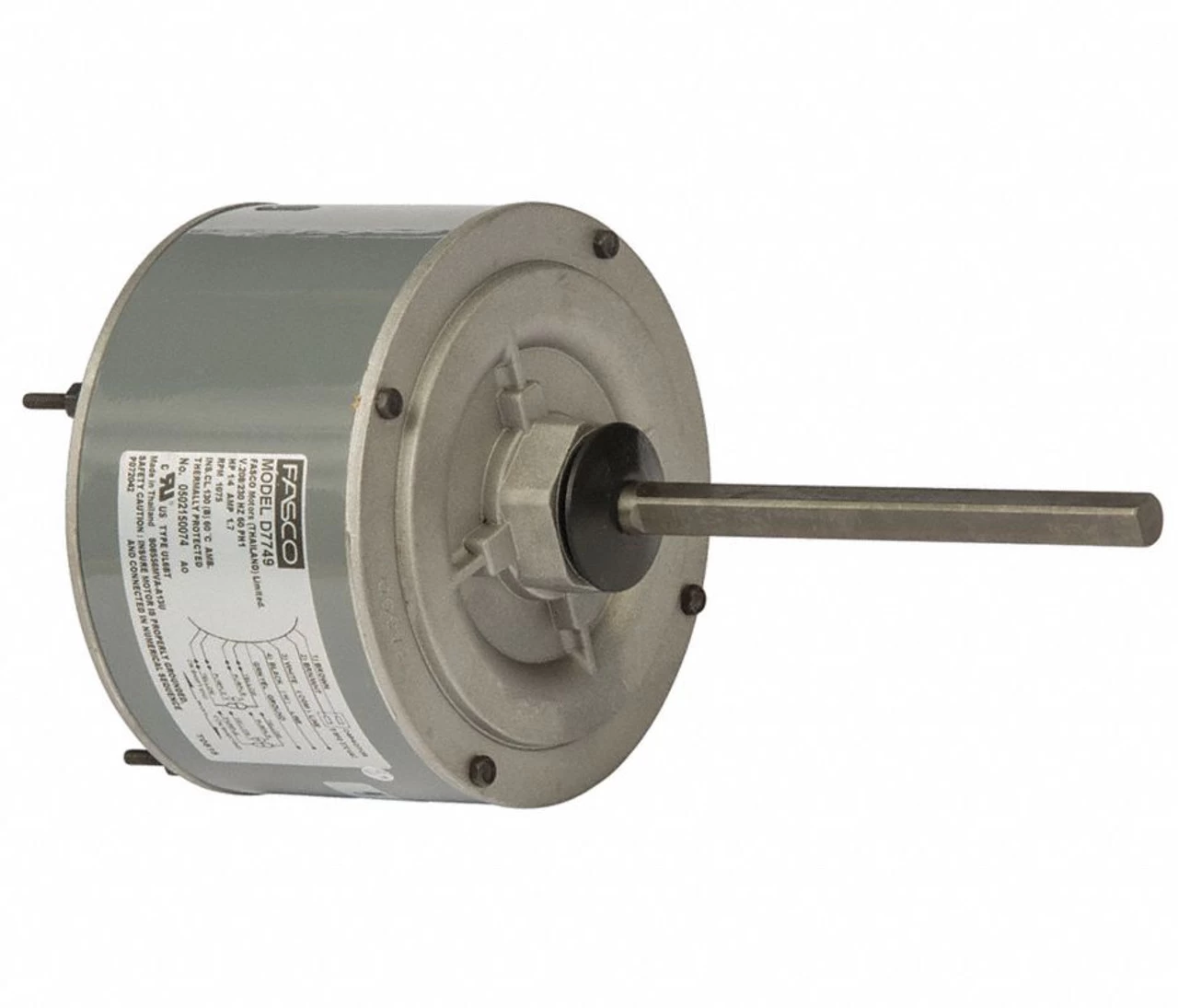

Fasco D7749 Motor | 1/4 Hp 1075 RPM 5.6″ Diameter 208-230 Volts

• 1/4 hp 1075 RPM, 1.7 amps, 230 Volts 60hz.
• Shaft: 1/2″ x 6 1/2″ Rotation = Reversible
• Bolt Circle – 5.2″
• Belly Band Mount or Base Mount
• Required 5 MFD 370V Capacitor Included
• 60 degree C ambient temp
• Ball Bearings
• Motor Length Less Shaft = 3 1/4″
• 1 Year Manufacture Warranty

Application Information: Condenser Fan (Air Conditioner). Permanent Split Capacitor motor, open ventilation-air over. All angle mount bearings, Closed end shield-shaft end, CSA certified, UL recognized, Includes shaft slinger, 60 degrees ambient temperature rating. Dayton 49VT86
