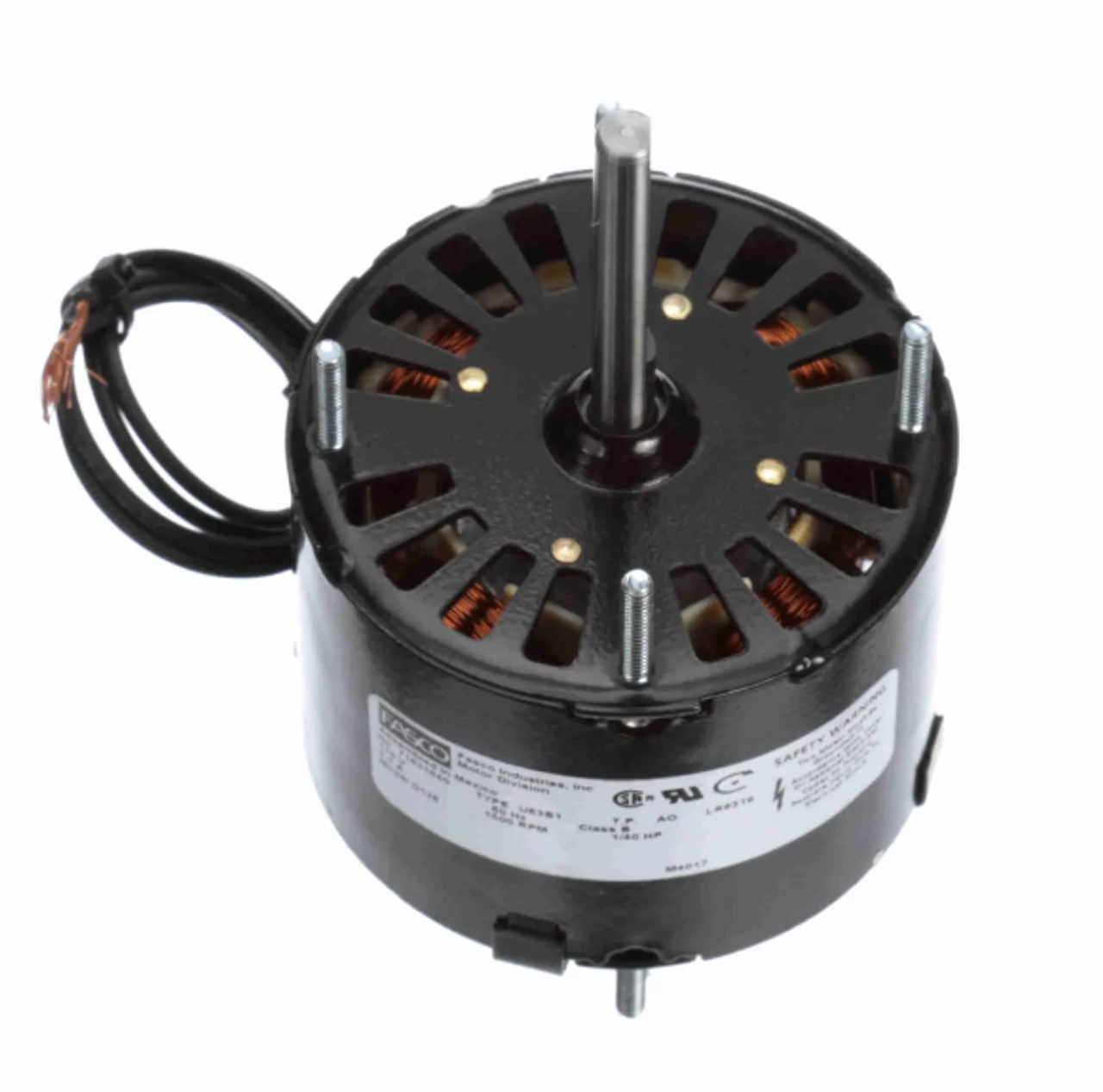

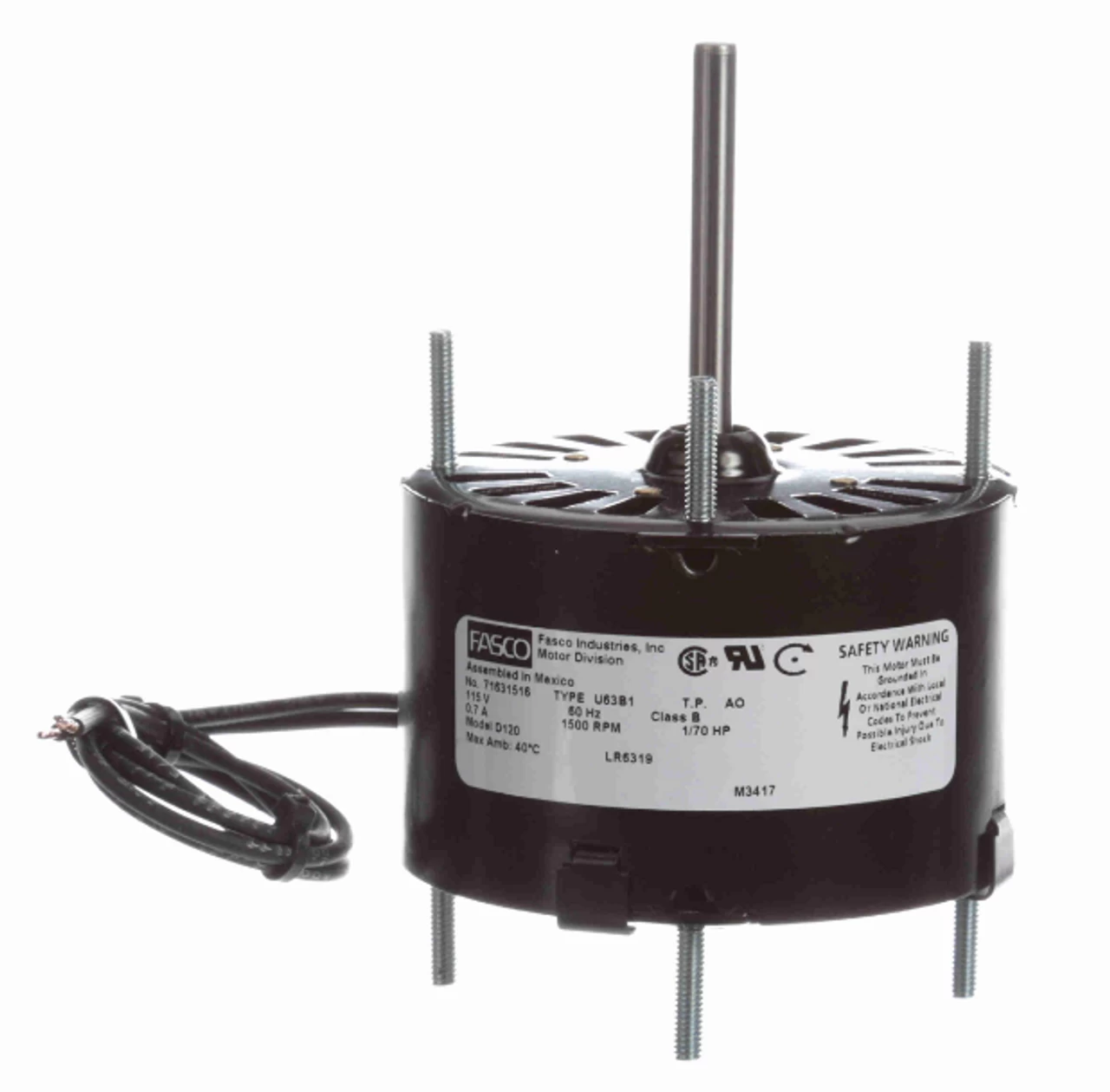

Fasco D120 Motor | 1/70 Hp 1500 RPM CW 3.3″ Diameter 115 Volts

• 1/70 hp 1500 RPM, .7 Amps, 115 Volts 60 hz.
• Shaft: 1/4″ x 2 1/4″
• Rotation = CWSE
• Semi Enclosed
• Stud Mount – Bolt Circle – 2.85″
• 4 mounting studs each end
• Motor Length Less Shaft = 2 1/8″
• Sleeve Bearings
• 1 Year Manufacture Warranty

Shaded Pole, Open Ventilation, Air Over. Extra studs can be cut off if not needed. Shaft can also be shortened if necessary. Shaft bushing is also available, 1/4″ to 5/16″ (part # KIT240). Motor is common to bath fans, humidifier and dehumidifiers, to name a few applications. Suggested replacement for 8767-8203, 7163-1516. Dayton 241X08
