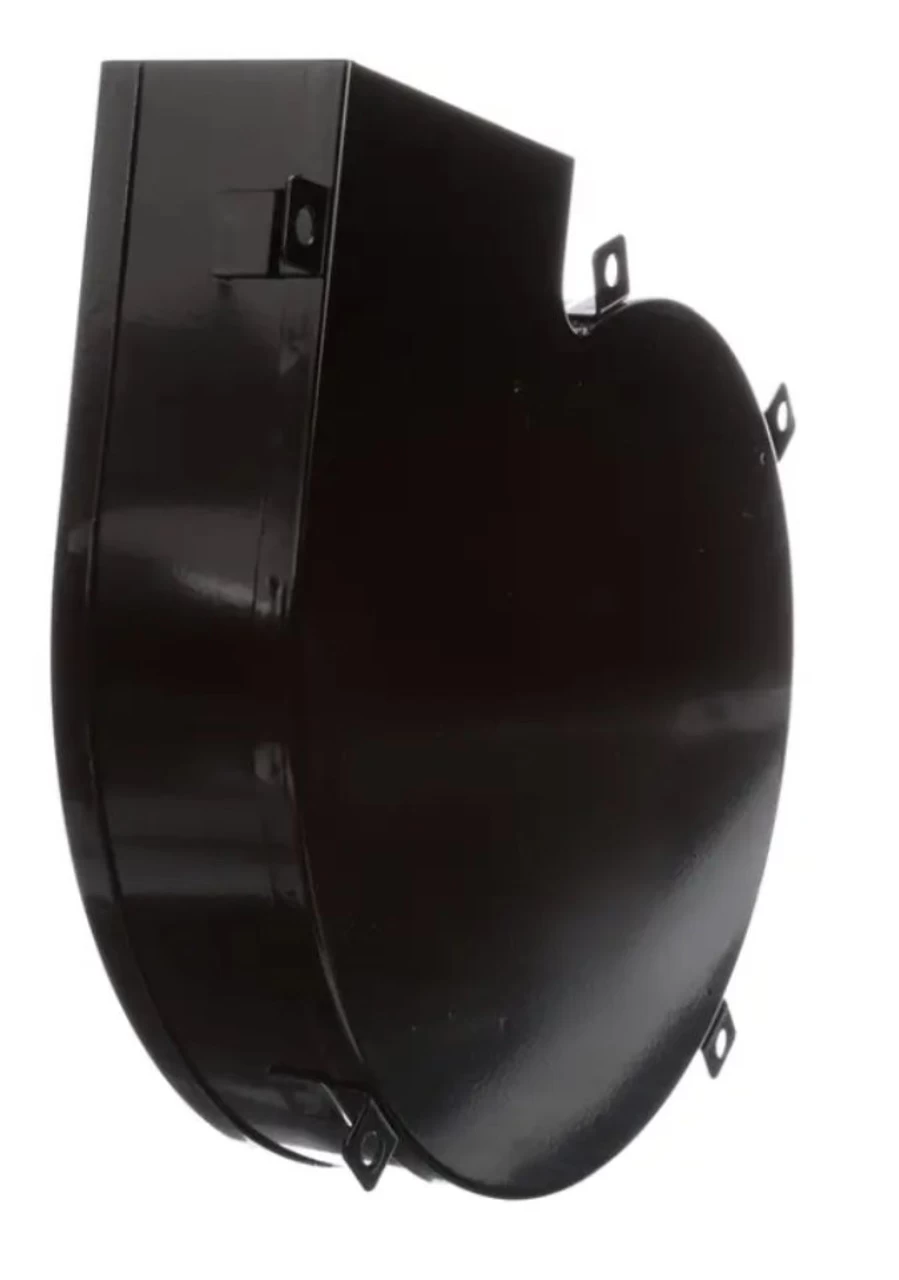

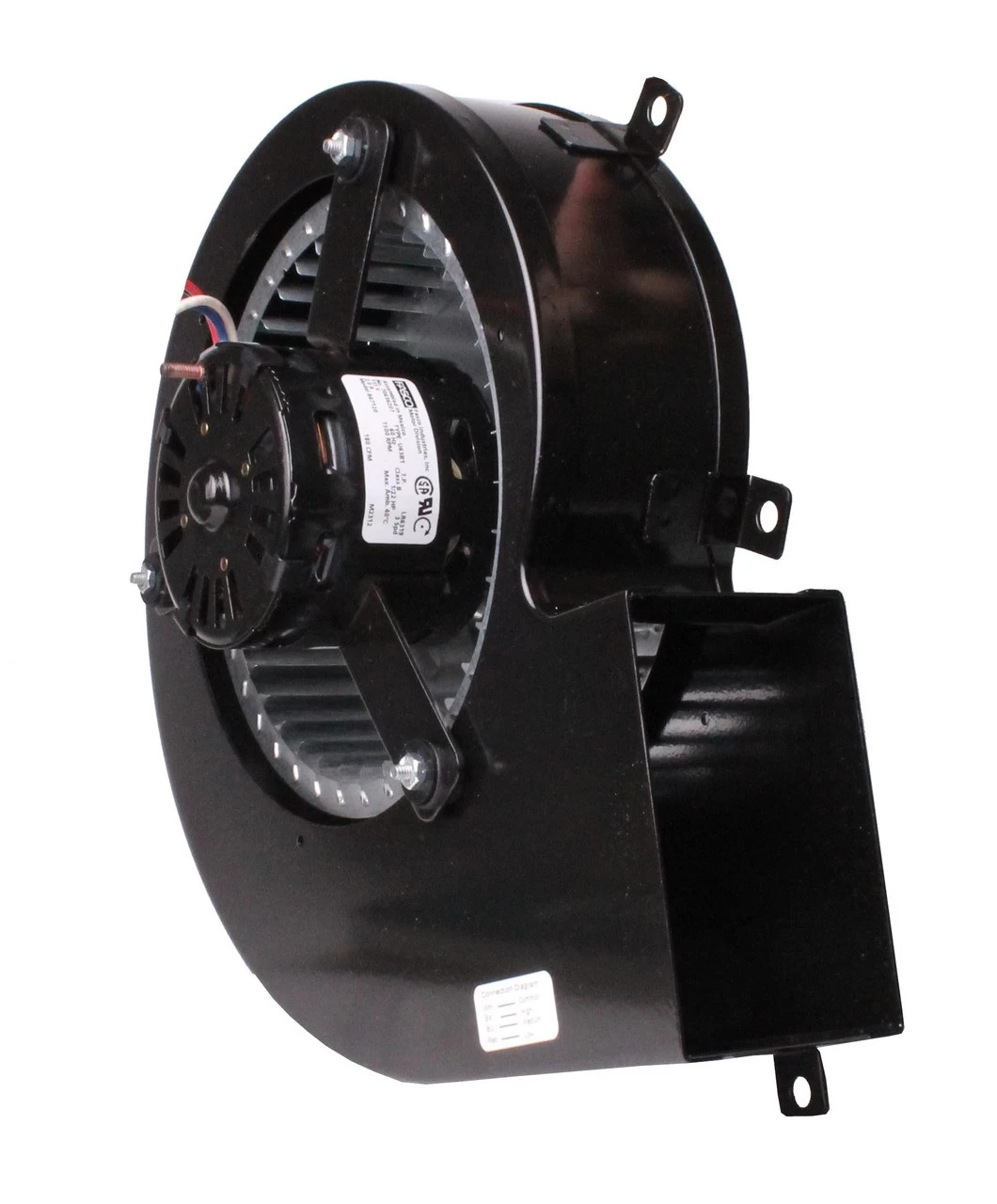

GENUINE OEM FASCO B47120 BLOWER
APPLICATIONS: FIREPLACE, PELLET STOVE, WOOD BURNING STOVES

• 1/22 hp, 2.0 amps, 115 Volts 60hz.
• 1500 RPM, 3-Speed High/Medium/Low Speeds
• Name Plate CFM 180/144/112
• Sleeve Bearings; Rotation CWSE

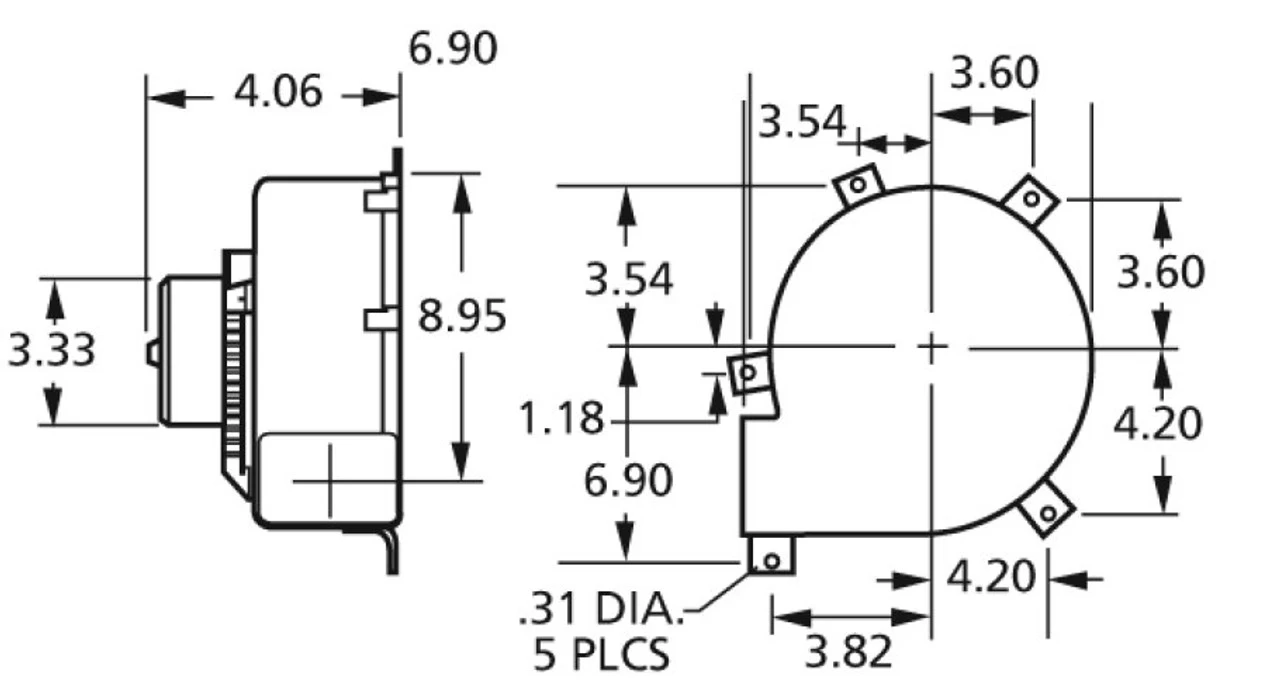

• Outlet size: 4-1/4″ x 2-5/8″ approximate
• Wheel: 7-1/8″ x 2-1/8″
• 1 Year Manufacture Warranty

Suggested replacement reference for:
Fasco 7063-6207, 7063-5673, 7163-7576,7063-7576, 7063-6512
7063-7662, 7063-5986, 7063-5554 Appalachian Stove
7063-6596 Heatilator
7063-6568 Hutch Mfg
7063-8057 Martin Industries
7063-9465 Pacific Energy
7063-5996 Rockhill Metal
7063-5957 US Stove

Dayton Equivalent = 4C754, 1TDR2, 161L75

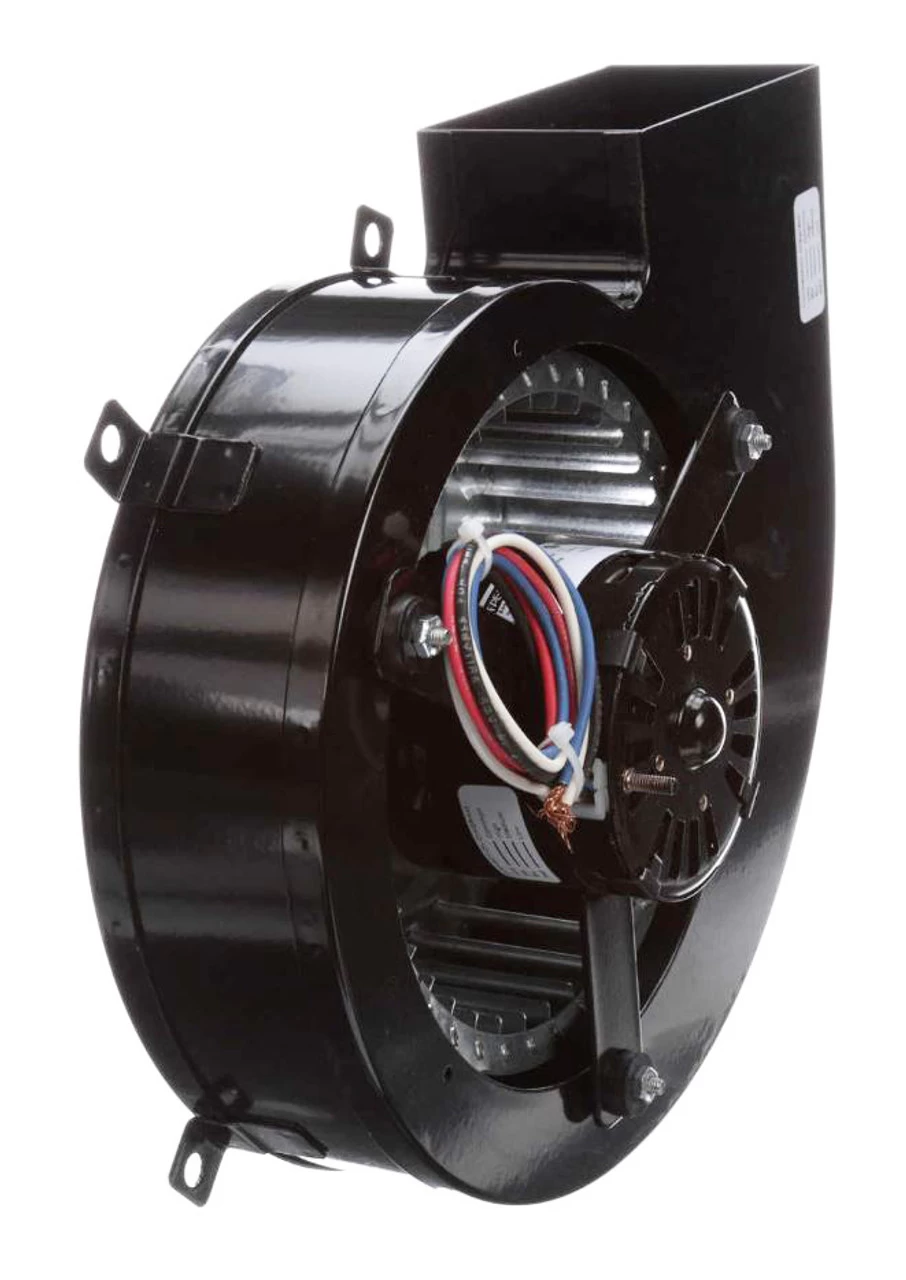

Wiring: Common = White, Hi = Black, Med = Blue, Low = Red (Putting power to two speeds at same time will burn the motor up)

Not recommended for speed control
