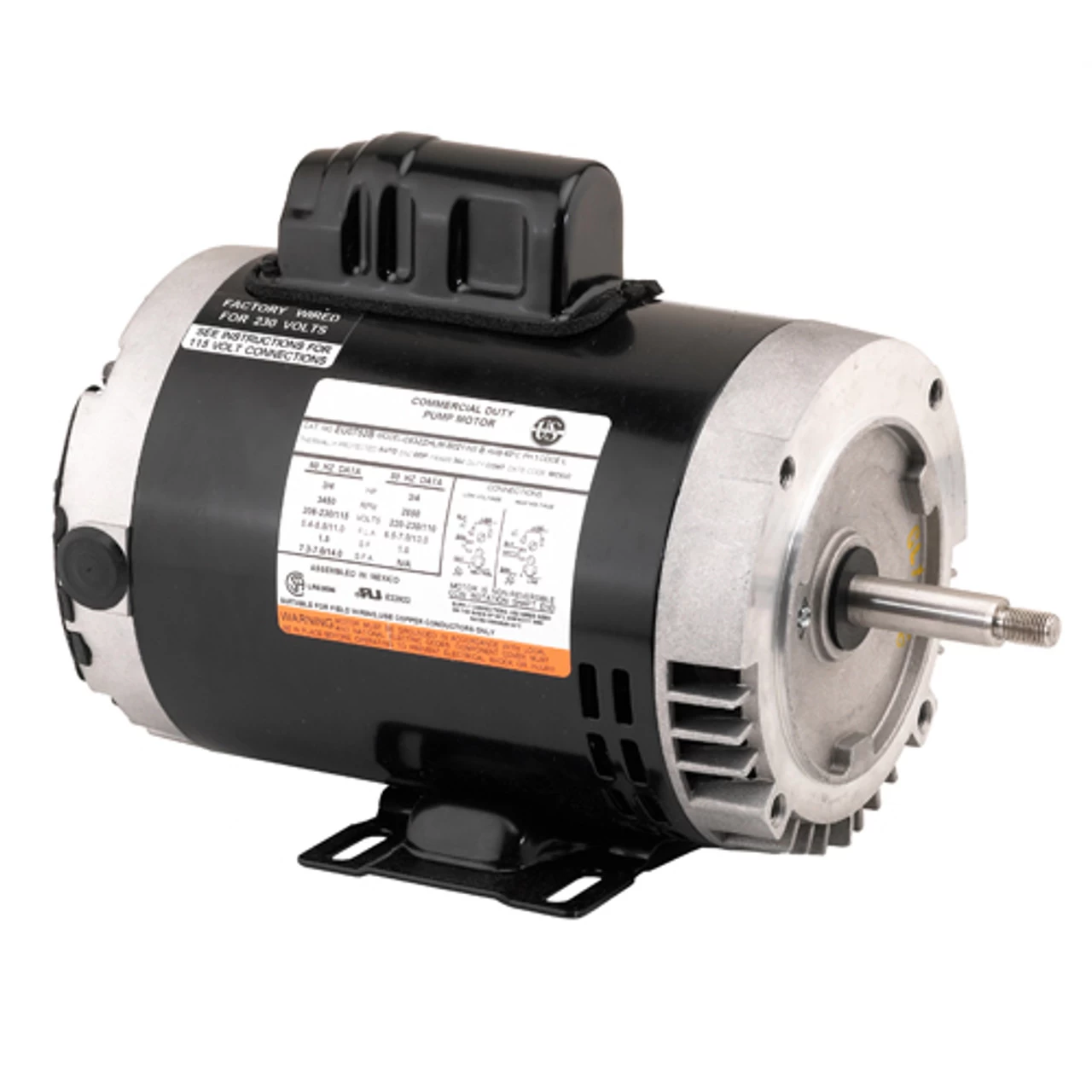

EU1002B Nidec 1 Hp 3600 RPM 115/208-230V 56J Frame (Rem Base) ODP 1-Phase Electric Motor
Original price was: $268.52.$99.99Current price is: $99.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1 hp 3600 RPM, 13.2/6.8-6.6 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
- NEMA 56J Frame, Shaft 5/8″ Diameter x 1 7/8″ Long with threaded tip
- Service Factor: 1.4, Overload protection = Auto
- C-Face or Removable Base Mount, Ball Bearings, Class B Insulation, CCW drive end
- 1 Year Manufacture Warranty
Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. C063HKZ5009013J
