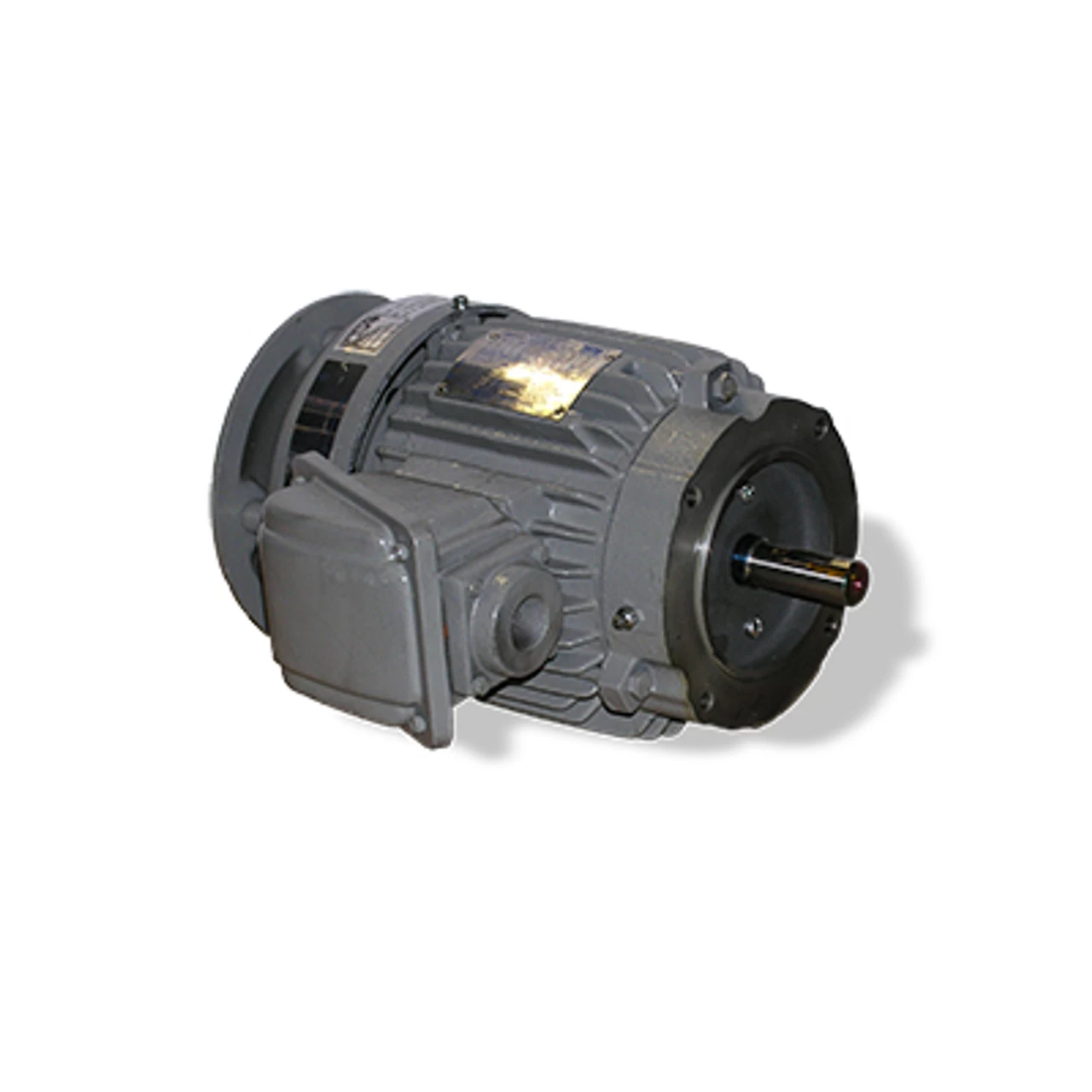

EPV1002C TECO-Westinghouse 100 Hp 3600 RPM 405TSC Vertical 230/460V TEFC Severe Duty Petro-Chem 3-Ph Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 100 hp 3600 RPM, 214/107 amps 230/460 Volts 60Hz. Three Phase
• NEMA 405TSC Frame, 4 x 2 1/8″ Dia. Keyed Shaft

• Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty


For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D
