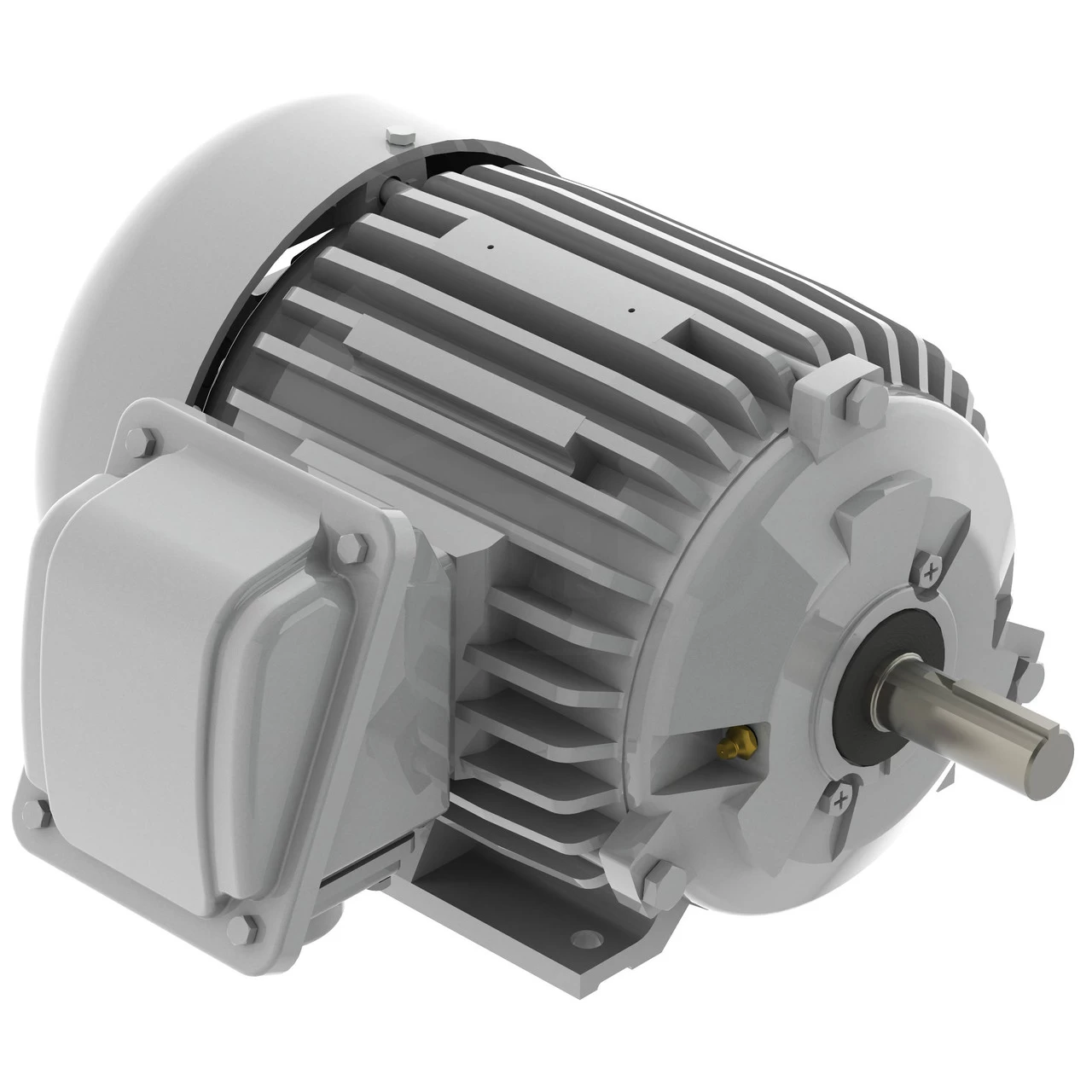

EP0302 TECO Westinghouse 30 Hp 3600 RPM 286TS Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 30 hp 3600 RPM, 66.4/33.2 amps 230/460 Volts 60Hz. Three Phase

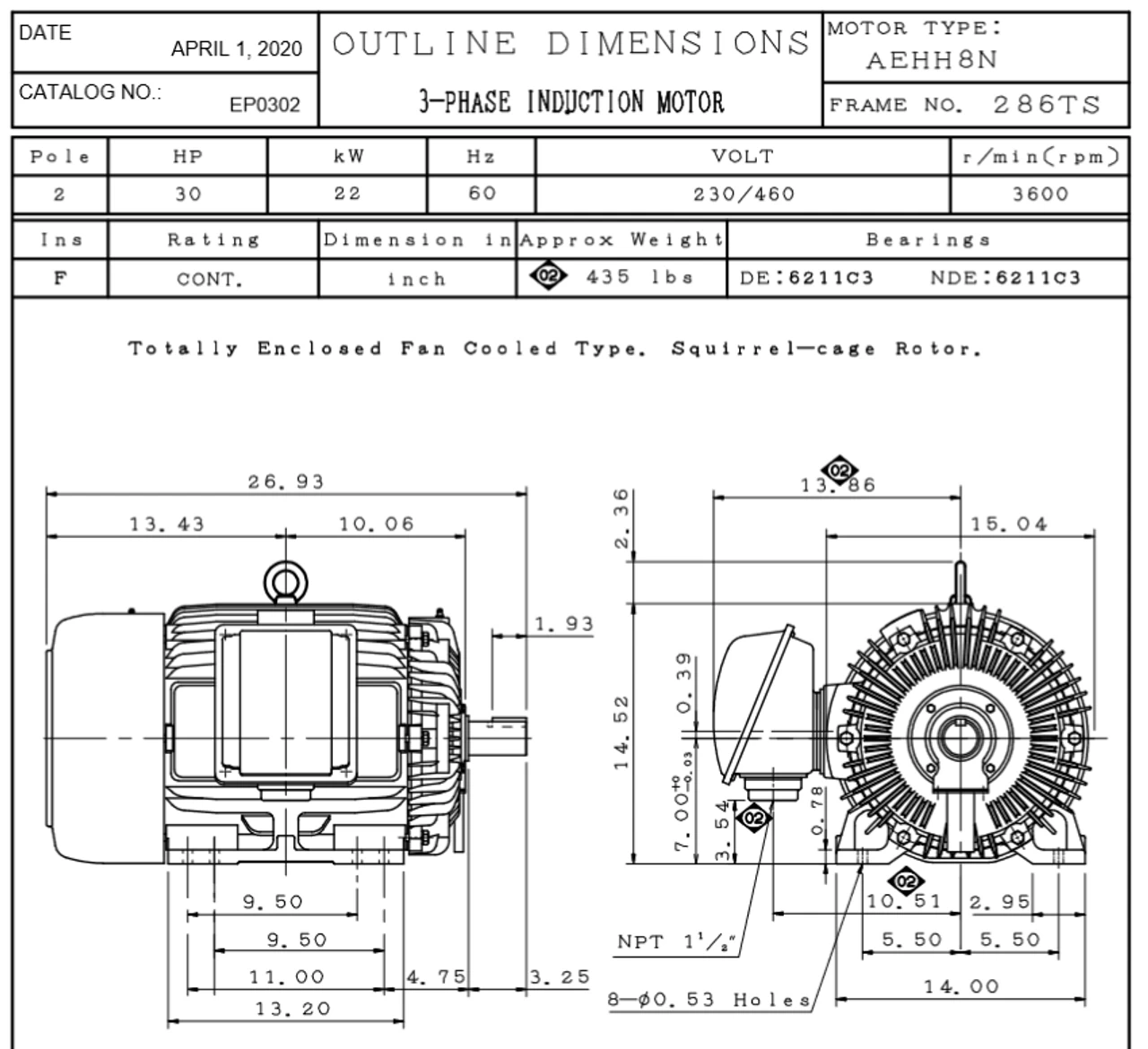

• NEMA 286TS Frame, 3 1/4 x 1 5/8″ Dia. Keyed Shaft

• Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty


Applications: Crushers, Compressors, Mixers, Conveyors, Any Severe Duty Application
