EE508 Nidec 3/4 HP 3600 RPM 3-Phase 208-230/460V 56C Frame (No Base) ODP Special Pump Motor
Original price was: $370.00.$96.99Current price is: $96.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
3/4 hp 3600 RPM, 2.7-2.8/1.4 amps 208-230/460 Volts 60 Hz Three Phase Motor
NEMA 56C Frame, Keyed Shaft 5/8″ Diameter x 1 7/8″ Long
Service Factor: 1.25, Overload protection = None
Face Mount, Ball Bearings, Class B Insulation, Reversible
1 Year Manufacture Warranty

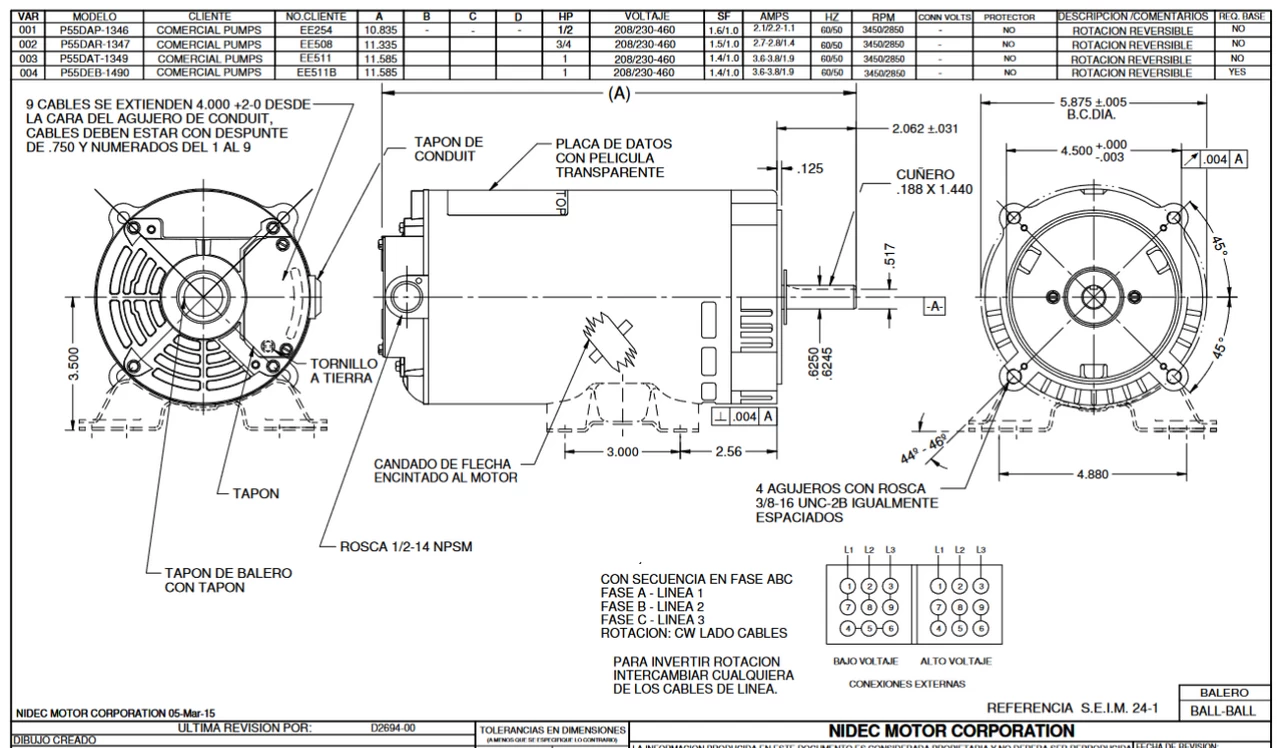

Special purpose three phase C- Face motor is usually used in commercial applications involving specialized pumps. Wiring diagram on motor name plate. ODP = Open Drip-Proof. P055DAR1347015J
