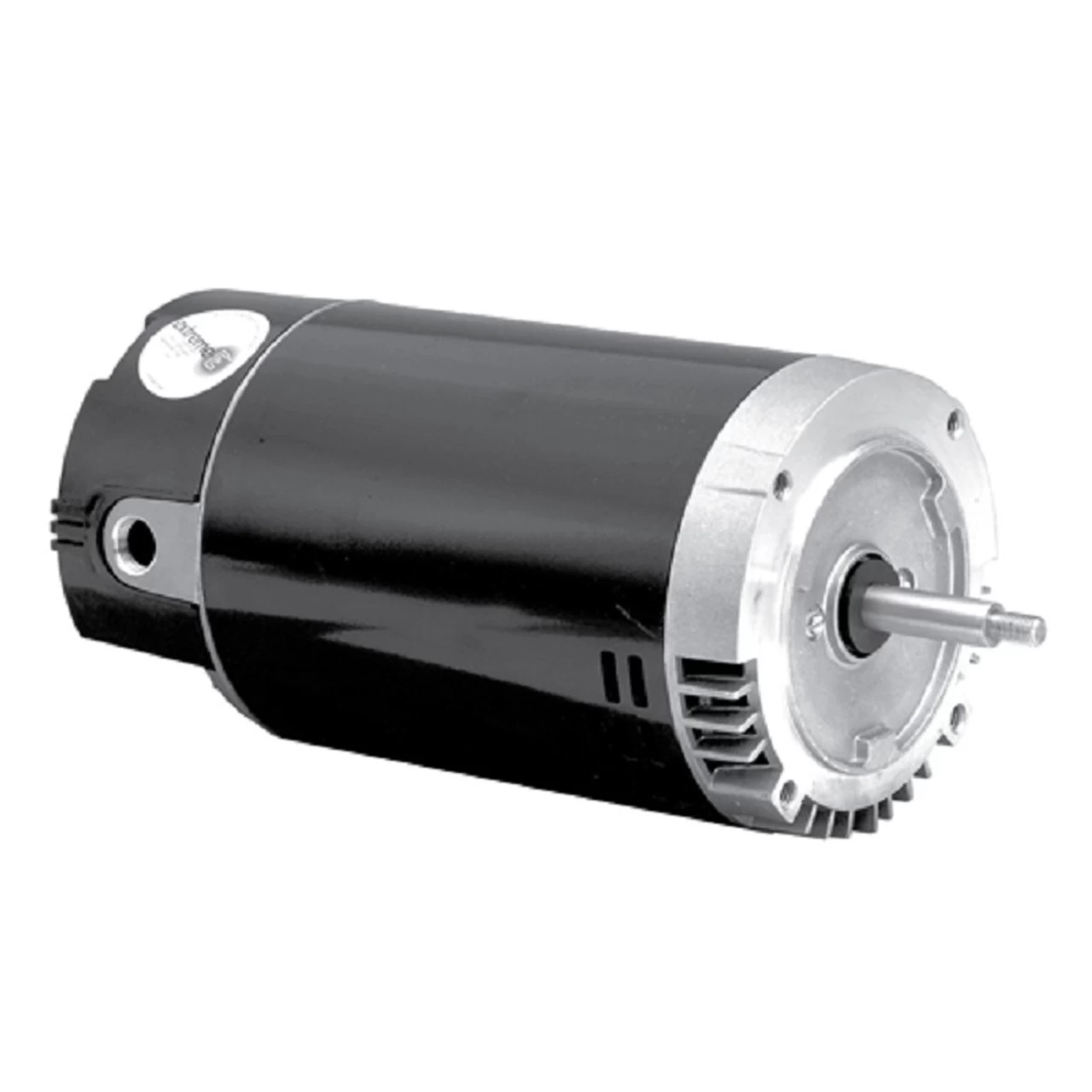

EE155 Nidec 1/2 HP 3600 RPM 3-Phase 208-230/460V 56J Frame (No Base) ODP Special Pump Motor
Original price was: $335.81.$99.99Current price is: $99.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
1/2 hp 3600 RPM, 1.8-1.7/0.85 amps 208-230/460 Volts 60 Hz Three Phase Motor
NEMA 56J Frame, Shaft 5/8″ Diameter x 1 7/8″ Long with threaded end
Service Factor: 1.6, Overload protection = None
Face Mount, Ball Bearings, Class F Insulation, CCW Drive End
1 Year Manufacture Warranty

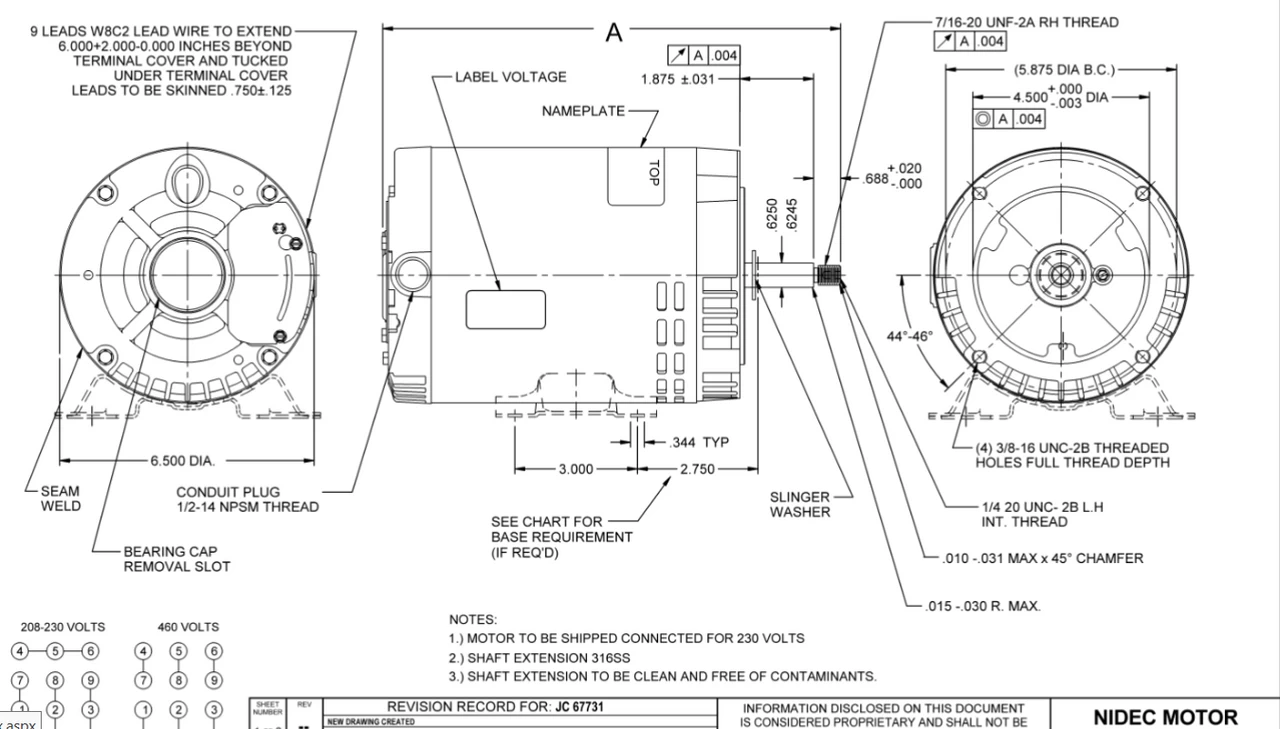

Special purpose three phase C- Face motor is usually used in commercial applications involving specialized pumps. Wiring diagram on motor name plate. ODP = Open Drip-Proof. P063EKU5009013J
