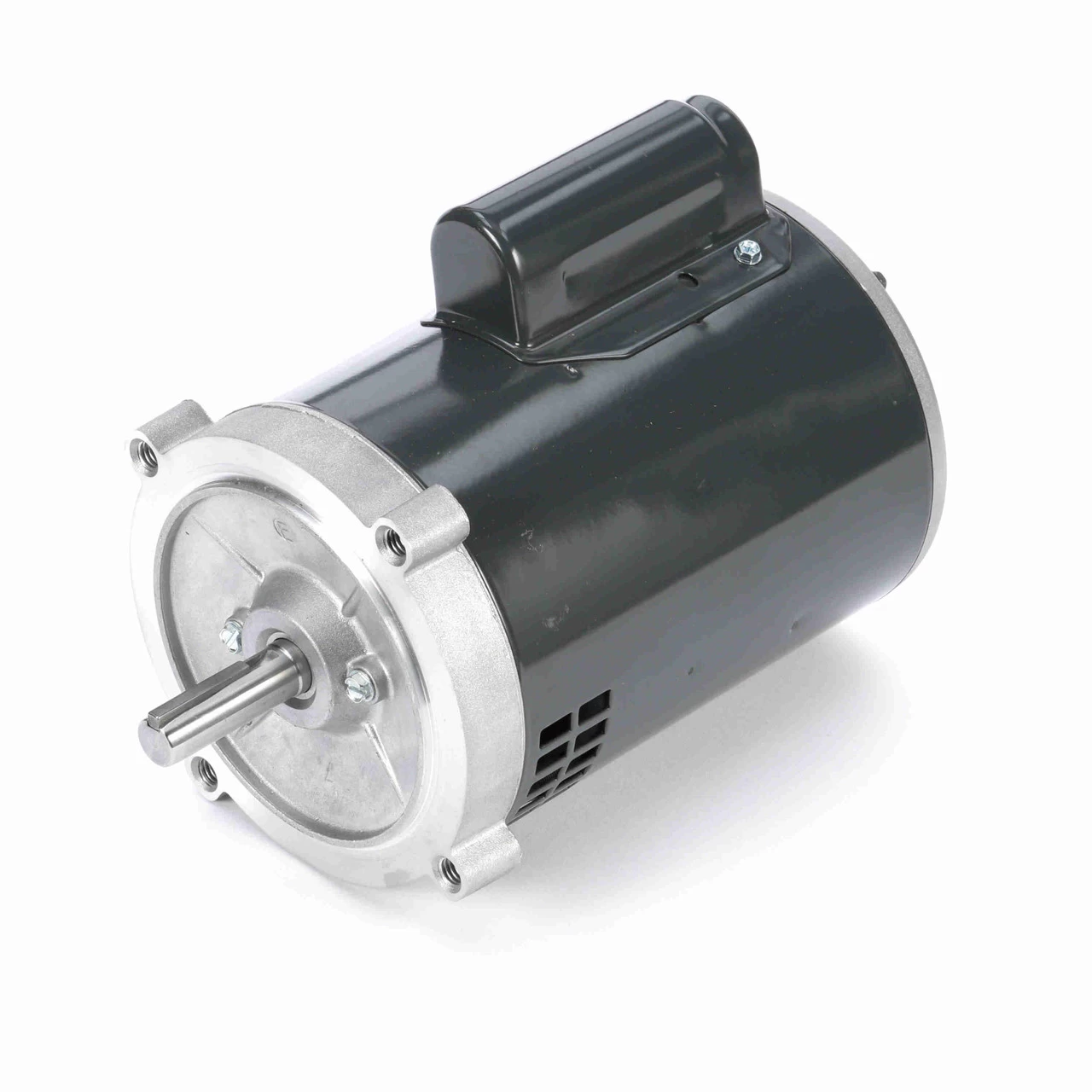

EC0332 Nidec 1/3 Hp 3600 RPM 115/208-230V 56C Frame (No Base) ODP 1-Phase Electric Motor
Original price was: $190.55.$96.99Current price is: $96.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1/3 hp 3600 RPM, 6.2/2.9-3.1 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
- NEMA 56C Frame, Keyed Shaft 5/8″ Diameter x 1 7/8″ Long
- Service Factor: 1.15, Overload protection = Auto
- Face Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty

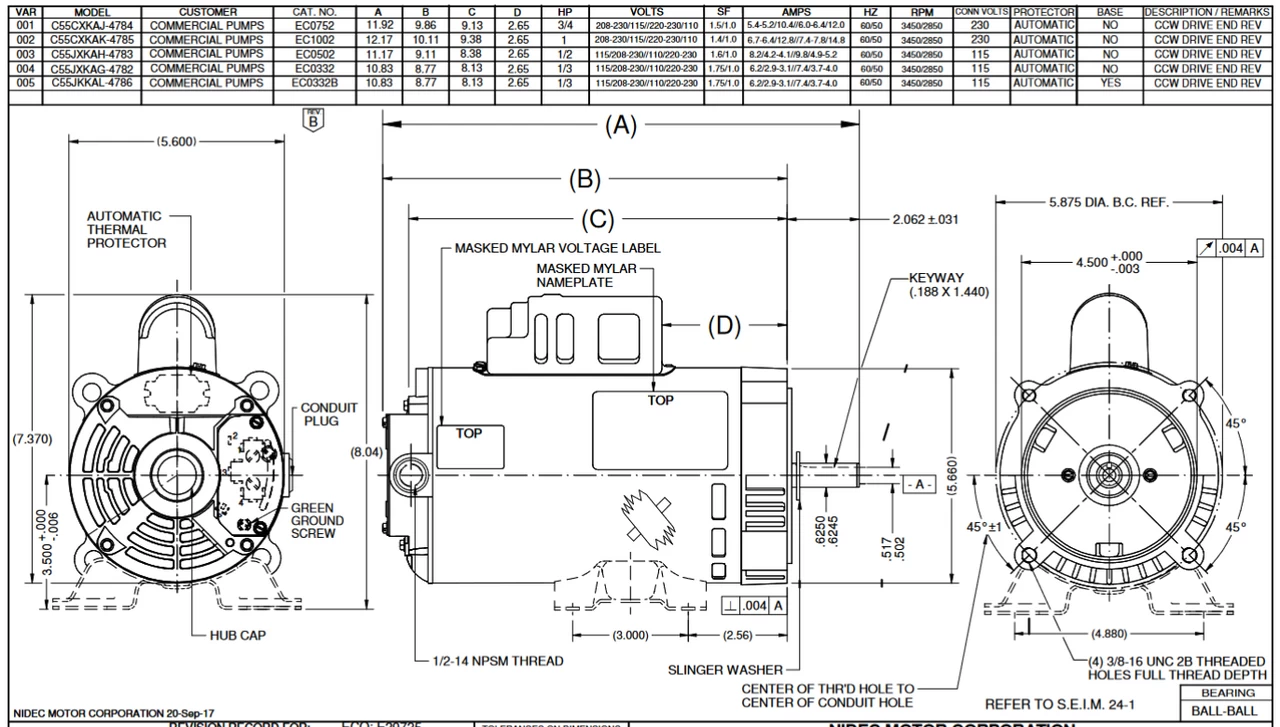

Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. C055KAG4782014J
