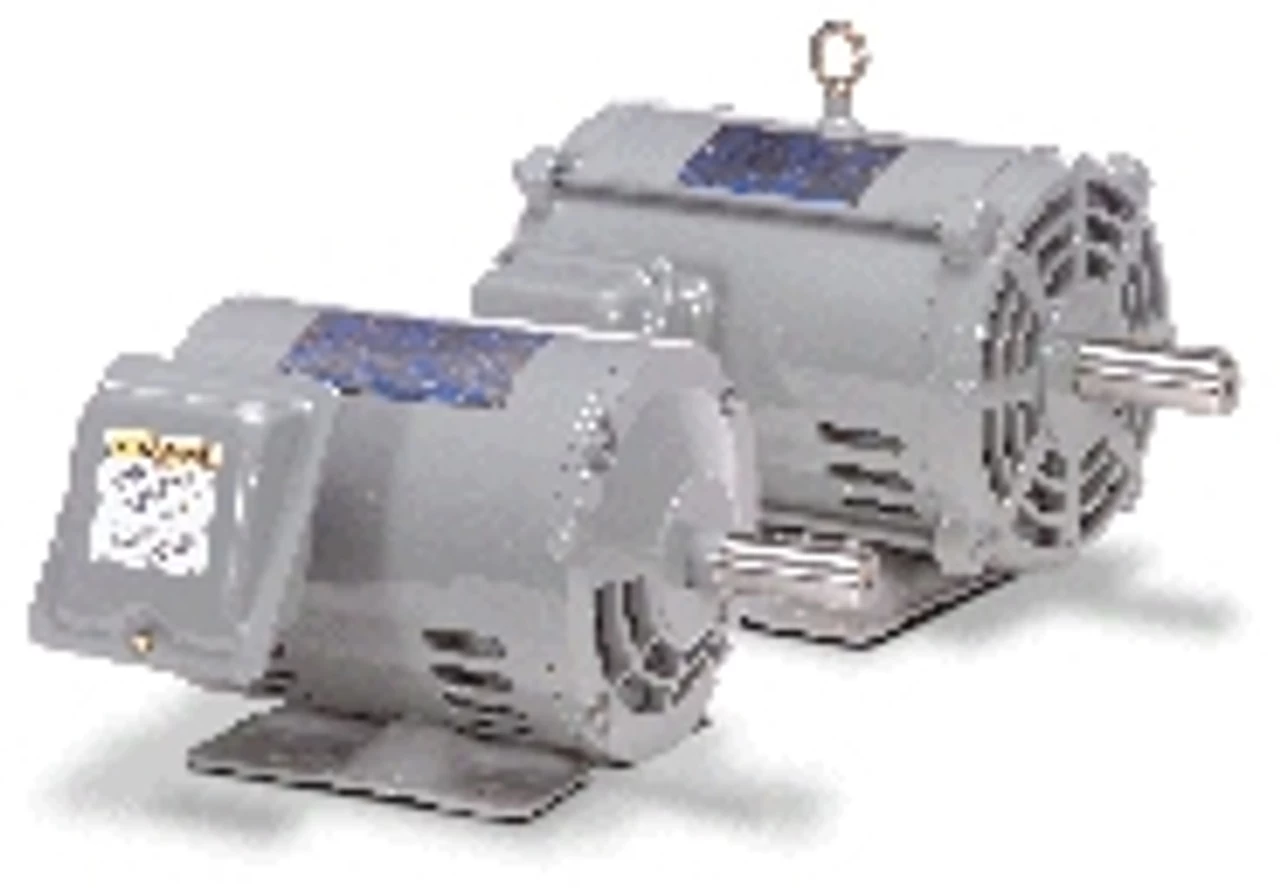

DTP1/52G TECO Westinghouse 1 1/2 Hp 3600 RPM 143/145T Frame 230/460V ODP 3-Phase SGR Motor
Original price was: $336.40.$96.99Current price is: $96.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 1 1/2 hp 3600 RPM, 3.96/1.98 amps 230/460 Volts 60hz. Three Phase

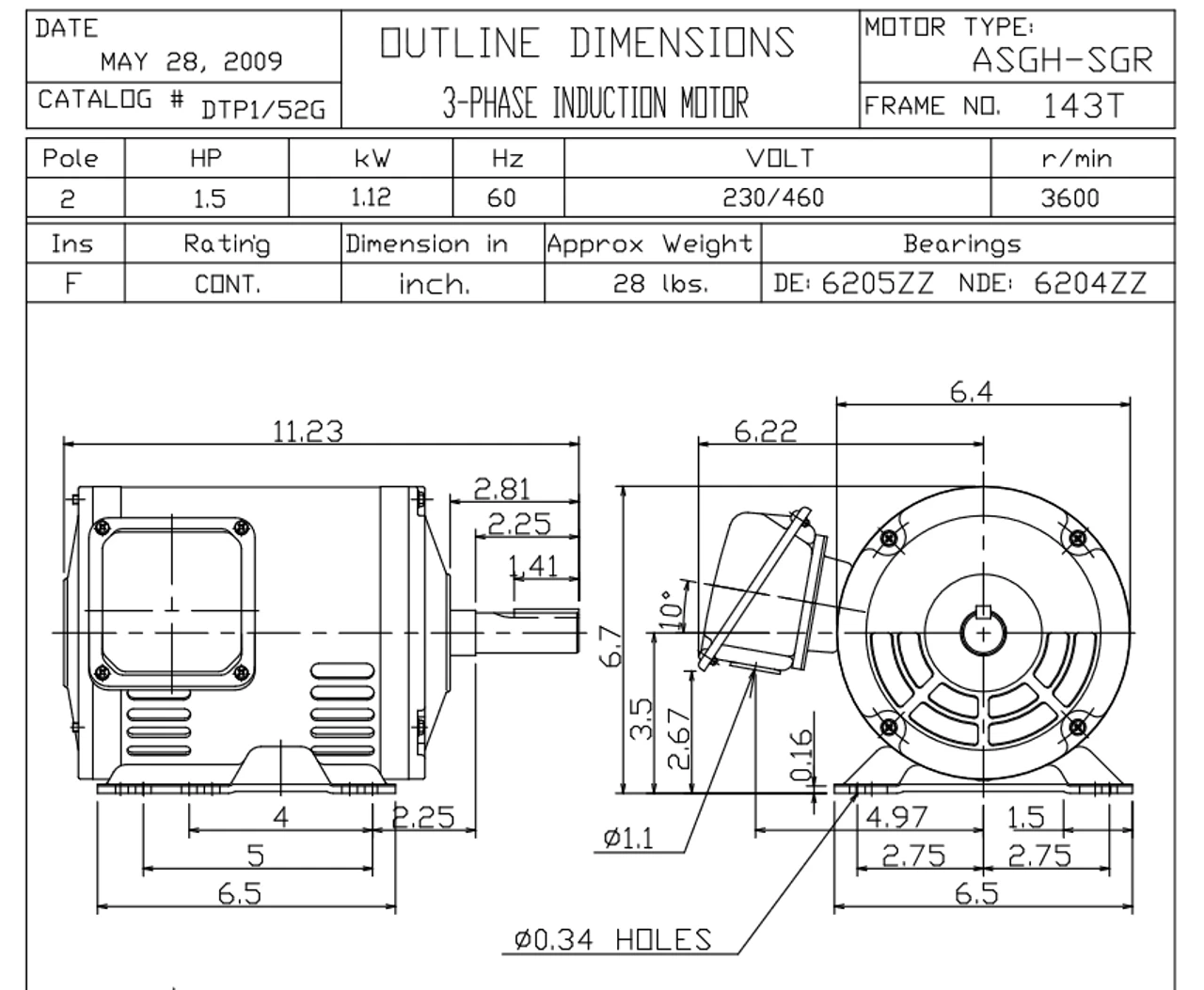

- NEMA 143/145T Frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
- Rolled Steel Frame, Enclosure: Open Drip Proof (IP22)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Motor has SGR (Shaft Grounding Rings) to protect bearings from electrical damage. Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
