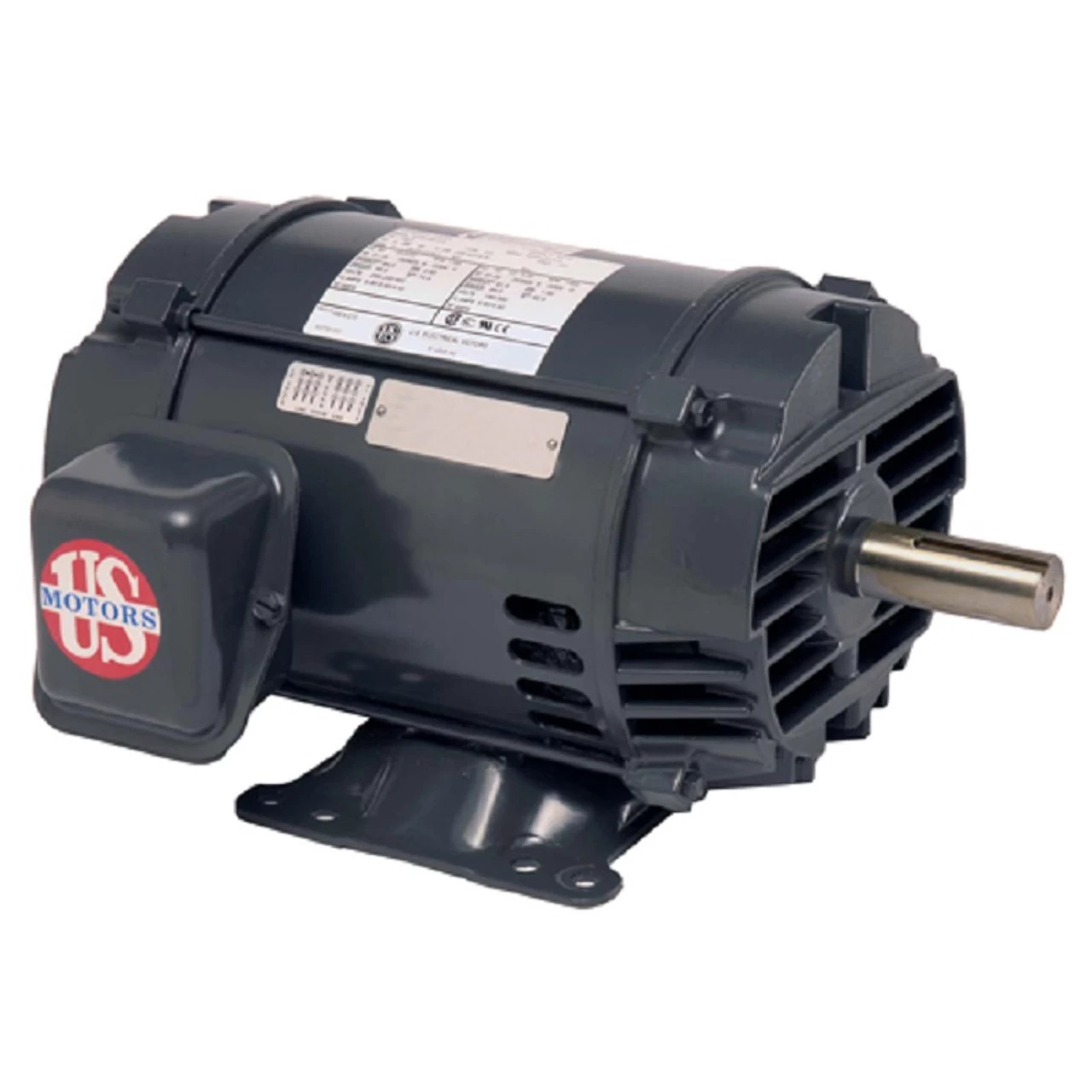

D7P3D Nidec | 7.5 Hp 1200 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec

• 7.5 hp 1200 RPM, 18.9/9.5 amps 208-230/460V Three Phase

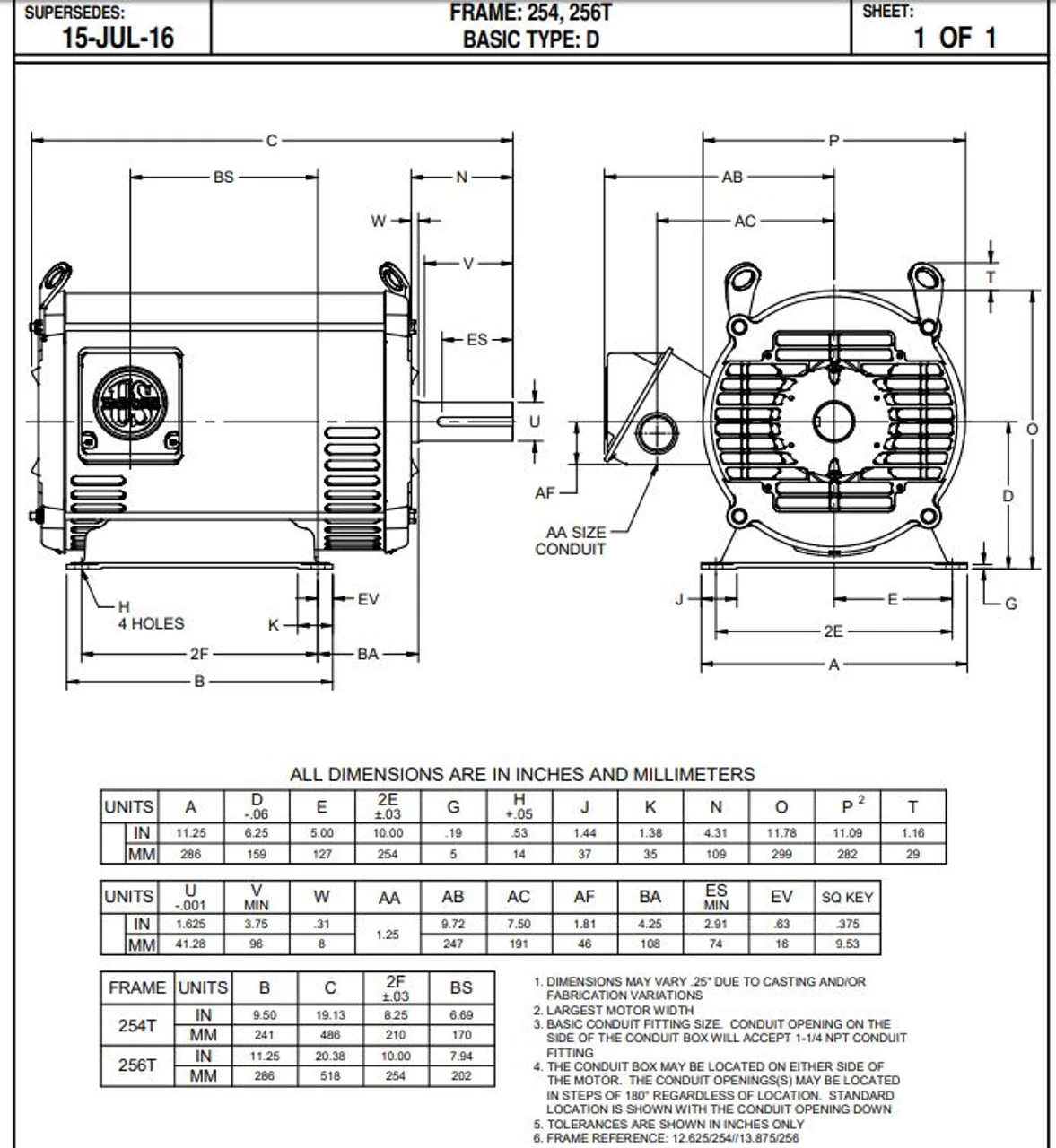

• NEMA 254T Keyed Shaft 1-5/8″ Diameter x 4″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• “C” Dimension 19.1″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FP79
