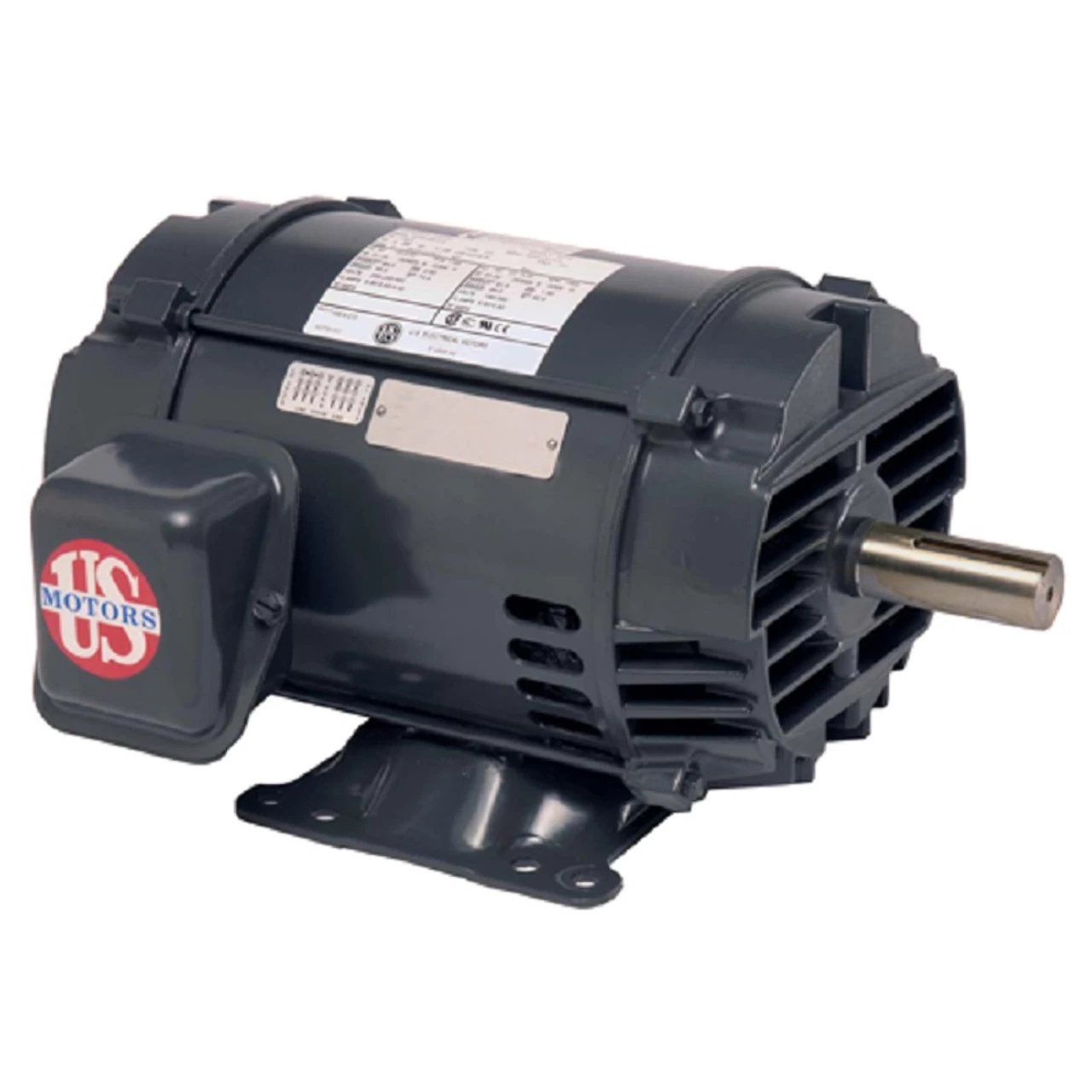

D7P2G Nidec | 7.5 Hp 1800 RPM 213T Frame 575V ODP Electric Motor Nidec

• 7.5 hp 1800 RPM, 7.3 amps 575V Three Phase
• NEMA 213T frame Keyed Shaft 1-3/8″ x 3 3/8″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• “C” Dimension 16.0″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model G61820, Dayton 6YW86
