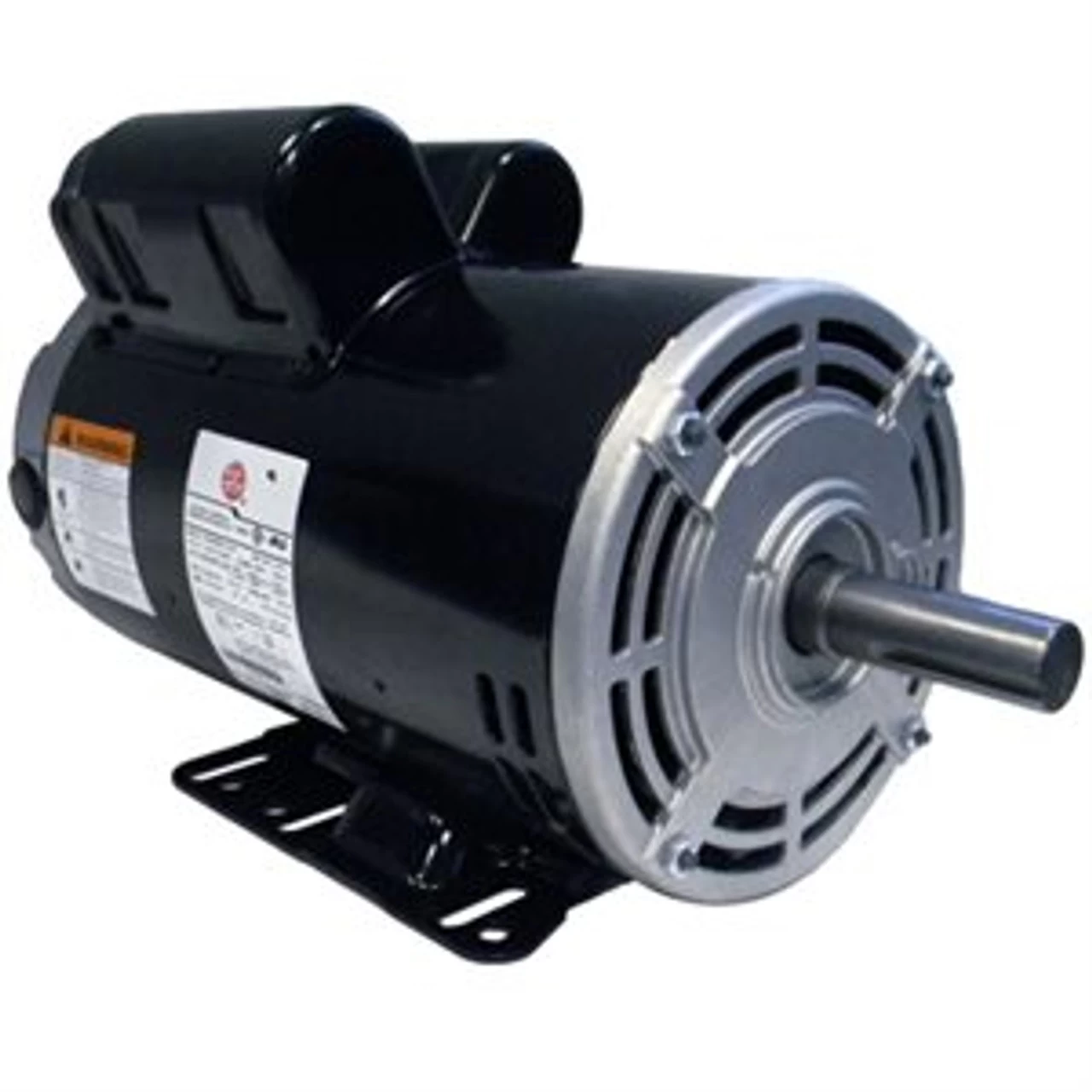

D5CM1K14 Nidec 5 HP 3600 RPM 208-230V 56 Frame (Base) ODP Air Compressor Motor
Original price was: $355.00.$95.99Current price is: $95.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 5 HP 3600 RPM (1 speed), 22.0 amps 208-230V Volts 60 Hz Capacitor Start/Run Motor
- 56 Frame, Rolled Steel, Keyed Shaft 7/8″ Diameter x 2 3/8″
- Service Factor = 1.0, Overload Protection: Manual
- Rigid Base Mount, Ball Bearings, Class F Insulation, CCW drive end
- 1 Year Manufacture Warranty
Motor for air compressor requiring a high break-down torque. Wiring diagram on motor name plate. ODP = Open Drip-Proof, T063WBZ1538013B
