D40P2D Nidec | 40 Hp 1800 RPM 324T Frame 208-230/460V ODP Electric Motor Nid

• 40 hp 1800 RPM, 91.0/46.1 amps 208-230/460V, 50/60hz. Three Phase

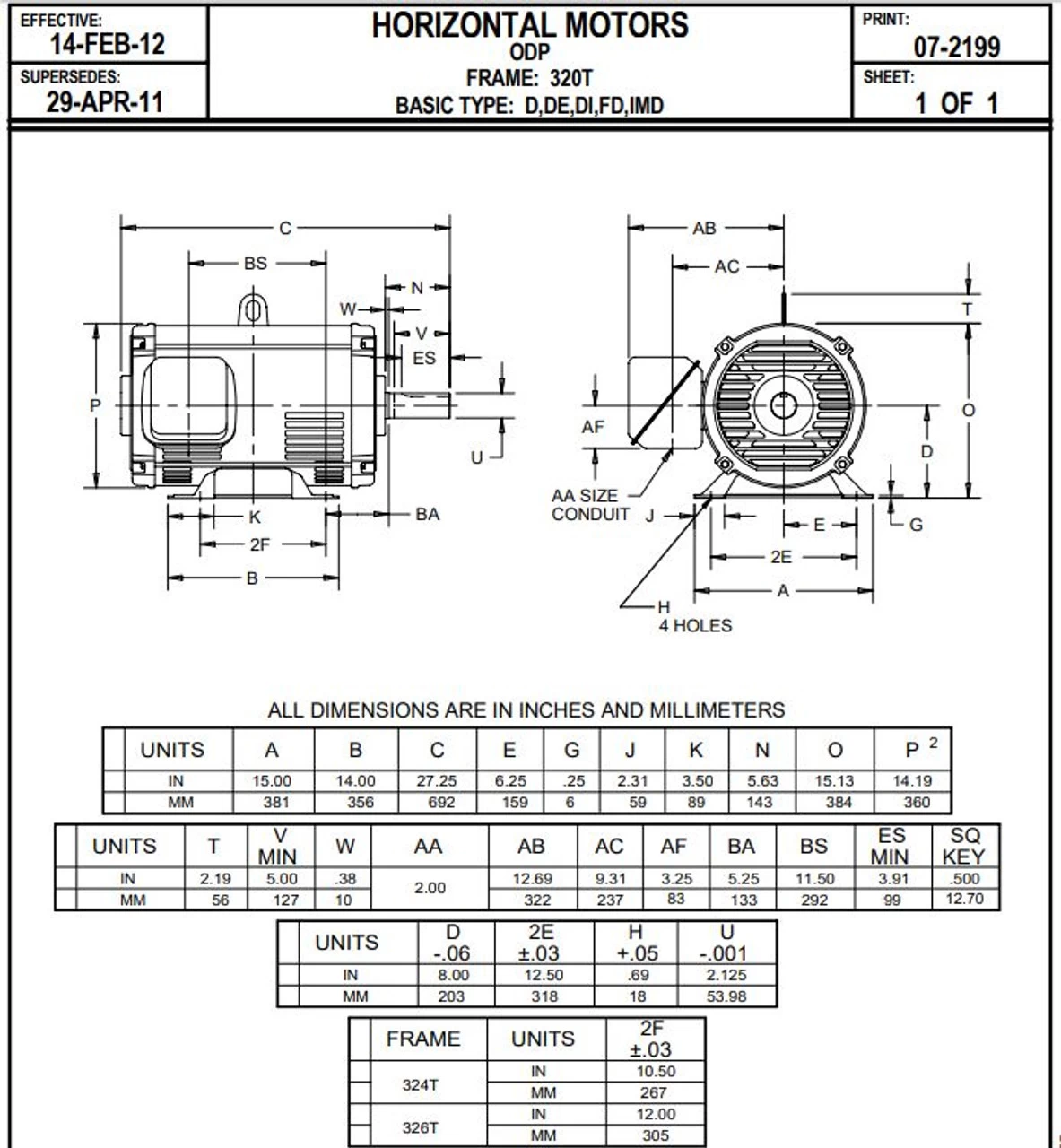

• NEMA 324T Frame Keyed Shaft 2 1/8″ Diameter x 4 1/4″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• “C” Dimension 27.3″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DC27
