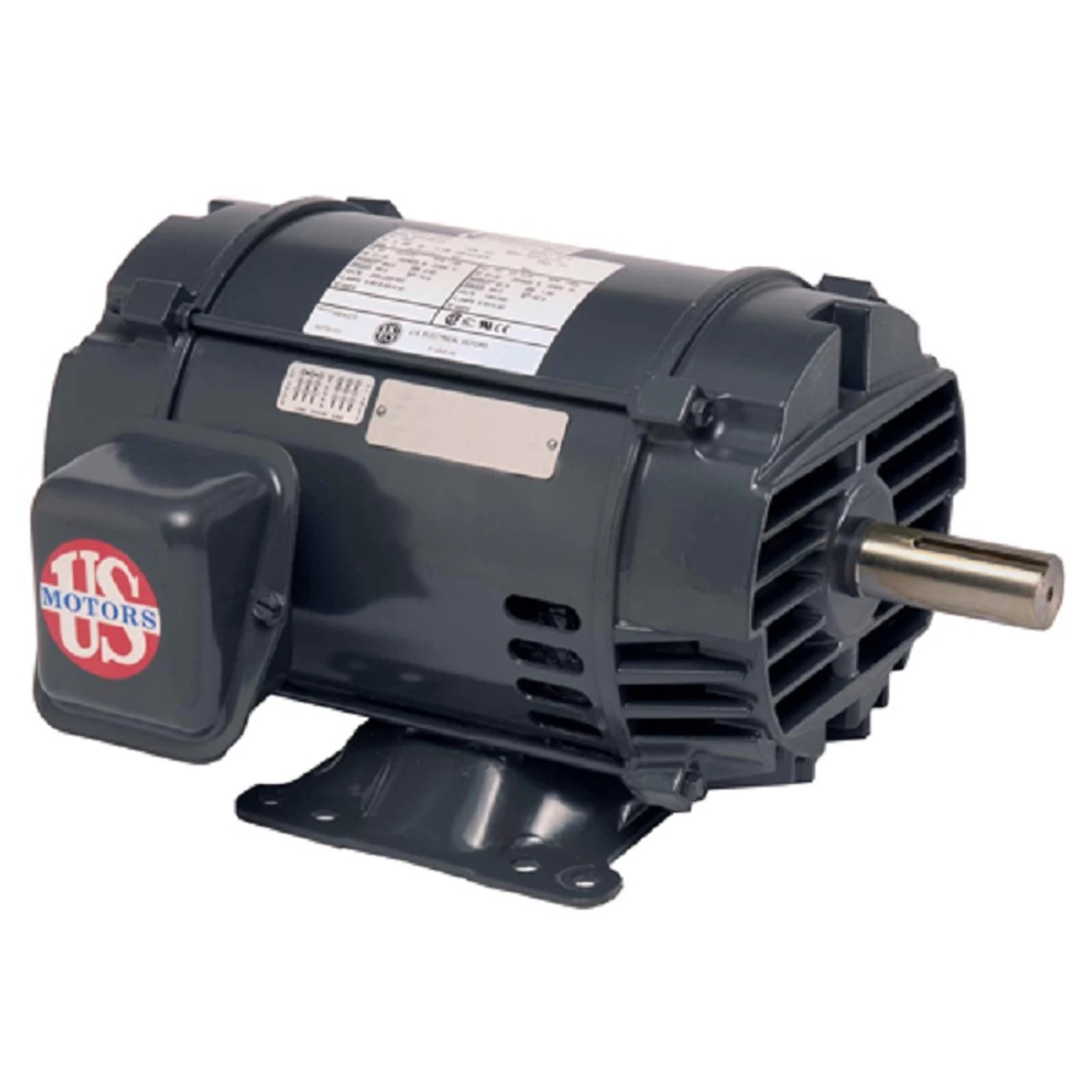

D32P3D Nidec | 1.5 Hp 1200 RPM 182T Frame 208-230/460V ODP Motor Electric Motor Nidec

• 1.5 hp 1200 RPM, 5.3/2.6 amps 208-230/460 Volts Three Phase
• NEMA 182T frame Keyed Shaft 1-1/8″ x 2 3/4″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FH85
