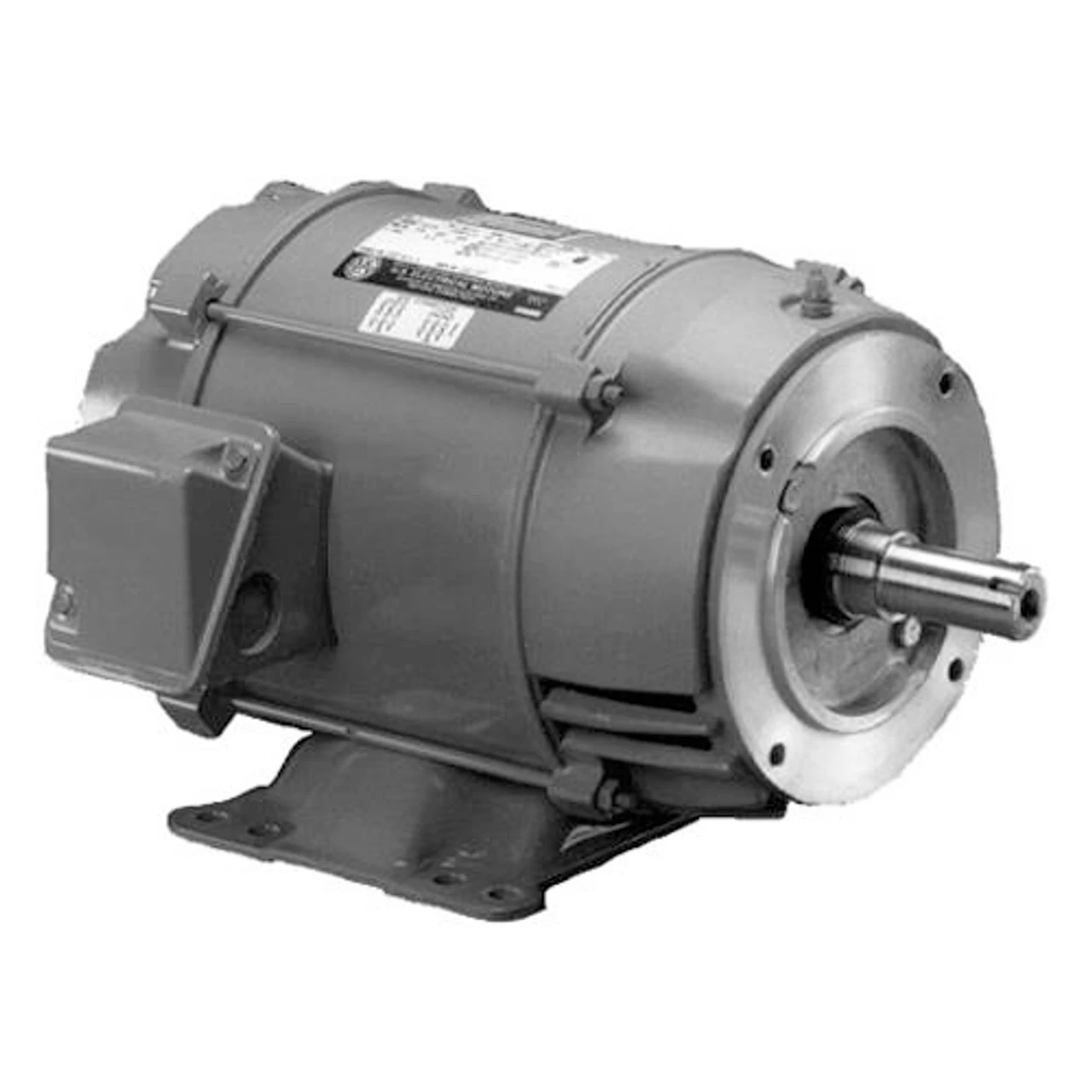

D32P1DC Nidec 1 1/2 Hp 3600 RPM 143TC Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor
Original price was: $383.54.$98.99Current price is: $98.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1 1/2 hp 3600 RPM, 4.2-3.8/1.9 amps 208-230/460 Volts 50/60 Hz Three Phase Motor

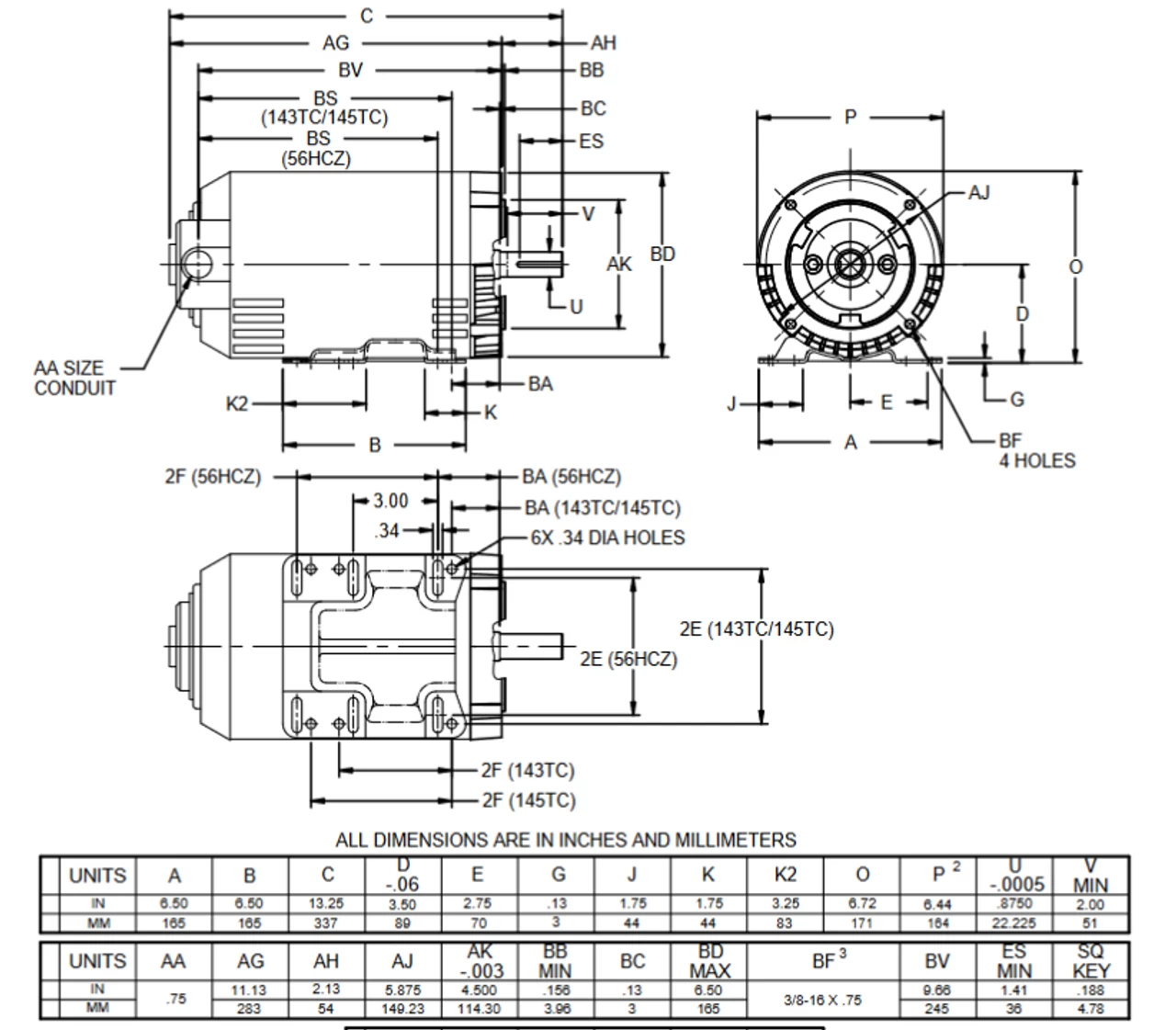

- NEMA 143TC frame Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C-Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof. FE61
