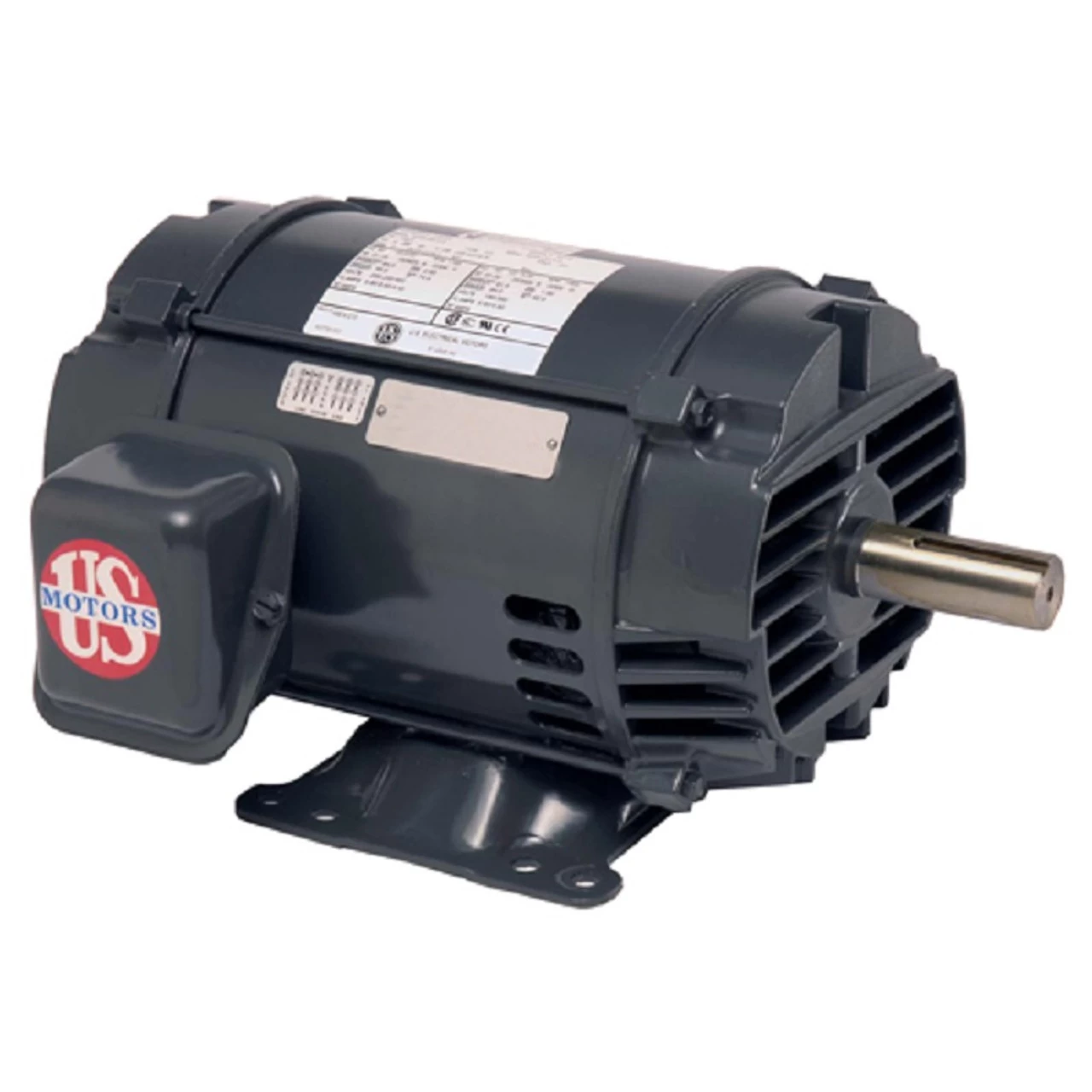

D30P3D Nidec | 30 Hp 1200 RPM 326T Frame 208-230/460V ODP Electric Motor Nidec

• 30 hp 1200 RPM, 70.0/35.0 amps 208-230/460V Three Phase
• NEMA 326T Frame Keyed Shaft 2 1/8″ Diameter x 4 1/4″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation

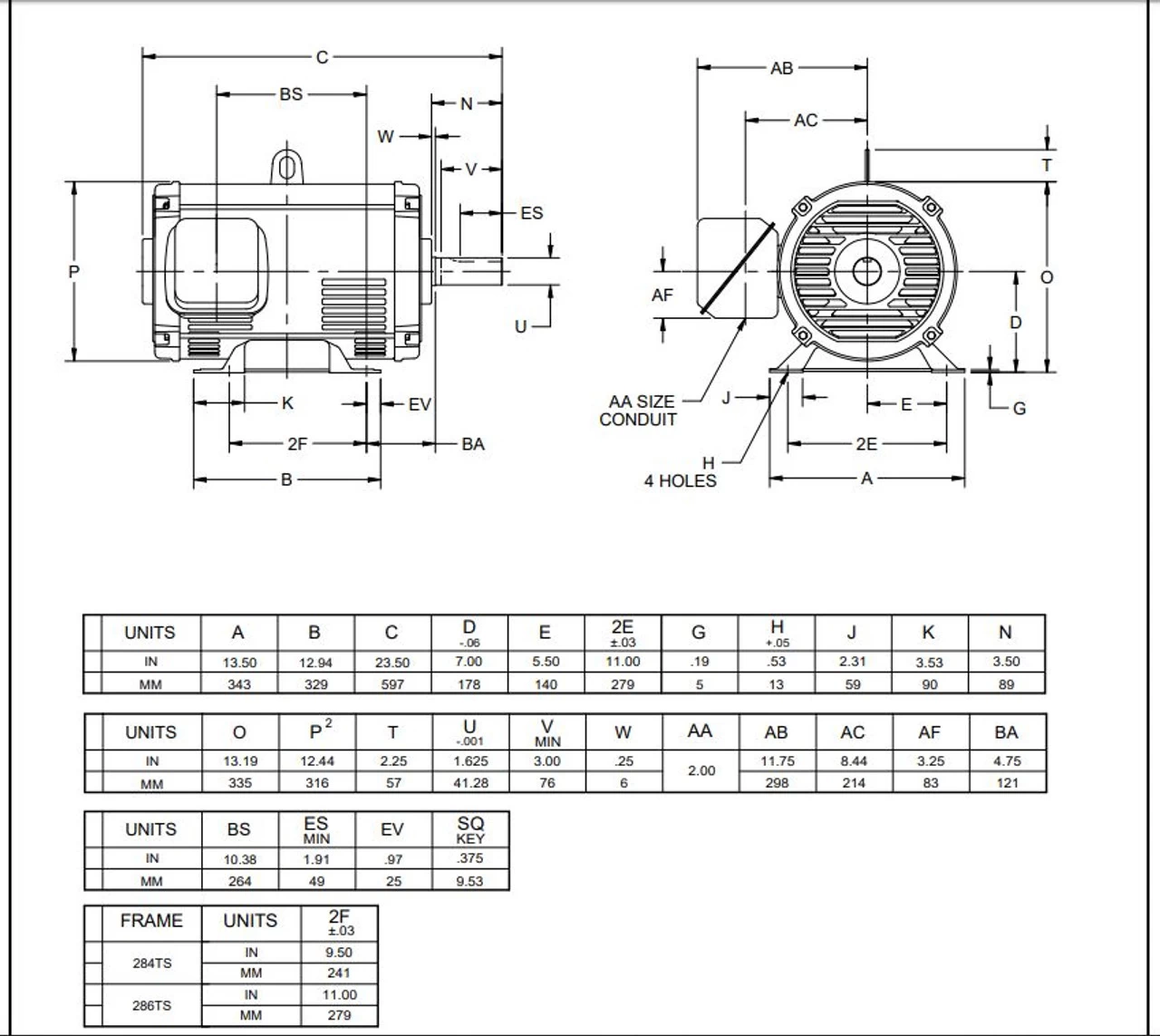

• “C” Dimension 27.3″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DC26
