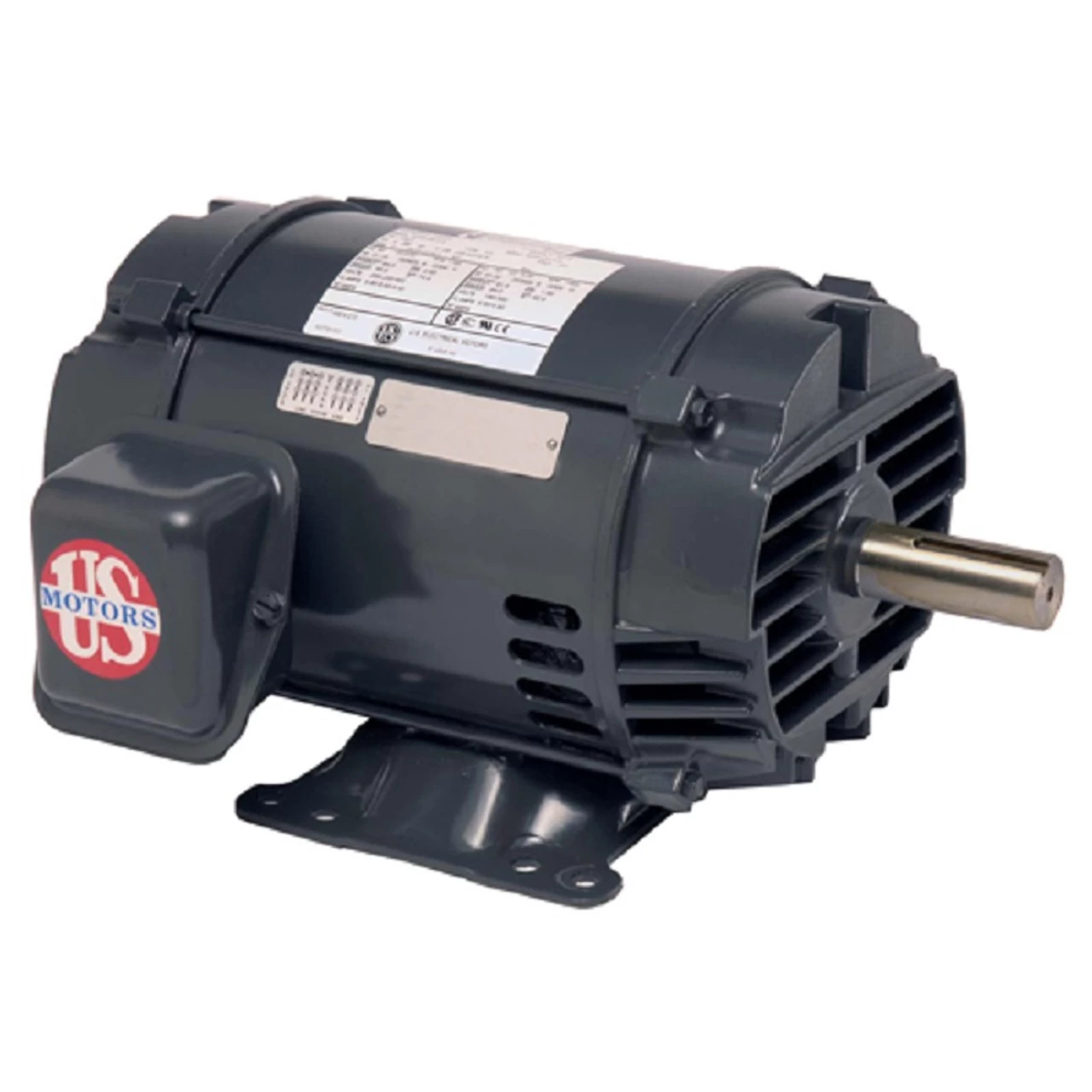

D30P2DS Nidec | 30 Hp 1800 RPM 286TS Frame 208-230/460V ODP Electric Motor Nidec
Original price was: $312.00.$96.99Current price is: $96.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 30 hp 1800 RPM, 69.0/34.0 amps 208-230/460V Three Phase
- NEMA 286TS Frame Keyed Shaft 1 5/8″ Diameter x 3 1/4″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation

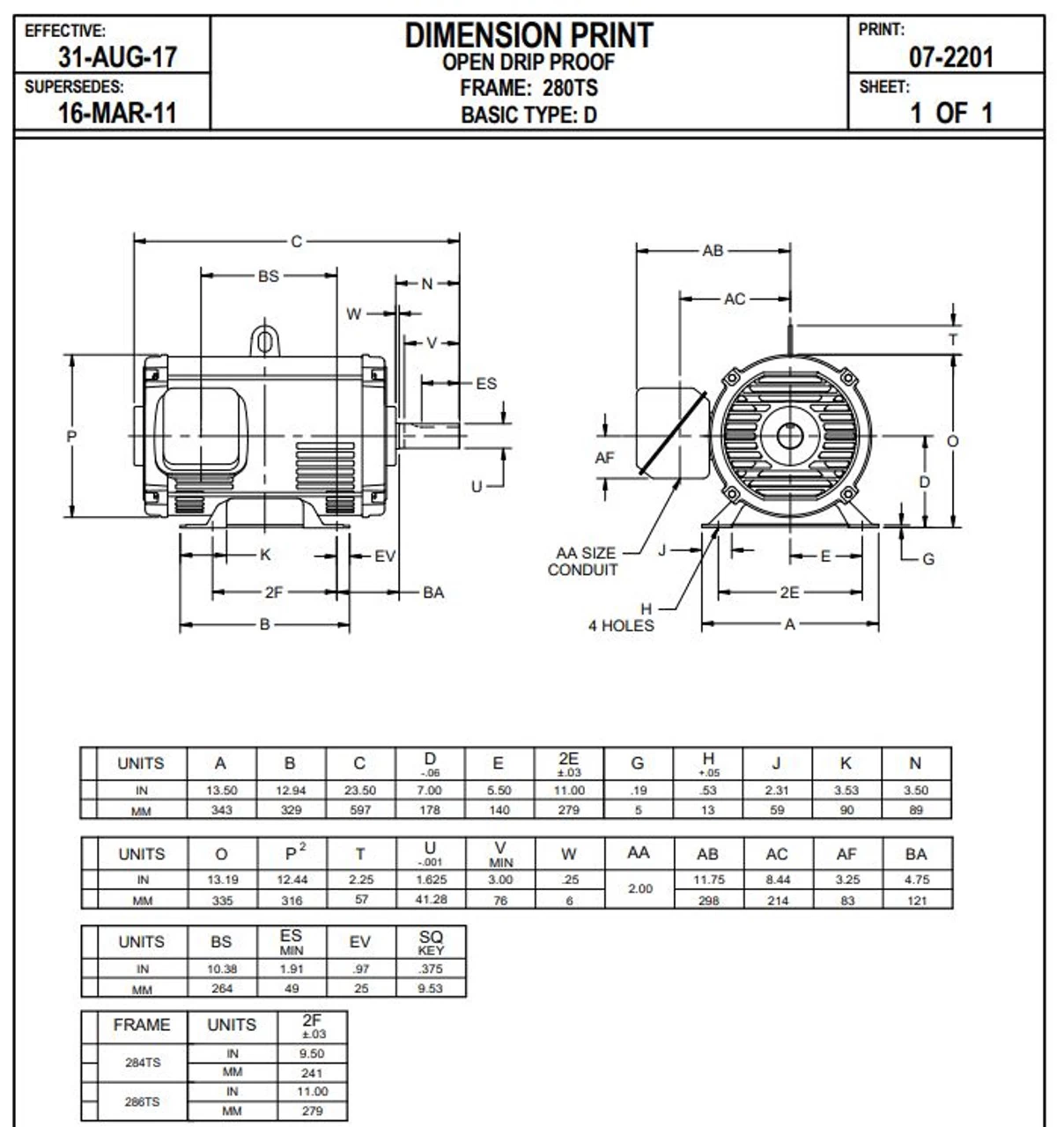

- “C” Dimension 23.5″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model CR81
