D30P1GS Nidec 30 Hp 3600 RPM 284TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
Original price was: $307.00.$95.99Current price is: $95.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 30 hp 3600 RPM, 27.4 amps 575 Volts 60 Hz Three Phase Motor

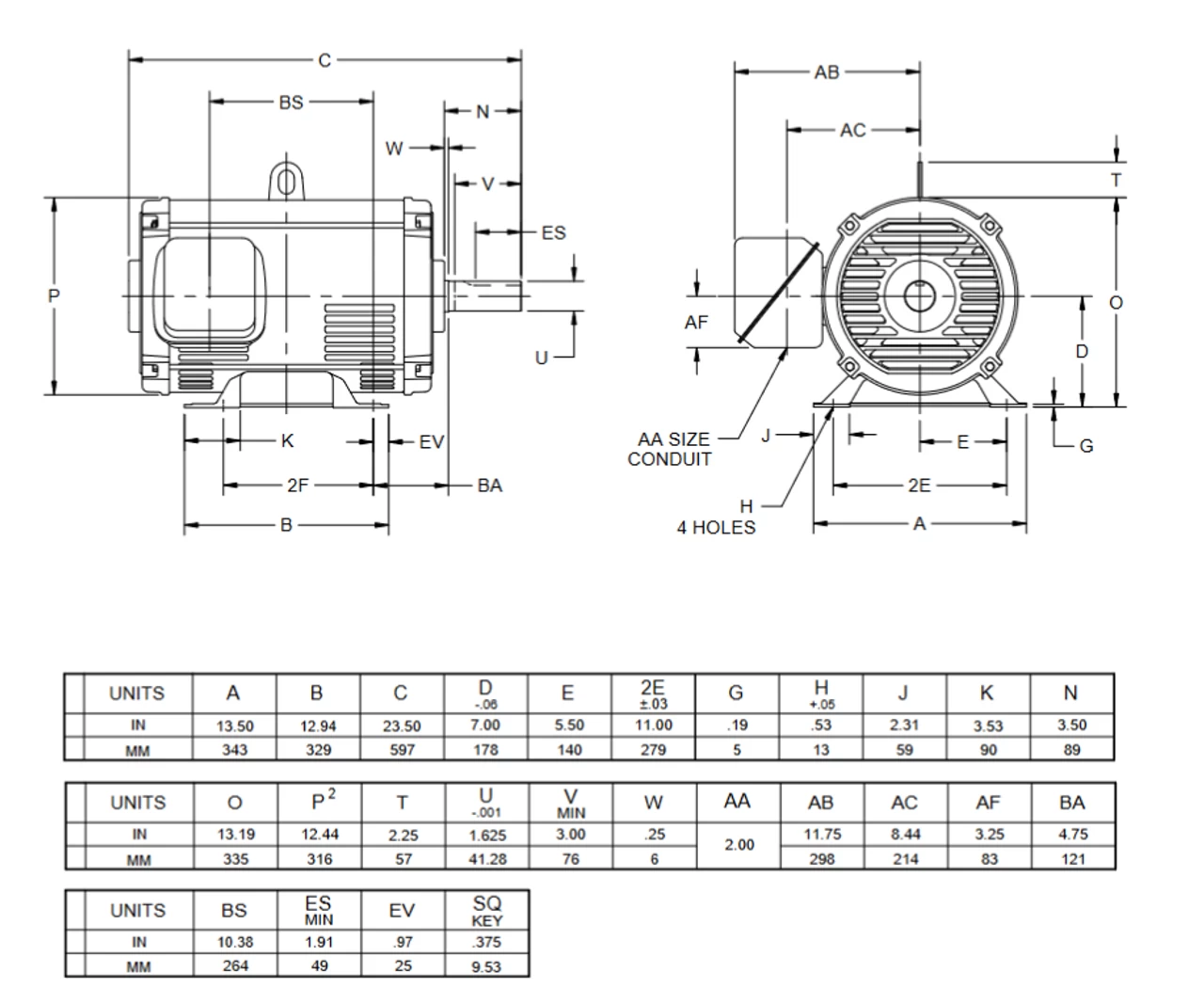

- NEMA 284TS Rolled Steel Frame, Keyed Shaft 1 5/8″ Diameter x 3 1/4″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. G73516
