D25P2H Nidec | 25 Hp 1800 RPM 284T Frame 200V ODP Electric Motor Nidec
Original price was: $369.00.$98.99Current price is: $98.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 25 hp 1800 RPM, 67.0 amps 200V, 50/60hz. Three Phase

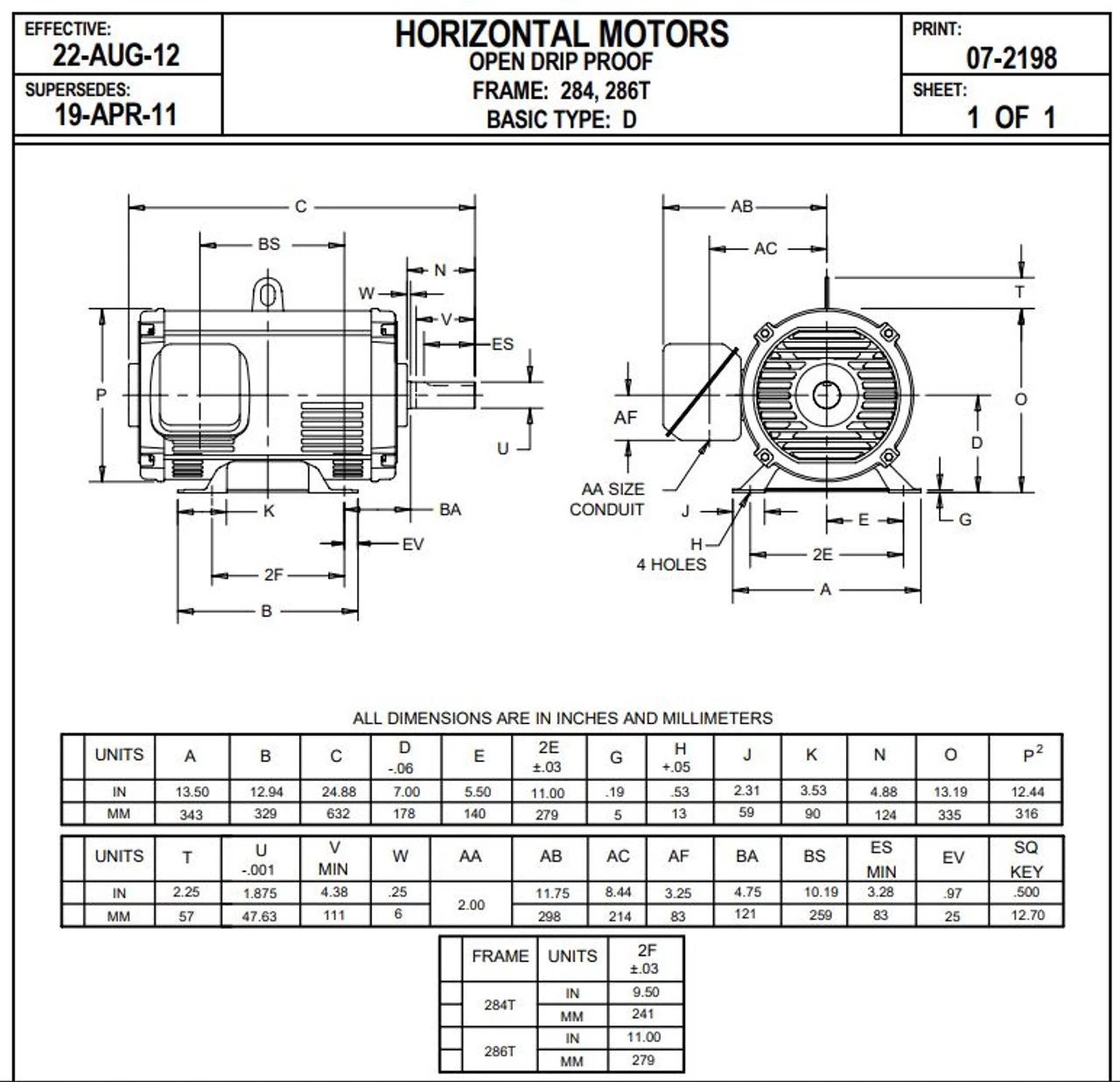

- NEMA 284T Frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- “C” Dimension 23.2″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model DB97, Dayton 263L69
