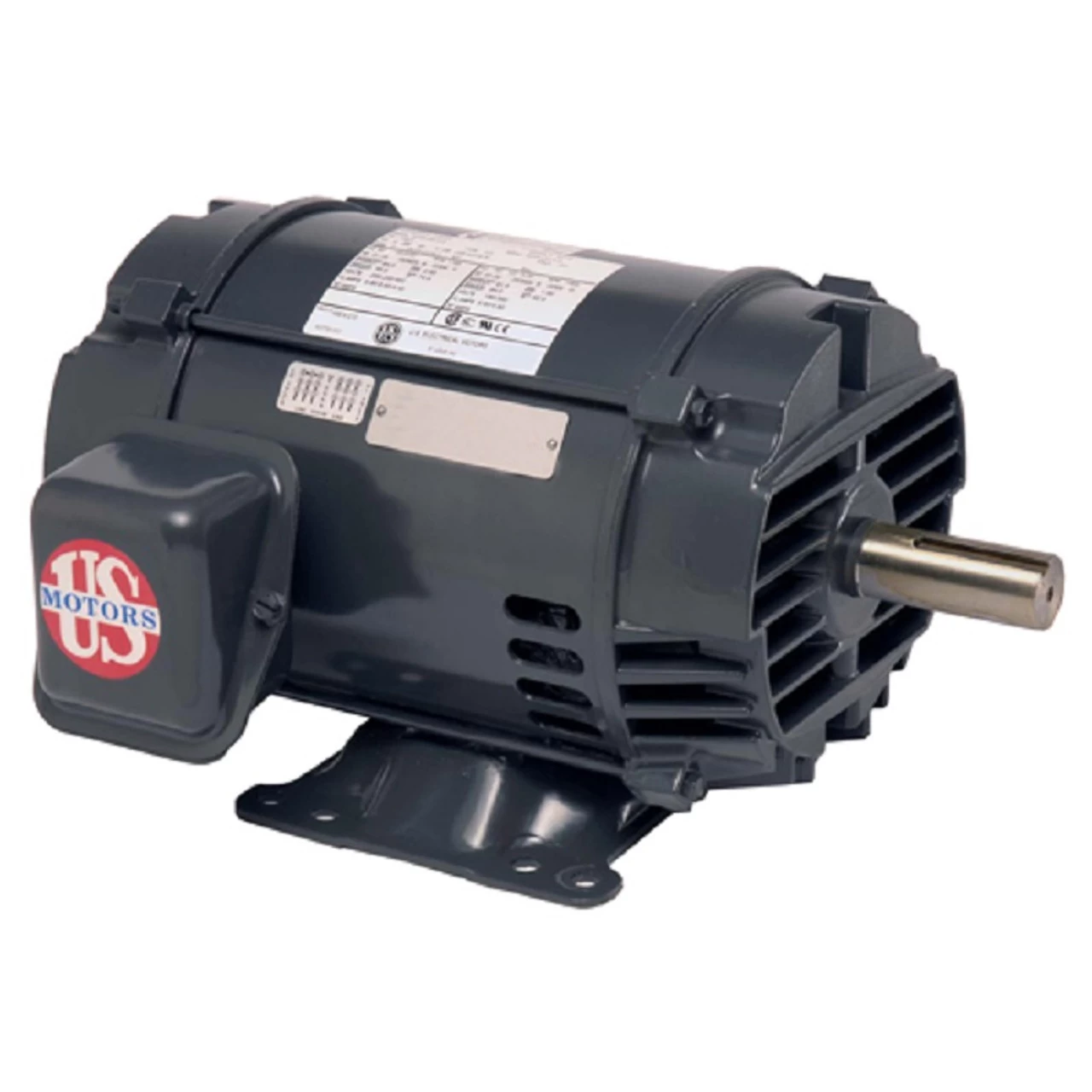

D25P2G Nidec | 25 Hp 1800 RPM 284T Frame 575V ODP Electric Motor Nidec
Original price was: $304.00.$95.99Current price is: $95.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 25 hp 1800 RPM, 23.1 amps 575V, Three Phase

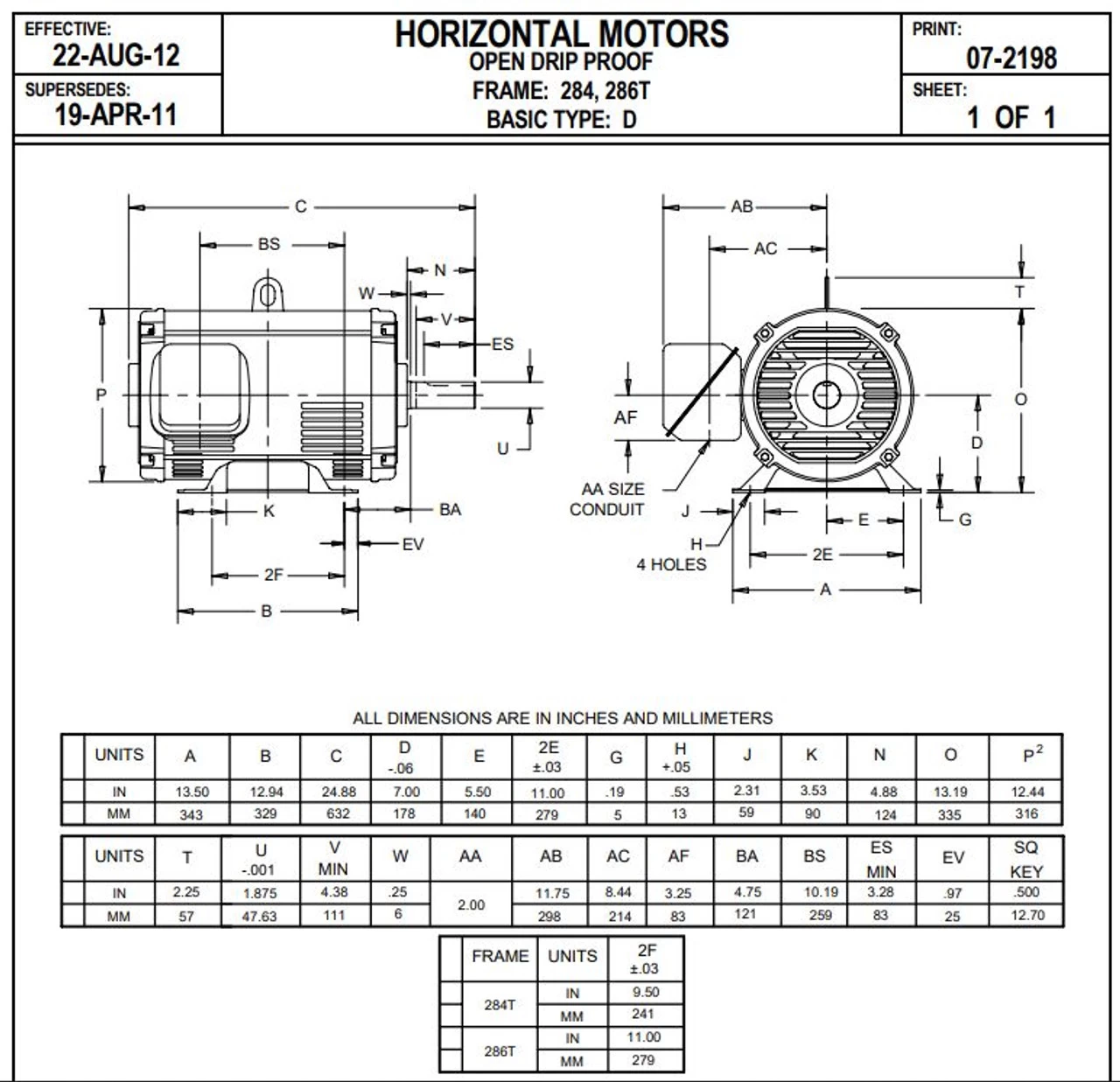

- NEMA 284T Frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- “C” Dimension 24.9″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model G73513
