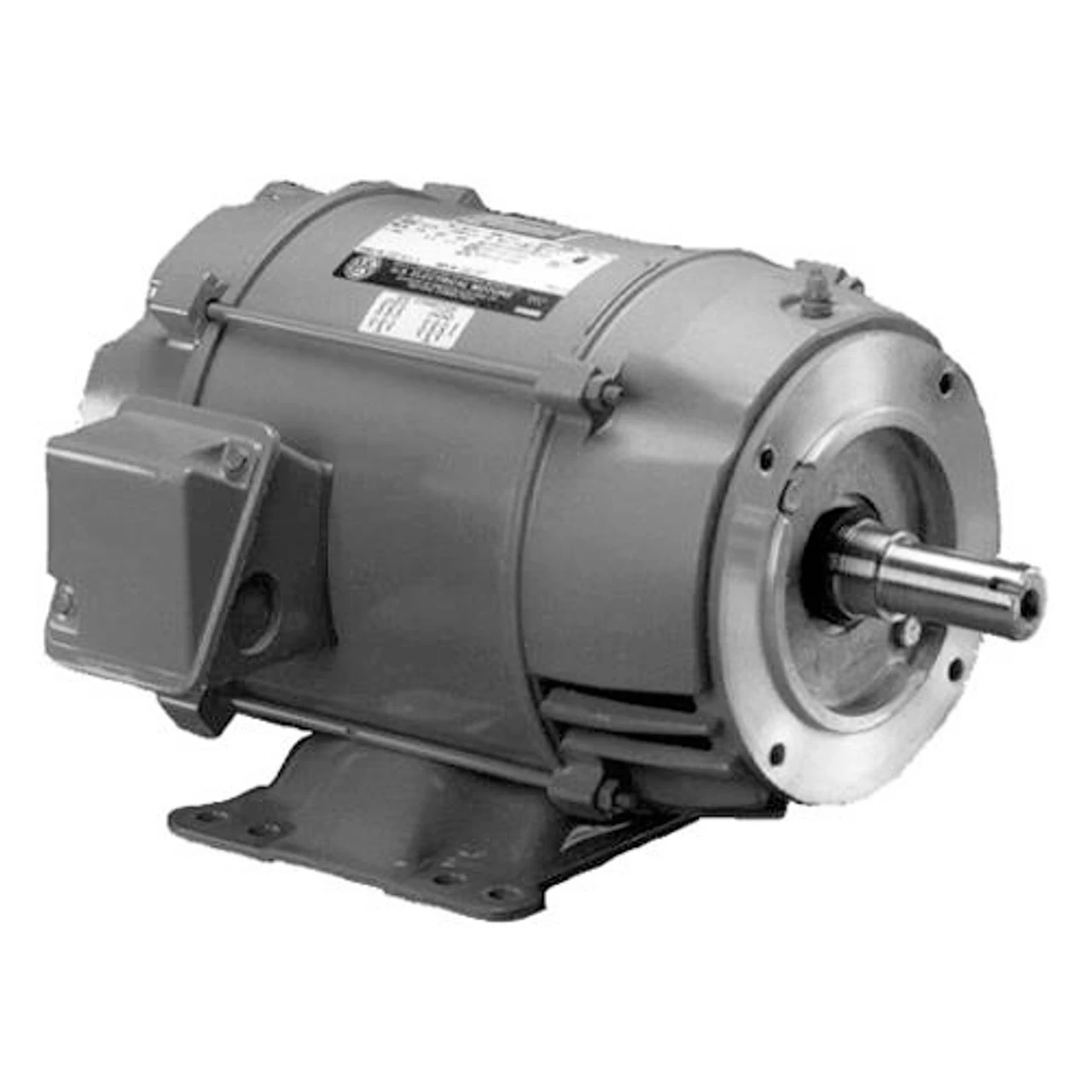

- 25 hp 3600 RPM, 58/29 amps 230/460 Volts 50/60 Hz Three Phase Motor

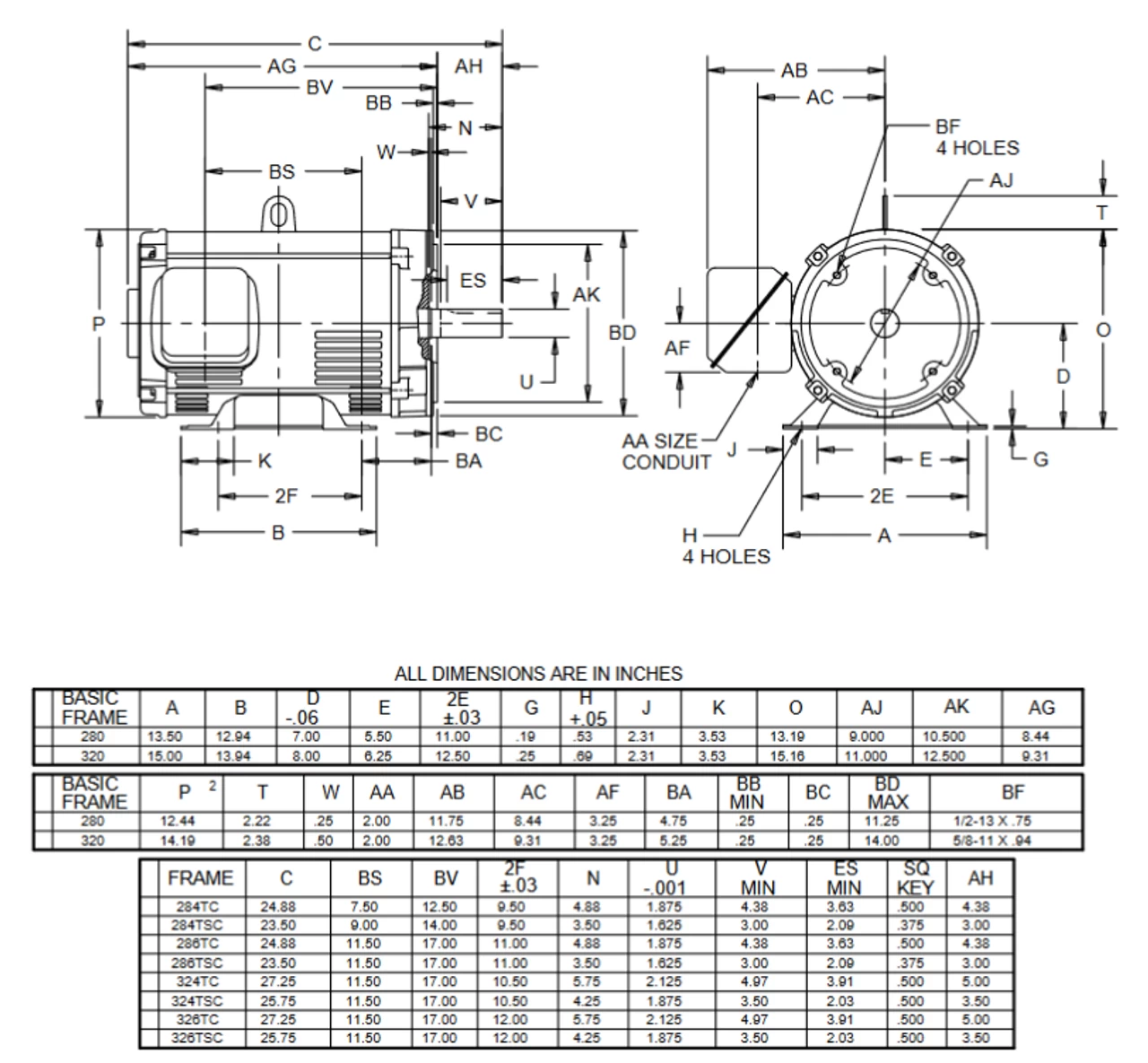

- NEMA 284TC frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C-Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof. DB94
