D20P1D Nidec | 20 Hp 3600 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec
Original price was: $301.00.$99.99Current price is: $99.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 20 hp 3600 RPM, 36.0/18.0 amps 208-230/460V, 50/60hz. Three Phase

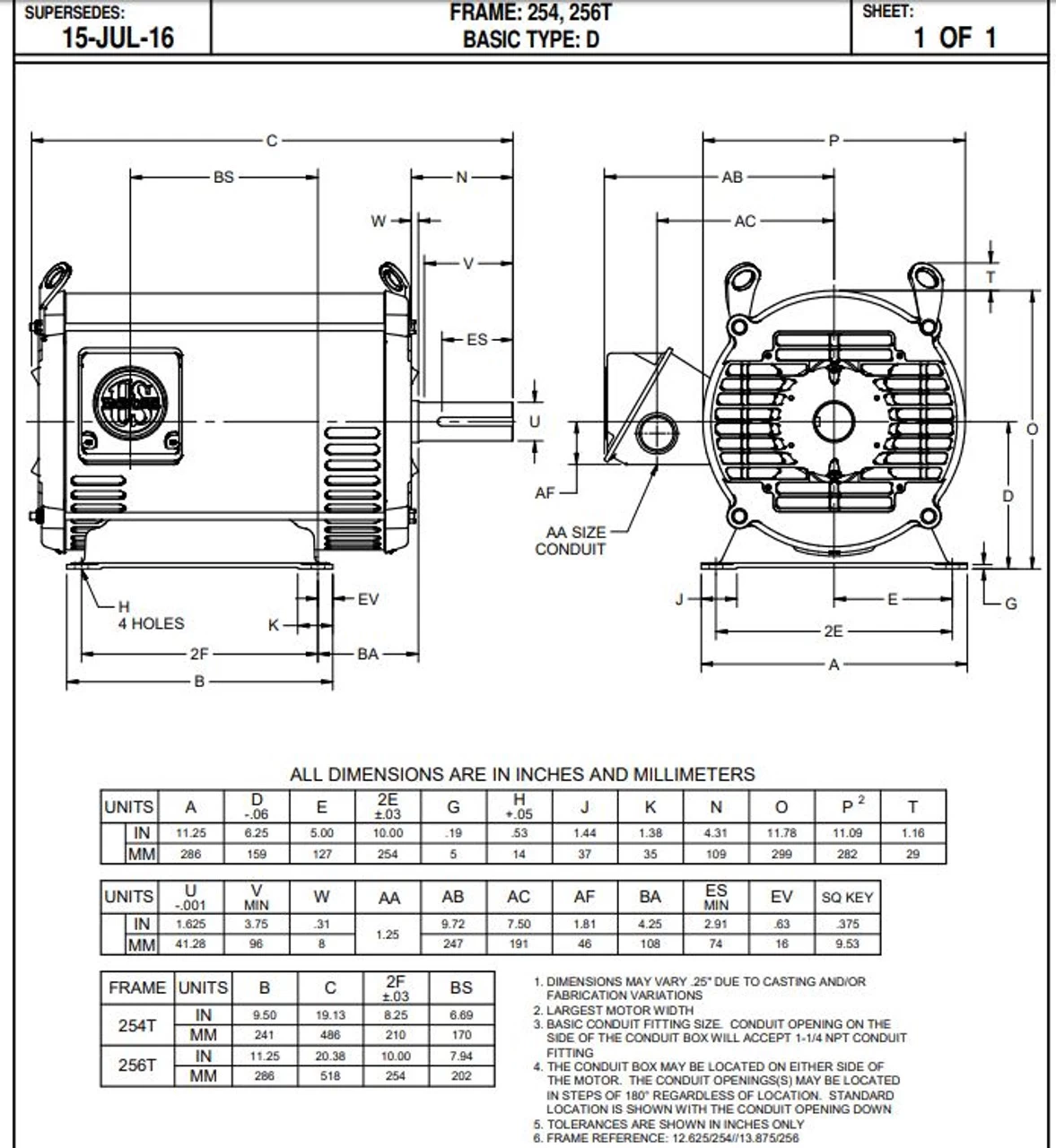

- NEMA 254T Frame Keyed Shaft 1-5/8″ Diameter x 4″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- “C” Dimension 22.6″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model FP88
