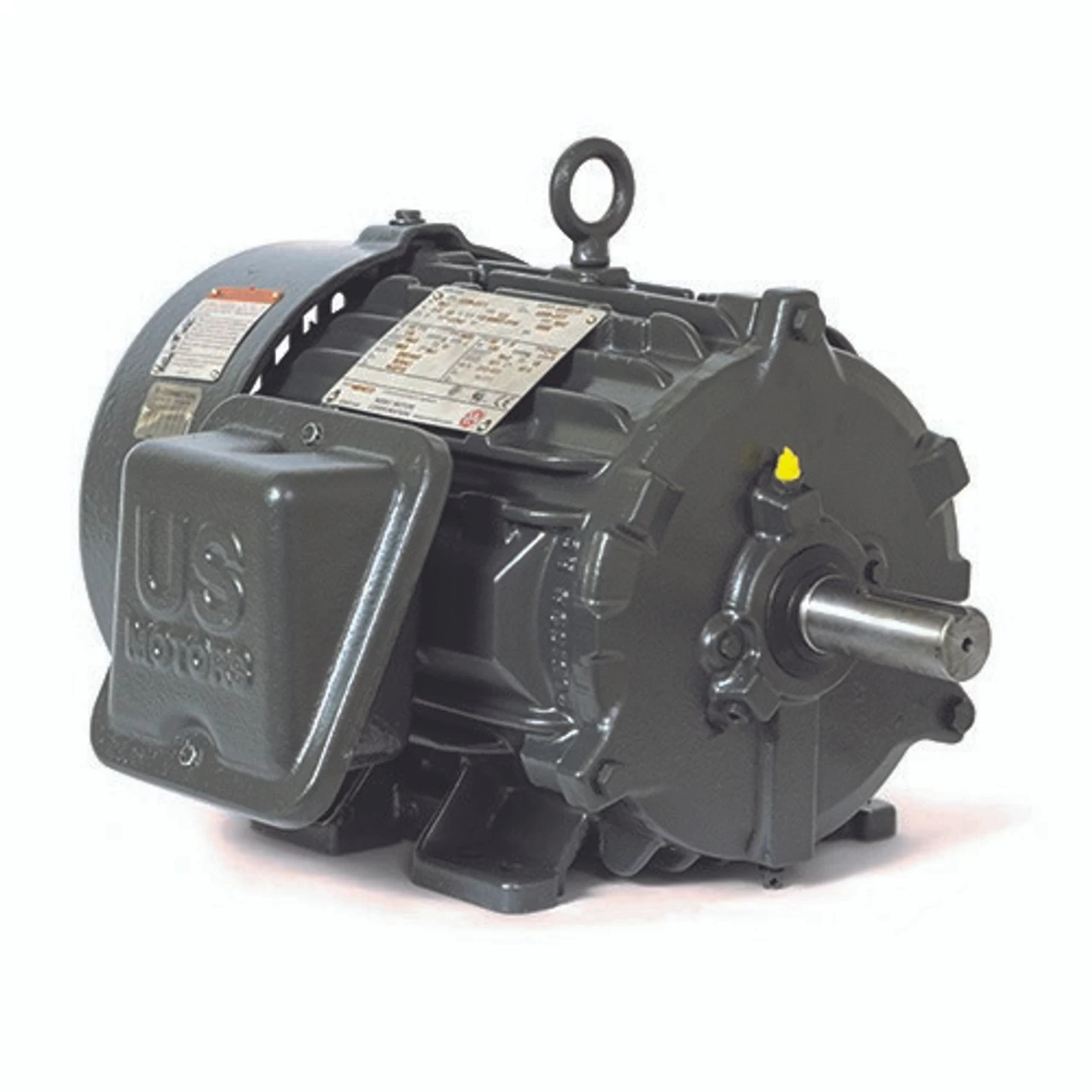

CD25P1FS Nidec 25 Hp 3600 RPM 284TS Frame (Rigid Base) 460V TEFC 3-Phase World Electric Motor
Original price was: $339.00.$96.99Current price is: $96.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 25 hp 3600 RPM, 28.8 amps 460 Volts 50/60 Hz Three Phase Motor

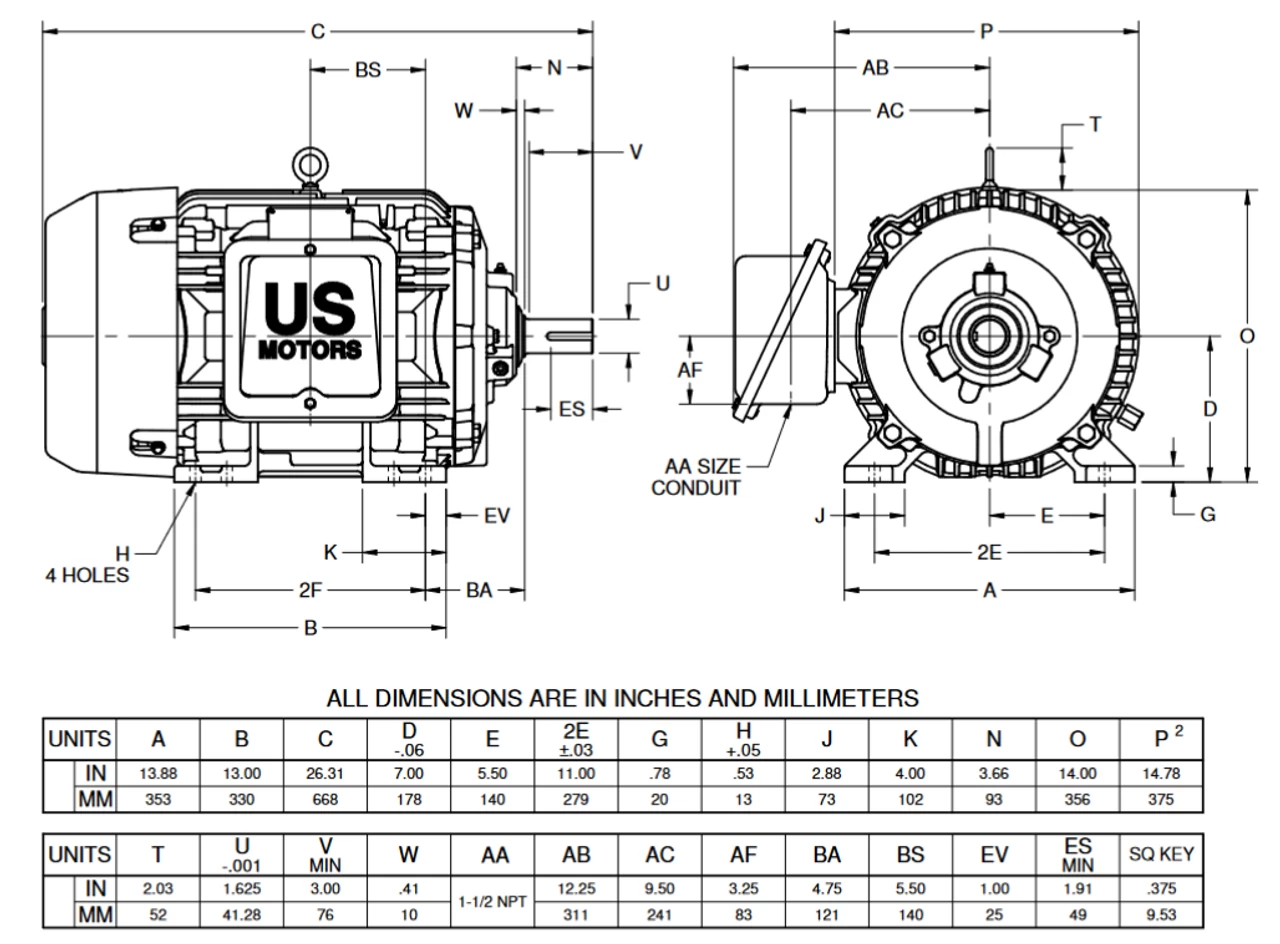

- NEMA 284TS Cast Iron frame Keyed Shaft 1 5/8″ Diameter x 3 1/4″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Regreasable Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Hostile duty three phase motor designed for chemically corrosive environments with either 50 or 60 Hz power. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GA29
