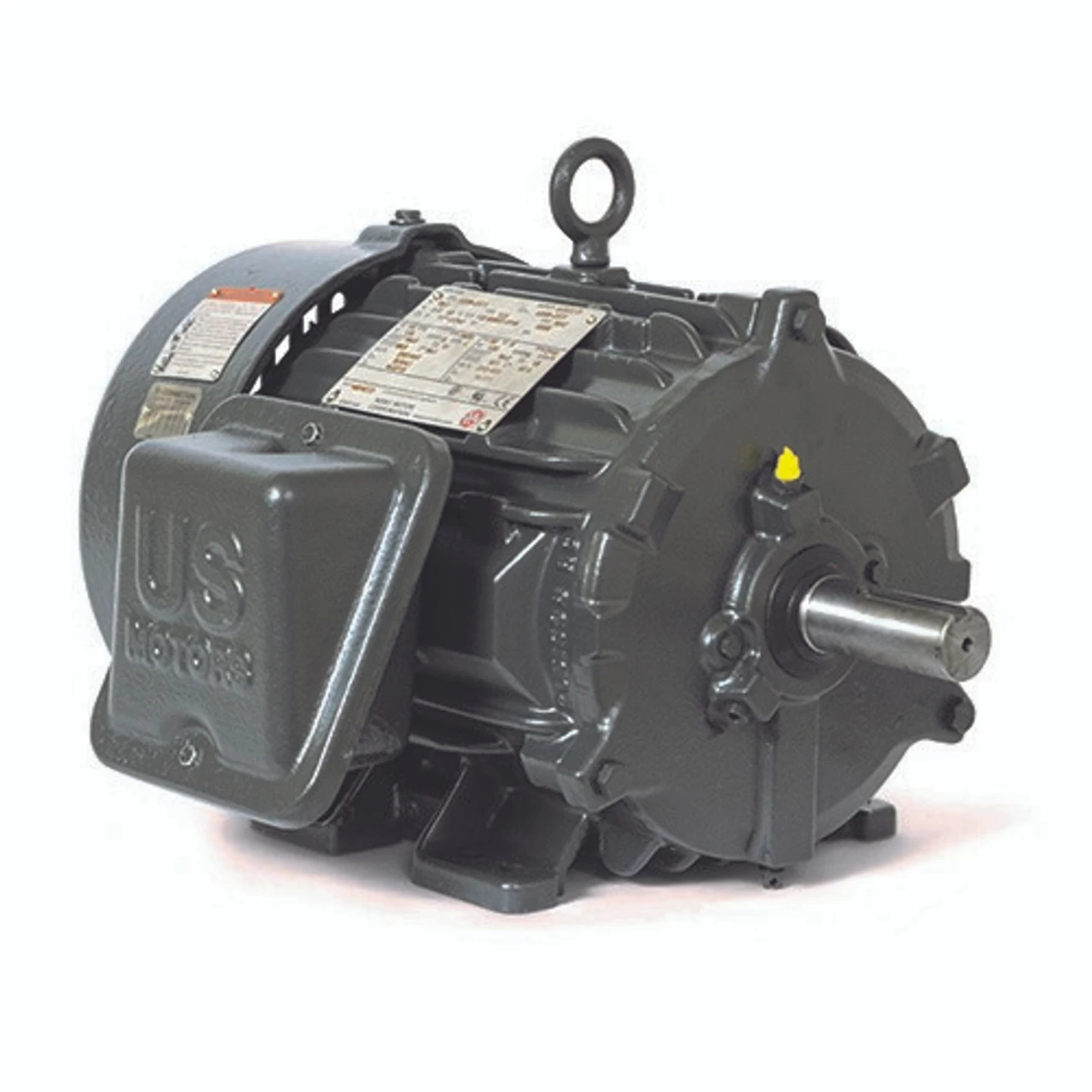

CD20P3E Nidec 20 Hp 1200 RPM 286T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor
Original price was: $324.00.$98.99Current price is: $98.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 20 hp 1200 RPM, 49.0/24.4 amps 230/460 Volts 50/60 Hz Three Phase Motor
- NEMA 286T Cast Iron frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, greaseable Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Hostile duty three phase motor designed for chemically corrosive environments with either 50 or 60 Hz power. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GA36
