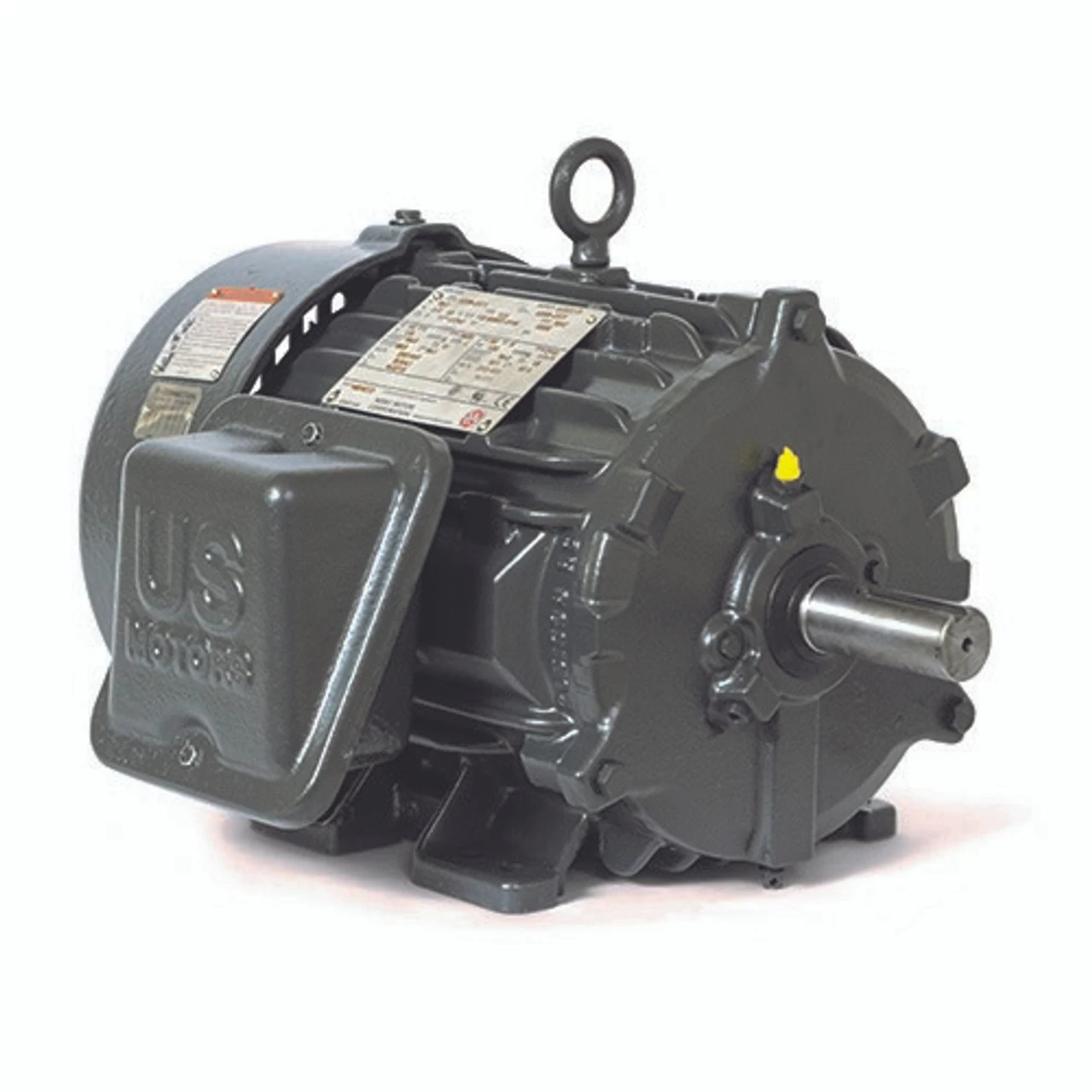

CD10P3E Nidec 10 Hp 1200 RPM 256T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor

• 10 hp 1200 RPM, 24.9/12.4 amps 208-230/460 Volts 50/60 Hz Three Phase Motor

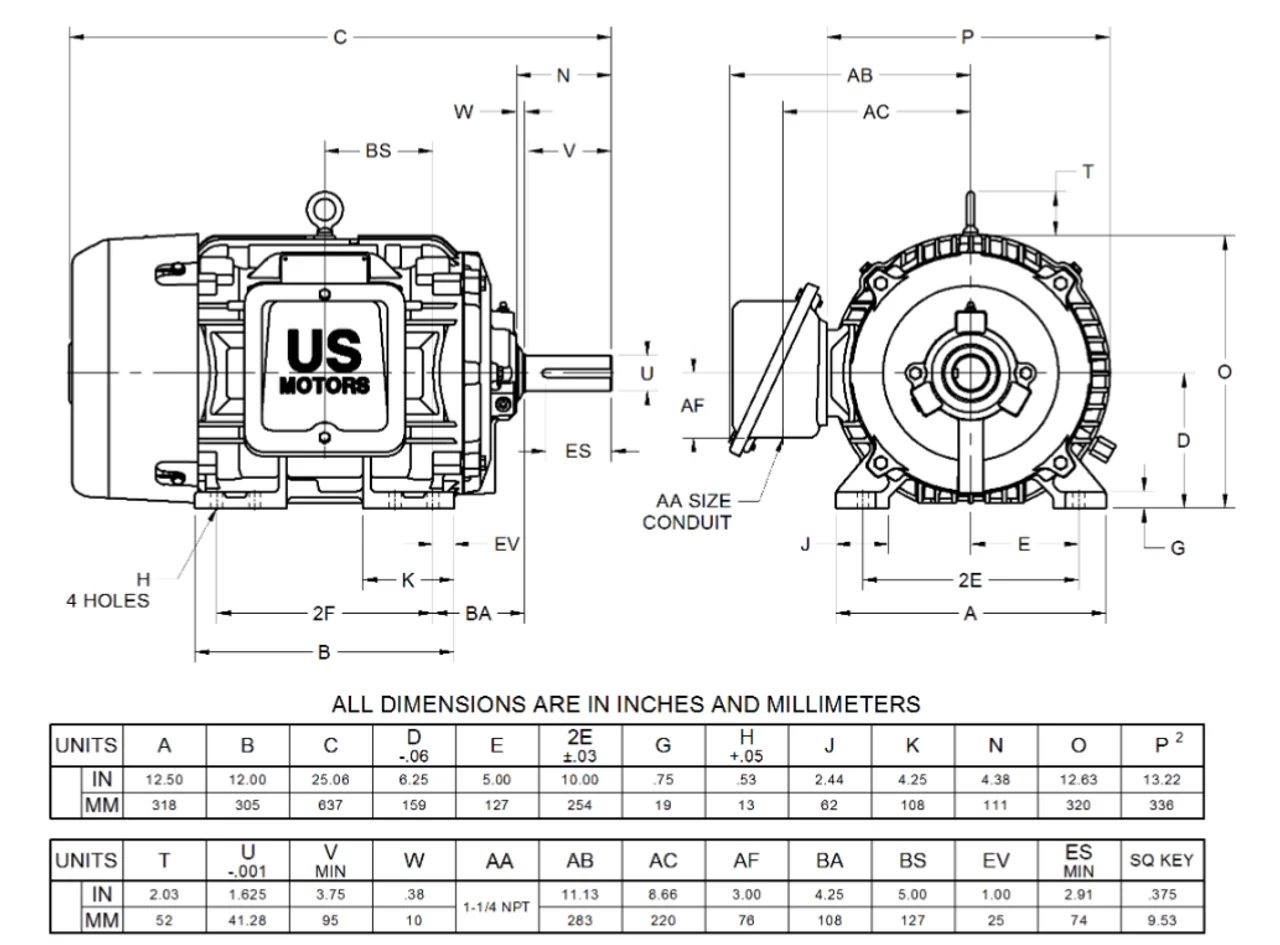

• NEMA 256T Cast Iron frame Keyed Shaft 1 5/8″ Diameter x 4″
• Service Factor: 1.15, Overload protection = None
• Rigid Base Mount, greaseable Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

Hostile duty three phase motor designed for chemically corrosive environments with either 50 or 60 Hz power. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GB31
