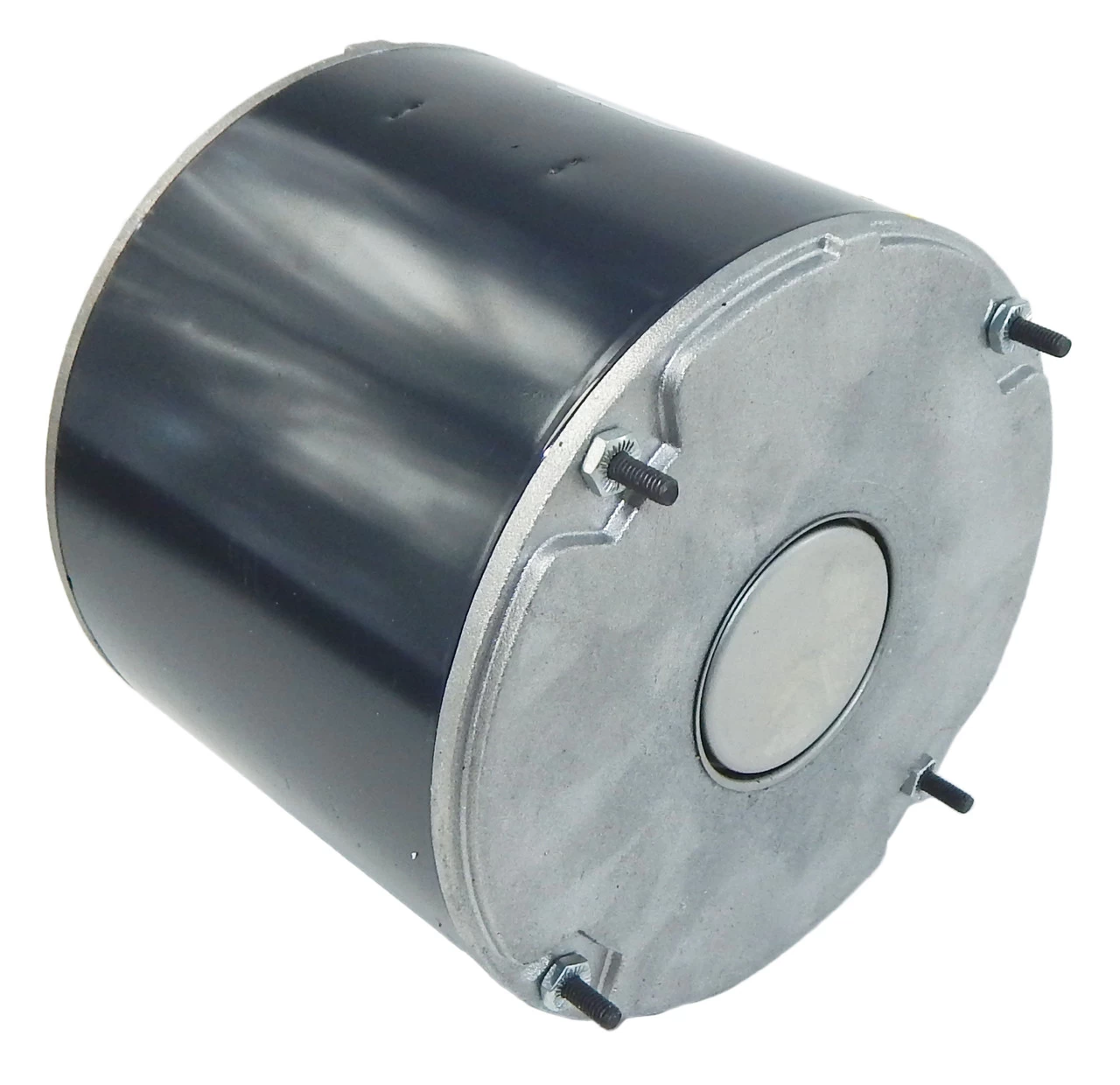

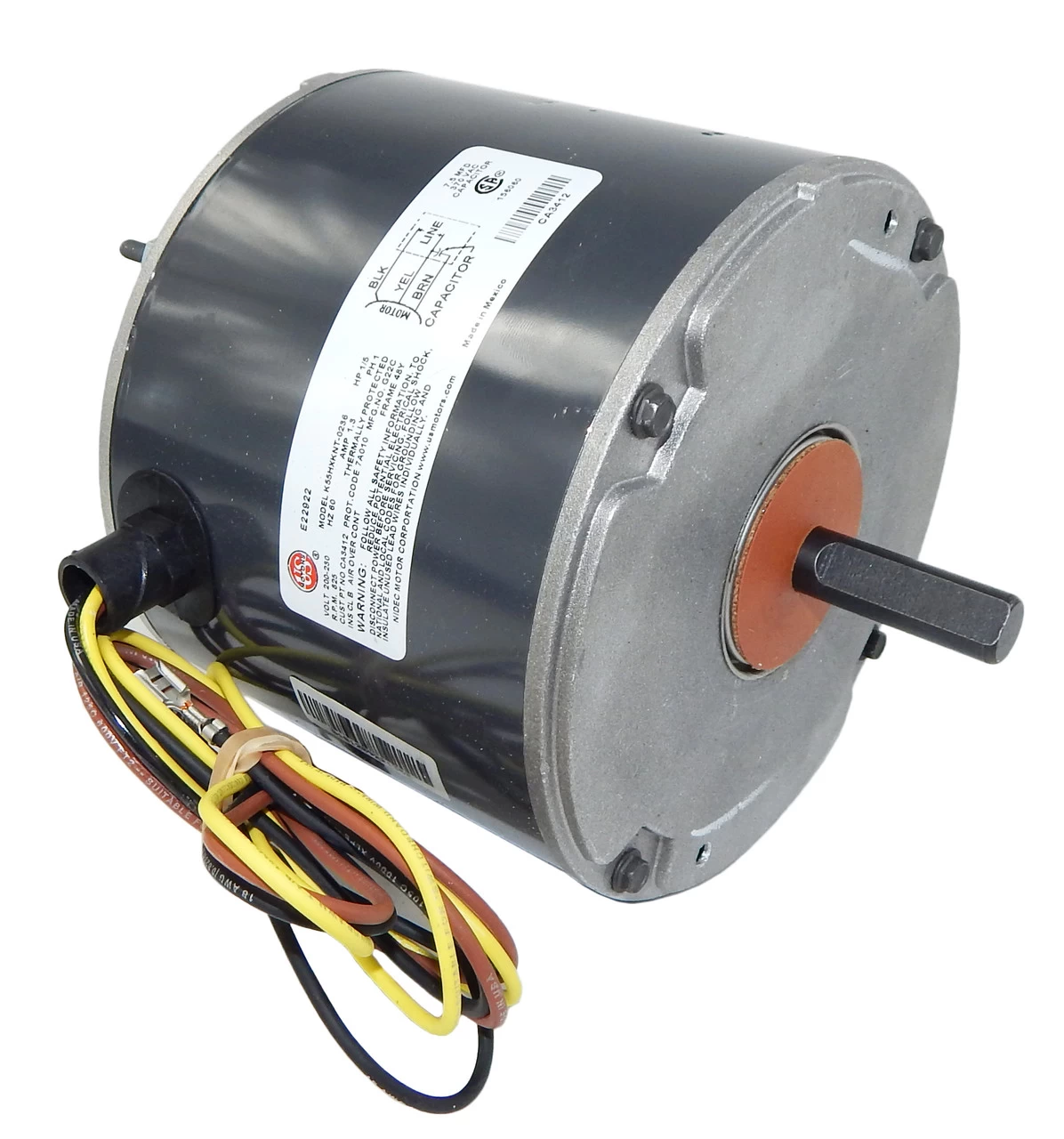

CA3412 Nidec | 1/5 Hp 825 RPM 1-Speed 208-230V, Carrier Condenser Motor (HC37GE208)

Carrier A/C Condenser Replacement Fan Motor

• 1/5 hp, 208-230V, 1.3 amps
• 825 RPM, 1-Speed
• 7.5 MFD/370VAC Capacitor Required

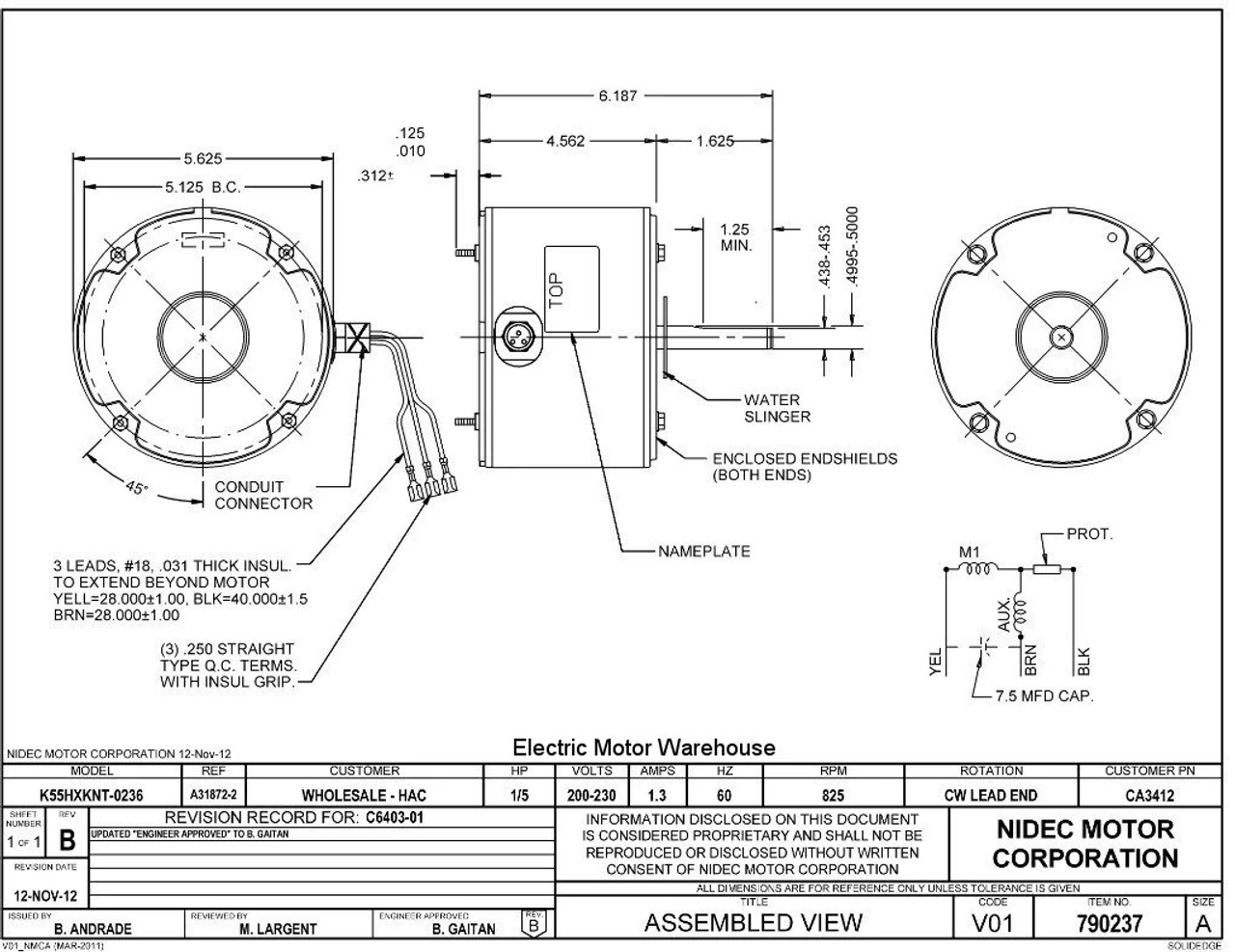

• Shaft 1/2″ x 1.625″
• Rotation: CCW Shaft End
• Body Diameter 5-5/8″
• Motor case length 4.56″
• Sleeve Bearings
• 40″ leads, Automatic Thermal Reset
• 40° Ambient Temp
• TEAO Totally Enclosed Enclosure
• 1 Year Manufacture Warranty

Suggested replacement reference for:
Carrier HC37GE208, HC37GE208A, HC37GE210
GE Genteq 3S003, 5KCP39GFY917S, 5KCP39HGZ037S
Nidec US Motor K55HXKNA-0219, K55HXKNT-0236, K055KNT0236013B

We recommend replacing the run capacitor
Please use this link to help select a new capacitor
