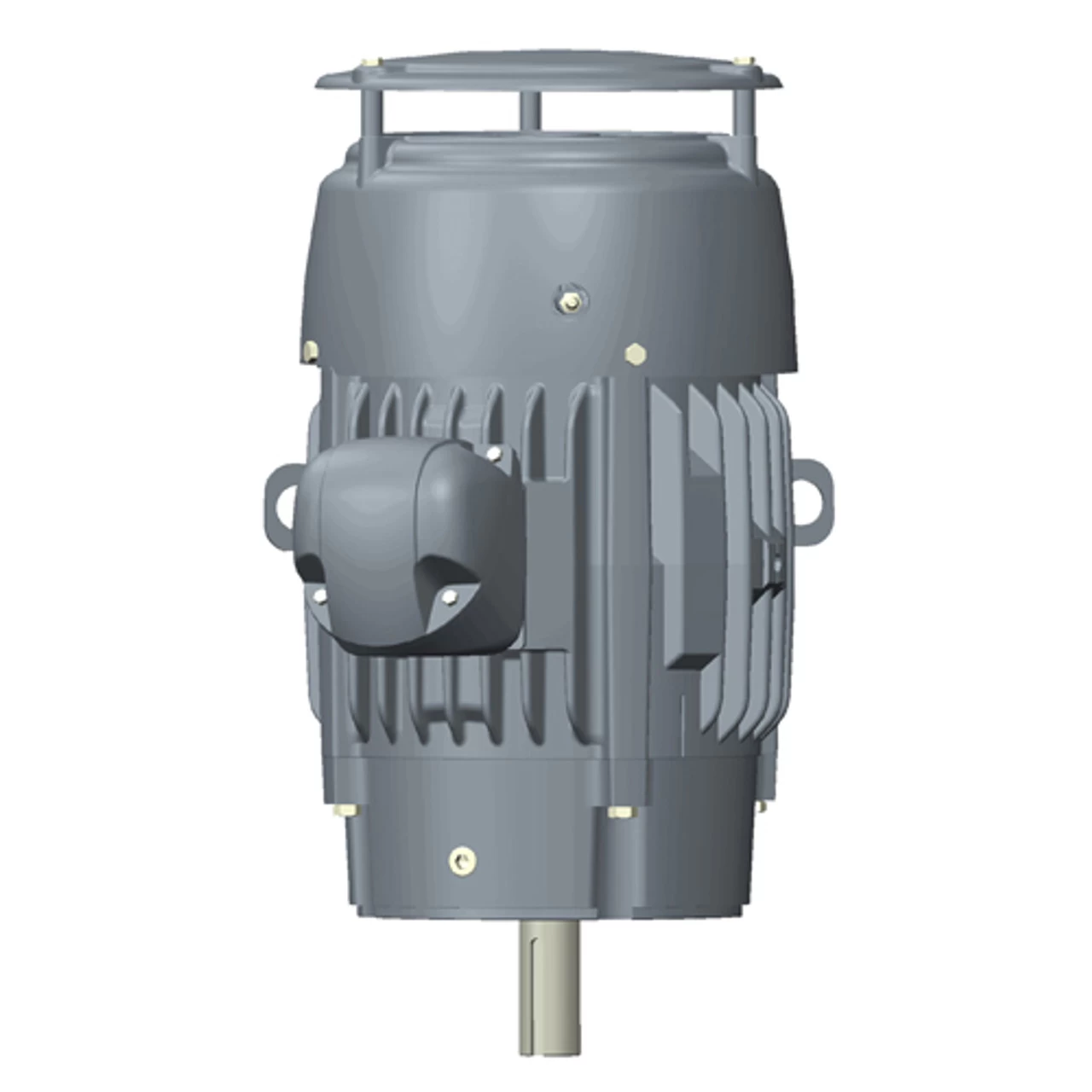

C1P1DCR Nidec 1 Hp 3600 RPM 143TC Frame (Vertical) 208-230/460V TEFC 3-Phase C-Face Motor
Original price was: $387.00.$98.99Current price is: $98.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1 hp 3600 RPM, 2.9-2.7/1.4 amps 208-230/460 Volts 50/60 Hz Three Phase Motor
- NEMA 143TC rolled steel frame, Keyed Shaft 7/8″ Diameter x 2 1/8″
- Service Factor: 1.15, Overload protection = None
- Vertical C-Face Mount, Regreasable Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
Three phase motor designed for chemically corrosive environments with either 50 or 60 Hz power. Inverter Duty. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DW64
