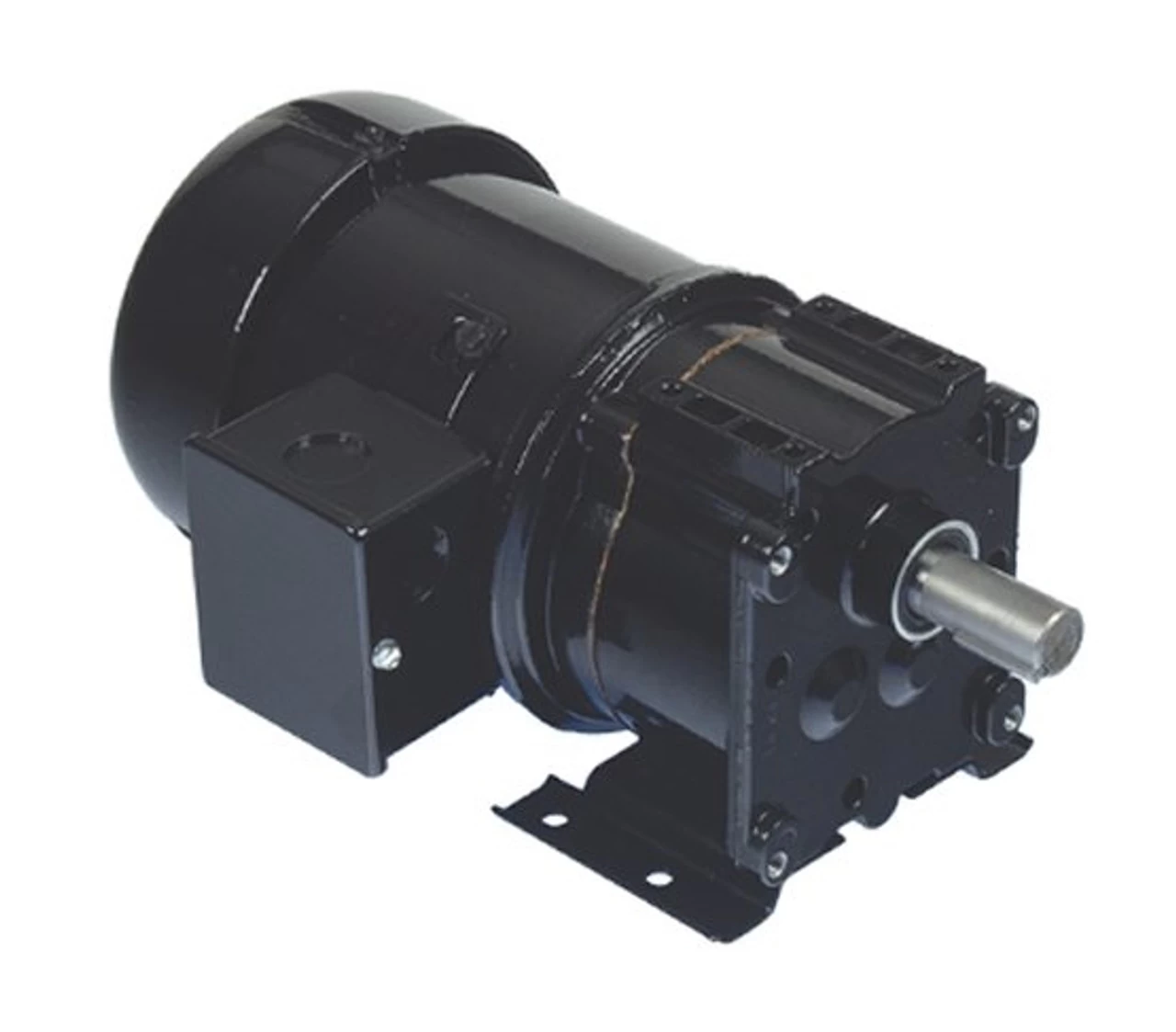

Bison 017-247-0216 Inverter Duty Gear Motor 8 RPM 1/4 Hp 230V

• 247 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
• Torque 310 inch pounds; Over Hung lbs. = 412
• Rotation = Reversible; Junction Box Included
• 1/4 hp, 8 RPM, .08 amps; 230V; 6-90 hz.; Three Phase
• TEFC Enclosure, Keyed Shaft, Ball Bearings

Motor: Meets NEMA MG 1 sct 31; Powder-coat gloss black; Motor Bearings: Double shielded ball; Thermostat: Signal type; closed. UL/CUL recognized. Gearhead Specifications: Precision machined die cast aluminum ; Lubrication: Lifetime oil bath; Hardened steel shafts; Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel, 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. One Year Manufacture Warranty. Opening motor voids the warranty.
