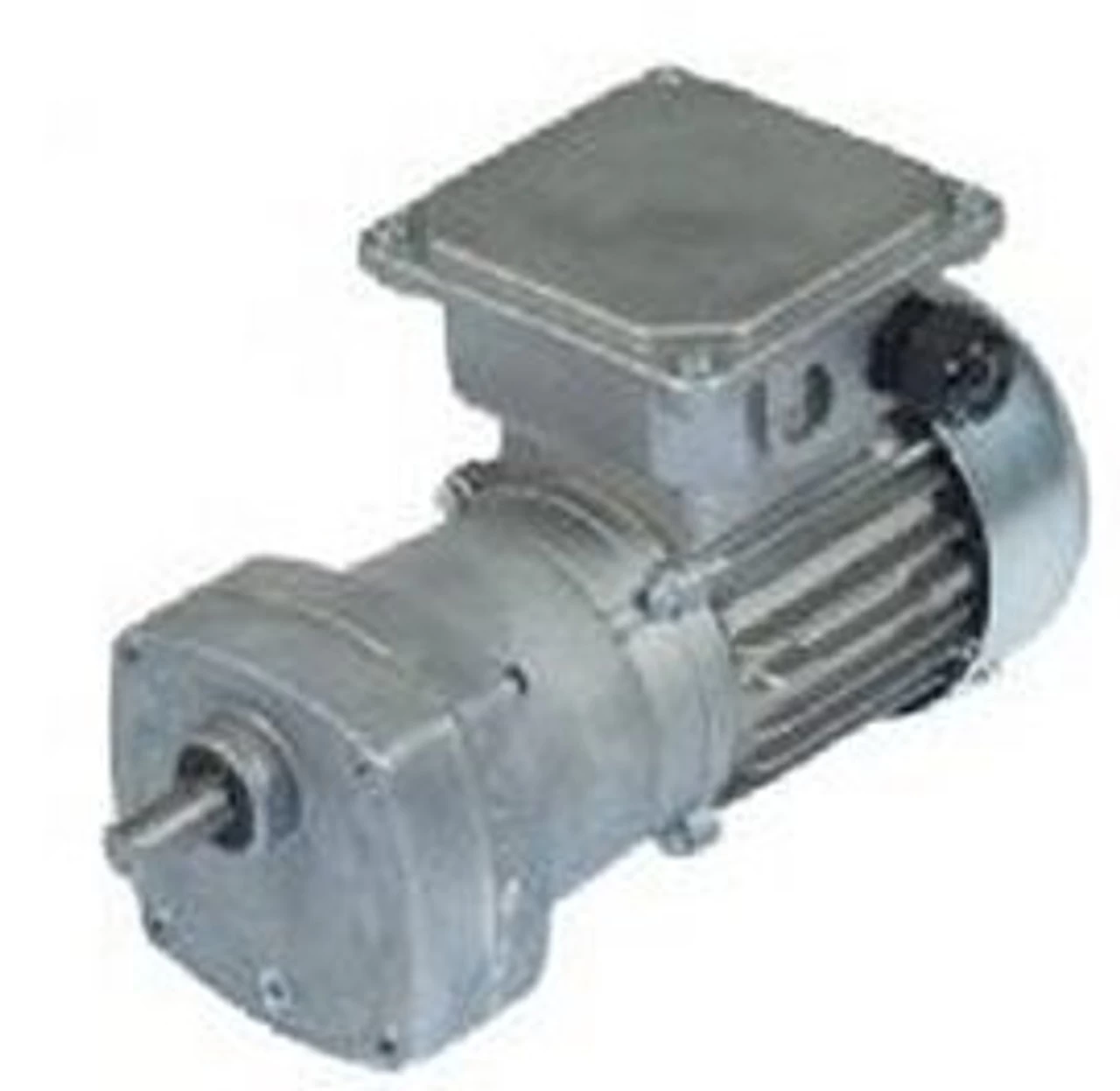

Bison 017-175-0013 Gear Motor 1/12 Hp 122 RPM 230/460V 60/50HZ.

• 175 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
• Torque 38 inch pounds; Over Hung lbs. = 220
• Rotation = Reversible; Junction Box Included
• 1/12 hp 122 RPM, .60/.35 amps, 230/460V 50/60hz. Three Phase
• TENV Enclosure, Keyed Shaft, Ball Bearings

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty.
