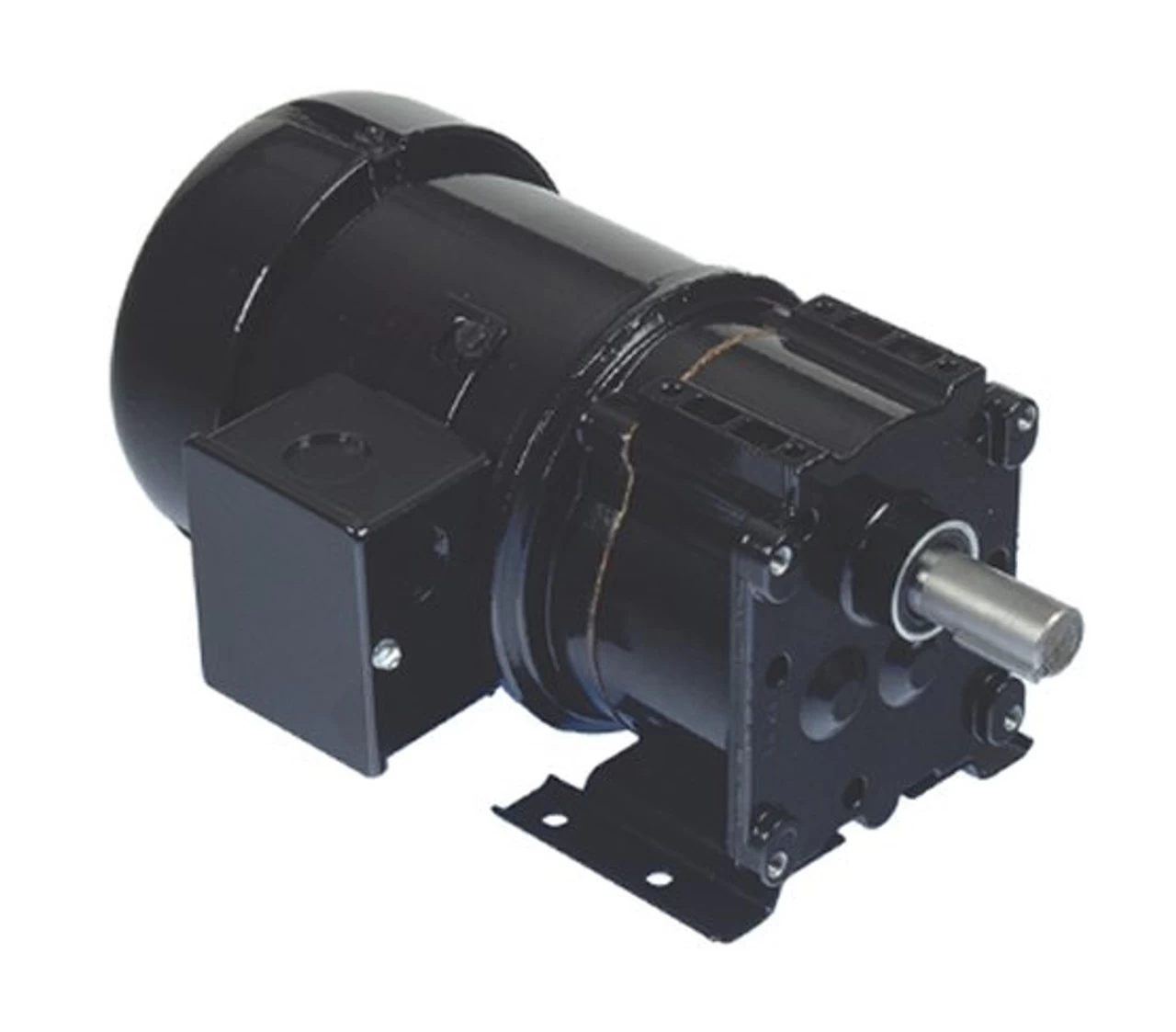

Bison 016-200-8050 Gear Motor 1/15 Hp 30 RPM 115/230V 60 HZ.

• 200 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
• Torque 130 inch pounds; Over Hung lbs. = 175
• Rotation = Reversible
• 1/15 hp 30 RPM, 1.2/.63 amps, 115/230 VAC
• TEFC Enclosure, Keyed Shaft, Ball Bearings

Motor Type: Permanent Split Capacitor. Gearhead Specifications: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel. 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. Dayton Equivalent = 4Z519. One Year Manufacture Warranty. Opening motor voids the warranty.
